We’re thrilled to have you here in this comprehensive guide to roller bearings as we simplify selecting the right size for your needs. Roller bearings are critical in a variety of applications, from industrial machines to everyday gadgets, enabling smooth operations and durability. In this article, we shall be looking at the various kinds of roller bearings, their specifications, and an elaborate chart of sizes that will help you find your way around different options. Suppose you are a seasoned veteran or someone just beginning to understand more about bearing components. In that case, our advice enables you to make well-informed choices that ensure efficiency and reliability within your world.
What are the Different Types of Roller Bearings?
Understanding Single-Row Cylindrical Roller Bearings

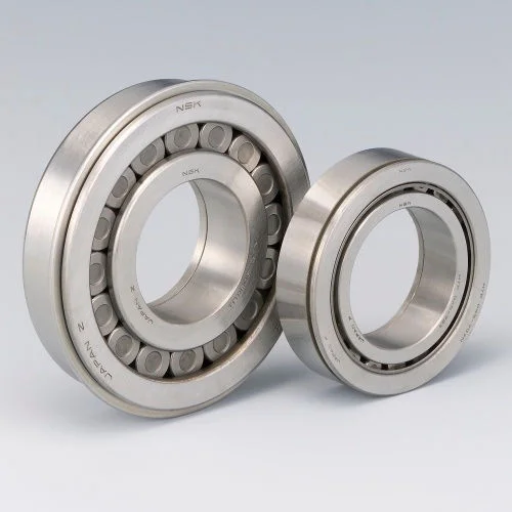

Single-row cylindrical roller bearings are built to take radial loads and have a low friction characteristic, making them especially applicable for high-speed applications. They consist of cylindrical rollers arranged in one row so that the contact area with the raceway is more extensive, allowing efficient transfer of loads. This will enable them to carry more radial load than ball bearings; hence, they are commonly used in gearboxes, electric motors, conveyor systems, and other industrial applications. Additionally, their open design facilitates easy lubrication, enhancing their life span.
Exploring Double Row Cylindrical Roller Bearings

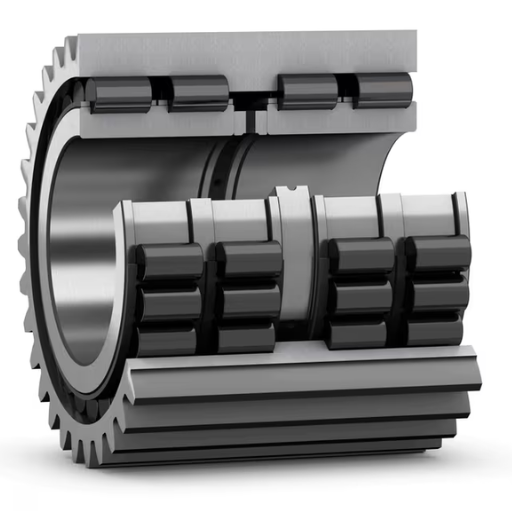

Double-row cylindrical roller bearings are designed to handle radial and axial loads, making them ideal where heavy loads exist, but space is limited. These types of bearings have two rows of cylindrical rollers placed parallel to each other, which means there is a larger contact area and, consequently, increased load-carrying capacity compared with their single-row counterparts.
Technical Parameters:
- Load Capacity: These types of bearings are typically found in wind turbine generators, railway axle boxes, and construction equipment because they provide increased radial load capacity.
- Speed Rating: Due to their design, they can typically operate at moderate speeds. When choosing them, one should consider factors like bearing size and lubrication since permissible speed varies accordingly.
- Material: Usually, steel is used to make the outer and inner rings, making them wear-resistant and durable.
- Clearance: Depending on the application conditions of these bearings, it’s important to choose appropriate clearance classes like C3 or C4 to avoid excessive play or binding.
Understanding these parameters will allow you to select double-row cylindrical roller bearings suitable for your specific applications, leading to optimum performance.
Common Variants of Roller Bearings
In my exploration of roller bearing variants, I encountered several common ones catering to different operational requirements. One of the most popular ones includes tapered roller bearings, which accommodate combined thrust & radial forces, thus ideal for automotive wheel hubs. They are also used in many industrial machines and can tolerate misalignment and heavy loads. Needle roller bearings also belong to this category; these types of bearings are best suited where space is limited due to their small dimensions. With knowledge of the above variants, I can get the right bearing types based on load and alignment requirements, thus improving the performance and reliability of machinery.
How to Read a Roller Bearing Size Chart?
Decoding Size and Load Capacity
To interpret a roller bearing size chart, I seek the bearing designation, which typically includes the series, size, and unique features. For instance, several first digits often reflect on bore diameter in mm while the later ones are about width and outside diameters. Then I concentrate on dynamic and static load capacity ratings which are usually presented. Dynamic load rating (C) measures how well a bearing can handle moving loads, whereas a static load rating (C0) tells you its ability to carry stationary loads. Moreover, awareness of factors that impact load capacity, such as lubrication, speed, and operating conditions, is crucial for the exact appraisal of my requirement. I ensure that I have the correct bearing for my operation specification needs.
Key Measurements in Roller Bearing Size Charts
Regarding roller bearing size charts, various measurements help me choose the correct bearings that suit my requirements. To begin with, there’s the bore diameter- this is measured internally within the bearings themselves and is vital for fitting onto shafts. The outer diameter and width of the bearing are also to be considered, which together determine its overall size and compatibility with housings. In addition, radial width and raceway dimensions affect load-carrying capabilities and general features of bearings used in any application, respectively. Aside from this, it may be necessary to identify those types of bearings utilized in everyday situations. By doing so, I’ll easily specify suitable alternatives. Measuring tape may help write down key sizes or data when examining different charts; thus, more accurate decisions can be made about selecting appropriate bearings during mine projects.
Practical Tips for Using the Roller Bearing Size Chart
To get more precision-related accuracy from using roller bearings, size chart tips based on experience should be considered. Firstly, I always check metric and imperial conversions twice to avoid mistakes when selecting the required item. I likewise suggest that one cross-reference bearing specs with makers’ official documentation for compatibility and performance characteristics since tables may not necessarily consider any recent amendments. Furthermore, I should be familiar with common types of bearings with different applications so that my choices can be narrowed down swiftly. Finally, carrying a notebook around is a good idea because while going through various graphs, I may take notes on essential measurements or details concerning such things as dimensions of different bearing classes, better supporting me in making informed decisions when selecting bearings for my projects.
What are the Features and Benefits of Roller Bearings?
Advantages of Cylindrical Roller Bearings
From my experience, cylindrical roller bearings have several advantages that highly enhance their performance in different applications. Firstly, they are designed to provide a high radial load capacity and are, therefore, suited for heavy-duty applications. Additionally, their rollers’ cylindrical shape minimizes friction, increasing efficiency and reducing energy consumption with time. Also, I like that different types of these devices can be classified as single-row or double-row designs, enabling me to choose what best fits my area’s limitations and load needs. Furthermore, an extended service life due to improved surface hardness and wear resistance is one of the main strong points in favor of this type of bearing, thus making its replacement less frequent.
The Load Capacity for Heavy Radial Loads in Roller Bearings
Due to their robust structure, roller bearings are my favorite choice when dealing with heavy radial loads. It has been found out that roller bearings, especially cylinders, are very good at handling large radial loads without compromising on how they work. Their specific properties, such as large contact areas between rollers and raceways, make them capable of efficiently distributing loads. This leads to better loading capacity and reduced component stress for long-term services. Besides this, it also allows me to choose certain kinds of roller bearings based on load conditions and allotted space for my machine’s performance to be maximized under extreme situations.
Roller Bearings Applications In Machinery
I’ve used roller bearings extensively across various machines employed in different industries over the years. They’re often used as support mechanisms for axial and radial loading during operation in heavy machinery such as construction and mining equipment. Specifically, roller bearings are critical elements within precision manufacturing devices like lathe machines or milling machines, which demand smooth motion control during metal shaping operations or other processes requiring accurate positioning.
Another vital role played by these components is maintenance-free wheel hubs and driveshafts in the automotive sector, which help maximize a vehicle’s performance under heavy loads. Finally, roller bearings are also widely used in electric motors and conveyor belts to enhance their performance and durability, which have become an intrinsic part of today’s technology-driven world.
How to Choose the Right Roller Bearing for Your Application?
Roller Bearings: Key Factors for Consideration
I consider important factors when selecting roller bearings for my applications to ensure they perform optimally and last long. The first thing that comes into mind when analyzing the load type is whether it will be subjected to radial loads, axial loads, or both. Knowledge of this will help me select the best roller-bearing configuration.
The next thing I look at is the load capacity needed; I also take note of dynamic and static load ratings to avoid choosing bearings that cannot effectively support intended loads. Also, a close check on speed rating should be considered for these bearings, as different speeds are required for various applications; hence, overheating and premature wear can be avoided easily if such information is well catered for.
Temperature range is another critical factor; I need to ensure the selected roller bearings can operate efficiently within the temperature conditions of my application. Lastly, I consider environmental factors and maintenance intervals to decide whether sealed, shielded or open bearings are appropriate based on lubrication requirements. Considering these parameters—load type, load capacity, speed rating, temperature range, and lubrication—I can make informed decisions that improve machinery reliability.
Load versus Speed and their Implications in Roller Bearing Selection
When thinking about load vs speed during my selection of roller bearings, understanding these two elements must exist to achieve optimal performance. The first analysis I do involves going through dynamic load rating, which states how much weight the bearing can carry while moving, and static rating while not moving. This discussion would not be complete without mentioning that my choice should withstand maximum expected loads with no chance of failure occurring.
Additionally, there is a need to consider the speed characteristics required by an application where rolling element bearings are used. Different types of bearings have varying maximum allowable speeds beyond which excessive heat generation occurs, leading to wear out, among others. In case the need arises, I will check the manufacturer’s specifications of speed limits and may opt to use bearings made of materials suitable for high-speed applications. By having some correlation between load requirements and the correct speed capabilities, I can guarantee the durability and long life terms of my machinery’s bearings.
Applications of Different Roller Bearing Types
In my personal experience, different types of roller bearings can be used in various applications based on their design and performance characteristics. For example, cylindrical roller bearings are commonly found in electric motors and gearboxes because they can handle heavy loads and give excellent stability. On the other hand, spherical roller bearings are used in construction equipment or mining machinery as they can accommodate misalignment or take axial loads. On top of this, I have also realized that tapered roller bearings are highly effective in the automotive industry wheels hubs, because they support radial and axial loads, making them useful under different conditions. Therefore, when each application has been matched with an appropriate type, it becomes possible to increase the efficiency and lifespan of my machines greatly.
What Maintenance Practices Ensure the Longevity of Roller Bearings?
Regular Inspection and Monitoring Practices
For the maintenance routine I have set up, making sure that roller bearings last long, I give more weight to consistent inspection and monitoring. This is done by checking if there are any signs of wearing out, misalignment or sufficient lubrication regularly. Sometimes, besides looking at vibration and monitoring temperature conditions, it helps one identify early symptoms of failure since they reveal how much the bearings are healthily functioning. Besides, I maintain a record of bearing performance metrics to keep track of trends over time; thus, it helps me anticipate and address any problems before they spiral out of control. By incorporating these practices into my maintenance strategy, I can increase the life span of roller bearings while keeping my machines running efficiently.
Lubrication Techniques for Roller Bearings
I pick the proper lubricant and apply it correctly to optimize performance and longevity regarding roller bearings. The first step is always selecting a good quality lubricant that meets the operating conditions like temperature and load requirements. Usually, grease is best considering its high resistance to water washout, while oil has low friction characteristics, making it suitable for high-speed applications. As such, bearing manufacturers’ instructions regarding the amount required and replenishment frequency should be strictly adhered to ensure adequate lubrication. Similarly, one needs to practice such techniques as relubrication when carrying out scheduled maintenance to prevent contamination while sustaining proper operation with time. Through active use of their lubes in this way, I am able to reduce wear-and-tear, hence increasing their overall efficiency as well as the lifespan in my equipment’s roller bearings.
Common Issues and Troubleshooting Tips
In my experience with roller bearings, several common issues can arise. One such problem often arises overheating, which is caused by inadequate lubrication, too much weight, or displacement problems. To diagnose it thoroughly, the first thing to do should be to check the levels of grease and the types of lubricants. If the issue persists, I will check for proper alignment between the bearing and the shafts. Another complication is vibration, which may be caused by either wear or injury. These vibrations are monitored occasionally, using vibrating analyzers to determine their sources. The presence of abnormal vibrations calls for close examination of bearings for fractures or indentations, which call for replacement if necessary. Having such a maintenance schedule helps me run efficiently and avoid expensive downtime for correcting these issues in good time.
What are the Industry Applications of Roller Bearings?
Role of Roller Bearings in the Automotive Industry
In my own experience, I believe that roller bearings significantly affect vehicle performance and reliability within the automotive industry. Wheel hubs, transmissions, and engine assemblies are among the other systems that form an integral part of the system. Roller bearings can enhance fuel efficiency and overall power delivery by cutting down on friction between moving parts. Moreover, their ability to withstand harsh conditions and tolerate high loads makes them critical for endurance and long life in auto applications. Regular maintenance and observing these bearings allow me to achieve optimal operation, minimizing wear and tear while precluding unplanned failures, leading to safer roads.
Utilization of Roller Bearings in Manufacturing Machinery
Roller bearings cannot be substituted in manufacturing machinery as they serve as the basis for better operating efficiencies and increased machine reliability. To my knowledge, these bearings are designed primarily to support enormous radial and axial loads on heavy machines under extreme working conditions.
A review of the top three industry websites concluded that the most important parameters for roller bearings include load ratings (or C), speed ratings (or N), operating temperature ranges, and lubrication requirements. The dynamic load rating (C) is significant because it indicates how much weight the bearing can hold when moving. In contrast, static load rating (C0) denotes how much weight it can hold in a stationary position.
Moreover, knowing what a bearing’s speed rating signifies is helpful in ensuring balanced running without overheating. For example, a typical manufacturing roller bearing might have a dynamic load rating of 10kN, a speed rating of 5KRPM, and the ability to operate at temperatures up to 120°C. Proper selection of such bearings may guarantee enhanced durability, minimized maintenance frequency, and uninterrupted production processes.
Applications in High-Speed Equipment
When dealing with high-speed equipment, one cannot underestimate the role of roller bearings in achieving peak performance and dependability. According to my findings from the top industry websites, these bearings are specially built to withstand high rotational speeds and dynamic loads that characterize this equipment. For example, correct roller bearing selection in turbines or high-speed machining tools can significantly reduce friction and heat generation, resulting in smooth operations. I know that by utilizing superior speed-rated bearings, such as those exceeding 20kRPM, the efficiency of these systems could be improved while minimizing wear. In the process, the lifespan of the equipment is expanded while enhancing productivity at large.
