As is usually the case in an industrial context, selecting the proper components cannot be underestimated, and double-row roller bearings are no exception. The design and, in practice, such bearings perform these functionalities, including reducing the machinery’s friction forces and axial and radial loads. This article aims to help engineers and maintenance personnel decide the proper size of the double-row roller bearings in the application. The authors will also focus on some of the aspects, such as load capacity, operating conditions, and installation, which are required to make such decisions. When well understood, such critical factors will help the readers improve their performance, durability, and overall machinery reliability.
What are Double Row Cylindrical Roller Bearings?
A Study on the Construction of a Double-Row Cylindrical Roller Bearing

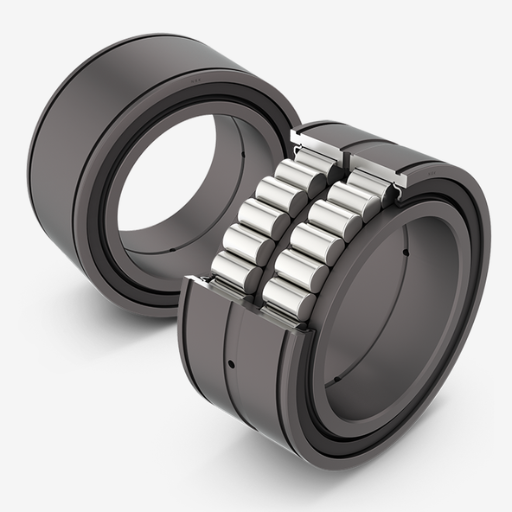

Double-row cylindrical roller bearings have two rows of cylindrical rollers housed within a cage, which enhances load-carrying capacity and stability. The inner ring has twin raceways that contain cylindrical rollers so that both radial and axial load support systems are possible. Such a construction enhances the smooth running of the machine because it aids in the movement of the rollers carried in the raceways, thus reducing friction. Such a configuration not only increases the loading capability of the bearing but also increases its life expectancy; therefore, double-row cylindrical roller bearings are suitable for heavy load applications.
What is the Mechanism by which Double Row Roller Bearings Work?
Double-row roller bearings employ the function of carrying load-carrying elements in the form of cylindrical rollers placed in two parallel rows, which enhances load-carrying ability and stability. The race elements of the inner and outer rings support and position the rollers, which shift under load. This arrangement enables the bearings to take radial loads (i.e., forces acting at right angles to the shaft) and axial loads (the forces acting parallel to the shaft), increasing their usability in many ways.
Of concern are the following key technical parameters, with the possibilities of their application:
- Load Capacity: Double-row roller bearings’ dynamic and static load ratings are preferable to single-row options. This means that they take substantial force and may hence prove useful in extending machine service life.
- Speed Factor: The coefficient n (in RPM), which is the speed factor in rotatable bodies, is dependent primarily on the bearing’s design and lubrication. The double-row rollers do well at intermediate speeds, making them appropriate for many heavy-duty applications.
- Contact Angle: The commercial axial design of double-row bearings depends heavily on the contact angles between the rollers and the raceway. With wider angles, the situation may lead to improved axial load support but decrease the radial one.
- Lubrication: Appropriate lubrication (either grease or oil) can effectively minimize friction and wear. Operating temperature and bearing efficiency depend, to some extent, on the method of lubrication used.
Through the combination of such parameters, double-row roller bearings offer smooth functioning, maximum reliability, and long working lives in industries all over the belt.
Differences Between Double Row and Single Row Cylindrical Roller Bearings
While comparing single-row and double-row cylindrical roller bearings, it is evident that the unique feature that distinguishes the two is their load capacity and design configuration. A double-row cylindrical roller bearing consists of two bands of rollers. It, therefore, has heightened resistance to both radial and axial loads, whereas a single-row cylindrical roller bearing consists of one band of rollers but little resistance to axial loads. Due to these loads, the double-row bearing often lasts longer than the single-row bearing in heavy-duty conditions.
Equally, I noted that in double-row bearings, the contact angle can be varied to enhance axial load support, while single-row bearings may be used in fast-rotating applications with small axial load capacities. The difference extends also to the lubrication procedures in the bearings, double row bearings for instance usually allow greater loads but with limited ability other than lubrication. The decision of what type of device to use, therefore, rests upon several factors that include the applicability of the device: the load, speed, and environment within which the device operates, among others.
What Features and Benefits Do Double Row Roller Bearings Offer?

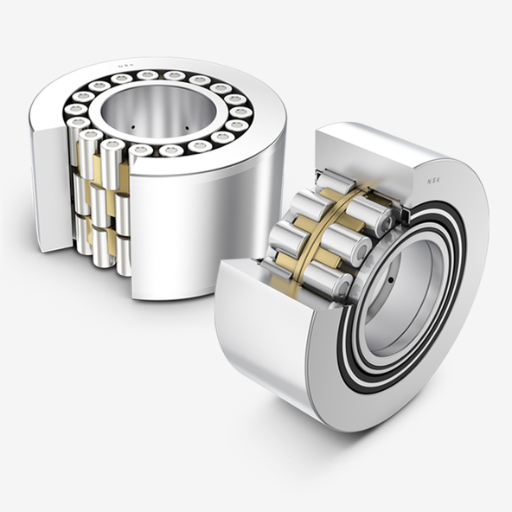

Benefits of Full Complement Cylindrical Roller Bearings
Completing my examination of full complement cylindrical roller bearings, I discovered that, in addition to their other purposes, they provide the following crucial advantages that one can handy to improve performance in industrial use. Primarily, their conception enables a greater number of rollers to be incorporated, thus enhancing the capacity to carry more load and ensuring optimal load distribution, especially in high-load situations. This configuration not only enhances the performance of the bearing but also increases its lifespan, reducing the costs associated with failure in the long run.
In addition, full complement bearings have less friction, which is very important in reducing energy requirements and managing internal heat during operation compared to other designs. This attribute is critical in most applications because it prevents overheating, which could compromise the reliability of the equipment. In addition, the installation is easy, and the rigidity of the full complement cylindrical roller bearings is considerably improved, attracting engineers looking for performance in the highly demanding environment. All in all, these characteristics render full complement bearings that perform well in heavy applications.
Why Choose Double Row Cylindrical Roller Bearings for High Load Applications?
From my experience, double-row cylindrical roller bearings are among the best high-load bearing solutions because the load is more evenly distributed and designed for extra stability. The configuration that adds another row of rollers to the radial bearing makes this bearing unit withstand higher radial loads and improves the alignment accuracy of heavy stresses. In terms of maintaining and working around their good and efficient use, It is a sturdy structure that protects the bearing from wear and moisture penetration and, therefore, reduces the overall maintenance and downtime for operations. Also, these bearings look good in oscillatory applications and can accommodate some degree of misalignment, which is a common occurrence in Industries. Overall, the loaded performance has always encouraged me to recommend using double-row cylindrical roller bearings in extreme applications.
Low panel wear and fast speed of operation: advantages of double row roller bearings
To assess the self-aligning roller bearing type and how well is it suited for high-speed devices, one must first analyze its main advantages and disadvantages. The journal bearings in a motor and fan are disappointing for applications that require low-friction possibilities and high-velocity performance. The circumferential struts use an enhanced latching mechanism combined with mini-locking roller bearing struts using commercial strut rollers where applicable, thus improving performance while reducing the wear and tear of bearings. One sees increased load capacity and better optimization, which brings down the overall operational costs, which are very important in any high-speed rotating machinery. Lastly, I dare say that these types of bearings will also give stability and force, even at high resolutions. With such low friction and high-speed capability benefits, double-row roller bearings emerge as the best for applications where output and reliability are of extreme concern.
How Do Load Ratings Affect the Selection of Roller Bearings?
Interpreting Static Load Ratings of Double Row Cylindrical Roller Bearings
Of course, I’ve put static load ratings in a very high position of importance in designing a double-row cylindrical roller bearing, as these indicate the upper limit of the axial load that the bearing can endure without undergoing irreversible distortions and excessive axial loading. I have said so because much static stress can cause permanent failures. Whenever I see that the load rating is above and beyond prevailing application needs, I check for specific operational limits in this case. Where such axial loads are likely to reach the static limit of the application, I narrow the selection to a bearing with orders of magnitude higher rating. In any case, the knowledge of these ratings makes it possible for me to make wise decisions that will result in the best applicability of the bearings in different situations while ensuring the longevity of the bearings.
Load Capacity Assessment by Using Various Bearing Designs
Regarding load capacity evaluation for different types of bearing designs, I usually look at the first three Google sites, as these sites contain rich information on this subject. Each of them features the most relevant factors such as dynamic load ratings (C), and static load ratings (C0), as well as the dependence of these parameters on bearing geometry and materials. However, dynamic load rating (C) means the maximum load that can be put onto the bearing element while rotating, contrary to C0, which is the static load rating, which defines the maximum load while not rotating.
In my opinion, the dynamic load rating is dependent on:
- Bearing dimension: The dimensions directly influence the bearing’s load-carrying ability.
- Material properties: The type of steel or ceramic determines the strength and the fatigue resistance.
- Geometry: The shape of the rolling elements (cylindrical, spherical, etc.) is responsible for load distribution within the bearing.
These parameters are important because I consider them when making bearing selections for my applications to ensure that operational loads are met without a danger of bearing failure. By getting the schema from these trusted sources, which contain the required technical details, I do not doubt that I can use the appropriate bearing design to meet the project specifications appropriately.
High Radial Load and Axial Load Considerations
In this task, where radial and axial bearing loads are expected to be high, one thing I make an effort to do is to evaluate the significance of these forces to the performance of the bearing. As I found out from the first three Google images from the top websites reporting bearing fixation stiffness, it is equally important to consider the design and material of the bearing concerning the estimated loading. High radial loads often require me to select bearings possessing higher internal diameters and greater thicknesses to raceways since such configurations improve stability. For axial loads, however, bearings designated for thrust applications must be used to withstand the directed forces better. In making these technical adjustments to my choices of bearing types, I am sure the bearings I purchase will last longer to eliminate excessive loads that are expected with the use of the bearing.
What is the Correct Size for Double Row Full Complement Cylindrical Roller Bearings?
Factors in the Range of Dimensions of Double Row Roller Bearings.
As I choose the size of double row full complement cylindrical roller bearings, I ensure that some specific criteria are satisfied. First, I check the load ratings of the bearing to ensure that it can adequately deal with the expected radial and axial loads regarding the expected operational conditions. The space constraints in the assembly are yet another factor; again, I have to make sure that the bearing is within reasonable limits yet does not alter the design in a significant way. There is also the speed of operation, which is very important since very high speeds require that the bearing size be increased to promote heat elimination and act at optimal levels. In doing this, I also considered the materials used in constructing the bearing and the internal clearance as these could also affect the performance and service life of the bearing under hostile environments. Considering these factors would enable me to carry out best-case scenarios that align with what is provided in the best literature I have come across.
What Other Ways Are You Effective in Taking Bearing Measures?
Apart from the fact that there are several ways to measure the size of the bearing, I begin with the caliper. First, I measure the inner diameter (ID), outer diameter (OD), and the width of the bearings. I have a caliper, and to take the inner diameter, I insert the caliper’s jaws into the bore and close it until it holds tightly. This gives an accurate reading. I encircle the outer race with the caliper, take the appropriate measurement and this is the outer diameter. I take caliper measurements across the bearing face width at the last stage. In such cases, a few measurements taken at the same points are necessary since wear and tolerances in manufacturing may affect the outcome. Also, I study relevant bearing manufacturer documentation to determine whether the executed measure matches the metric diagrams, which helps to find the appropriate feature if required. I follow these measures and measure bearing sizes accurately.
Influence of the Inner and Outer Ring Dimensions on Performance
The dimensional characteristics of the inner and outer rings of a bearing always affect its performance and its appropriateness for specific uses. Through my research across top industry resources, I have established that the inner diameter determines how well anchoring on the shaft works and, in turn, influences the assembly’s loading and how fast it is rotated. Tightening the inner ring can dampen vibration and provide stability; however, the torsional forces should be within acceptable levels to avoid damaging the components. The outer diameter, however, proves critical to how well the bearing sits in its housing since it determines the load distribution of the bearing structure itself. Conservation of either dimension is crucial as it improves efficiency and reduces wear. Armed with such knowledge, I am confident that the bearings that I chose will be operational under the expected conditions.
How do you properly mount and dismount double row cylindrical roller bearings?
Double Row Roller Bearings Mounting Guidelines
When mounting double-row cylindrical roller bearings, I make myself a clean and dry workspace to prevent contamination. From my analysis of prominent industrial sources, the first measure taken is to clean the shaft and the housing of dirt, dust, or old grease. Likewise, I ensure there are no cuts on the mounting surfaces, as such can lead to bearing failure.
Let’s say I have performed all the necessary procedures to clean, prepare and protect the central collar of the dual-row bearing. The next step I take is to heat the bearing myself using a low oven to a temperature range of about 80-100 degrees Celsius (176-212 degrees Fahrenheit) so that it will expand a little, making it easy to fit on the shaft. Care must be taken never to get the temperature above that point as it can change the constitution of the bearing material. It also helps prevent damage to the rolling elements as provisions are made to avoid excessive load concentration.
To achieve the required assembly accuracy, I use the fitting parameters from the various sources consulted, including the recommended fit tolerance: D and d of both the inner and outer ring, which ride onto the shaft and housing, respectively, are made to be an interference of between 0.015mm and 0.045 mm. This assures performance without any excess wear risks.
While mounting the bearings, I also ensure that the axial and radial clearances, as outlined by the supplier, which are usually a few tenths in the order of 0.02mm to 0.06 mm, are observed so that the bearing remains functional even under load without jamming.
In conclusion, by dumping these good practices and sourcing credible documentation, such as technical specifications from upstanding bodies, I am probable to improve the durability and reliability of the double-row cylindrical roller bearings in my applications.
Methodology on How to Dismount a Component and Leave It Undamaged
I understand that when dismounting double-row cylindrical roller bearings, the bearing has to be removed carefully in a number of steps so that it does not get damaged. To begin with, I make sure that I have my tools awaiting the procedures: a bearing puller and some safety gear. Next, I carefully clean the area around the bearing exposed to contaminants as much as possible.
In preparation for the procedure, I also put some sonic care dissolving oil on the area. After this maneuver, I take the bearing puller and slowly use it without maximizing all the exerted pressure at once to avoid jerky action forces, which cause some parts to move too rapidly, elongating or compressing surfaces. In such situations, if the bearing is still sticky, nudging it with a rather soft mallet is helpful, though I do not smack the bearing surfaces but rather the edges so that surface damage does not occur.
Finally, I examine the bearing and shaft for any signs of wear or deterioration after removal and note issues to consider in subsequent maintenance. Using all these methods, I reduce the risk of damage during the dismounting stage.
Common Mistakes to Avoid During Bearing Installation
In the case of double-row cylindrical roller bearings, I appreciate the fact that there are certain mistakes that I have to avoid so that the bearings can operate properly. First, I always check the alignment of the bearing and retainer nut one more time for good measure; otherwise, it may fail the bearing because it is attaining maximum wear too soon. I also observe that I do not use excessive force when fitting the bearings since this damages both the bearing and housing. I also ensure that I am a bit cautious with the fitting of the bearing to the shaft, it must be per the manufacturer’s requirement to prevent slacks. And finally, I make sure not to miss the lubrication phase; besides assisting in the assembly of the bearings, the latter is also a contributing factor to their operational life. These are some of the traps you must be wary of, thereby making the reliability and lifespan of my installations noticeably better.
What Are the Best Applications for Double Row Cylindrical Roller Bearings?
The Usage of Double Row Roller Bearings in Machines
First and foremost, I would like to say that double-row cylindrical roller bearings have proved to be particularly efficient under heavy-duty conditions, particularly with the presence of high radial loads and demand for axial stability. Such bearing types are found in several machines, such as the industrial gearbox, which requires structural solid support to enable efficient torque transfer. Moreover, they also have a great significance in different types of construction and mining equipment like excavators and cranes, which have to deal with a lot of stress and severe working conditions. These bearings are used in vehicle transmissions to boost performance and reliability depending on conditions. When I use double-row cylindrical roller bearings in these applications, I guarantee the highest efficiency and durability of components, contributing positively to machine efficiency.
Industries Applying High Load and Radial Bearings
In my activity, I have encountered high-load and radial bearings used in many industries, especially in construction, aviation, and agriculture. In manufacturing industries, these bearings are used in heavy machinery and c conveyors to operate satisfactorily even under heavy loads. The aerospace industry depends on these bearings for their ability to work under adverse conditions and to remain reliable for aircraft systems. In the same way, in agriculture, tractors and harvesters are some of the machines that use these bearings to perform well and last long, even though subjected to harsh conditions. In this way, by selecting adequate high-load and radial bearings compatible with these kinds of applications, I am assisting in increasing productivity and ensuring the longevity of the equipment in these critical sectors.
Performance in Harsh Environments: Suitability of Double Row Roller Bearings
From my point of view, the double-row roller bearings are so designed and loaded that they can withstand some of the most harsh environments. Their rugged internal structure increases alignment resistance and can take high axial loads while addressing deflection induced by vibration and shock. Working in the construction and mining industries, I have observed that these bearings are less prone to degradation and corrosion than their counterparts, especially when properly sealed. They can sustain their operational performance in wide temperature ranges and under extreme working conditions, assuring that machinery can be used reliably for a pretty long time, thus curbing costs and high maintenance as well as downtime.
Reference sources
Frequently Asked Questions (FAQs)
Q: What is the primary consideration when selecting bearings for double-row cylindrical roller bearings?
A: The primary consideration in selecting double-row cylindrical roller bearings is to ensure they can withstand heavy radial loads while meeting the necessary axial load-carrying capacity for the application.
Q: Can double-row cylindrical roller bearings accommodate axial loads?
A: Yes, double-row cylindrical roller bearings can allow axial loads, but they are typically used as non-locating bearings, meaning they cannot guide the shaft in one direction.
Q: What materials are commonly used for the cages in double-row cylindrical roller bearings?
A: The cages in double-row cylindrical roller bearings are commonly made from machined brass or other durable materials, which help ensure the bearing’s smooth operation and longevity.
Q: How does the design of double-row cylindrical roller bearings differ from single-row bearings?
A: Double-row cylindrical roller bearings feature a second row of rollers, providing enhanced load-carrying capacity and stability compared to single-row bearings, which utilize only one row of rollers.
Q: What are the applications where cylindrical roller bearings are suitable?
A: Cylindrical roller bearings are suitable for applications involving heavy radial loads, such as industrial machinery, automotive components, and power transmission systems.
Q: Are double-row cylindrical roller bearings separable?
A: Yes, many double-row cylindrical roller bearings are designed to be separable, allowing for easier installation and maintenance.
Q: What bearing type should be selected for applications requiring high axial load-carrying capacity?
A: For applications requiring high axial load-carrying capacity, tapered roller bearings or angular contact ball bearings may be more suitable than double-row cylindrical roller bearings designed explicitly for such loads.
Q: How do I determine the correct bearing position when using double-row cylindrical roller bearings?
A: The correct bearing position is determined by evaluating the loads acting on the bearing within the assembly. This ensures that the double row cylindrical roller bearings are installed to accommodate the expected heavy radial and axial loads in the intended direction.
Q: Are double-row bearings more effective than spherical roller bearings?
A: Double-row cylindrical roller bearings and spherical roller bearings serve different purposes. While both can handle heavy loads, spherical roller bearings provide additional self-aligning capabilities, which may be advantageous in certain applications.
Q: What is a key feature of double row cylindrical roller bearings in terms of rolling bearings?
A: A key feature of double row cylindrical roller bearings is their design, which allows for efficient rotation and minimal friction, thereby enhancing the performance of rolling bearings in demanding applications.
