Double-row roller bearings comprise two rows of rolling elements, extensively used in several industries because of their high Load carrying capacity and more excellent stability than single-row bearings. Such are called radial thrust bearings, which serve the purpose of availing load in both directions, increasing machinery’s productivity and performance. This paper highlights the different design aspects of double-row roller bearings, including their construction, how they work, and the benefits they can provide in different applications. In doing so, readers will better appreciate the performance and durability benefits that double-row roller bearings provide to machines.

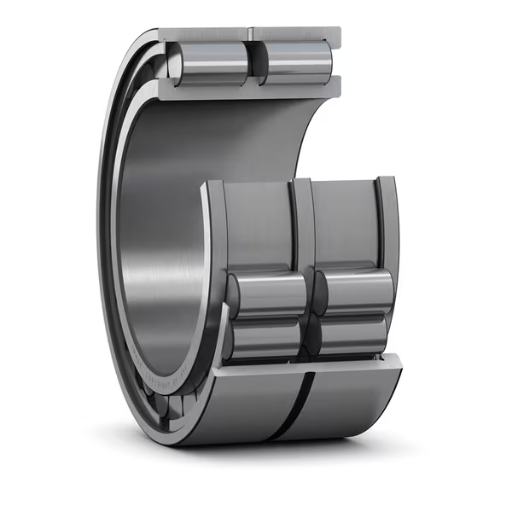

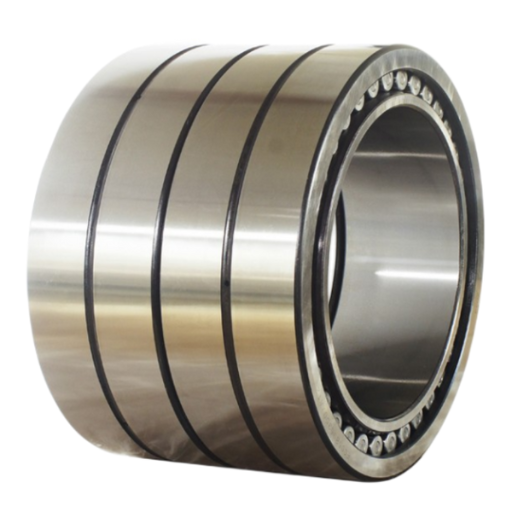

What are Double Row Cylindrical Roller Bearings?

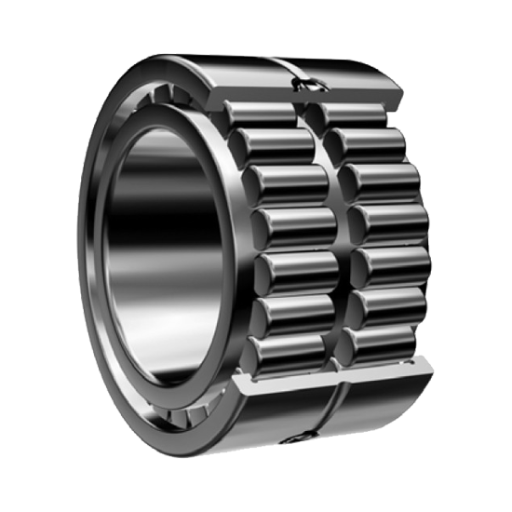

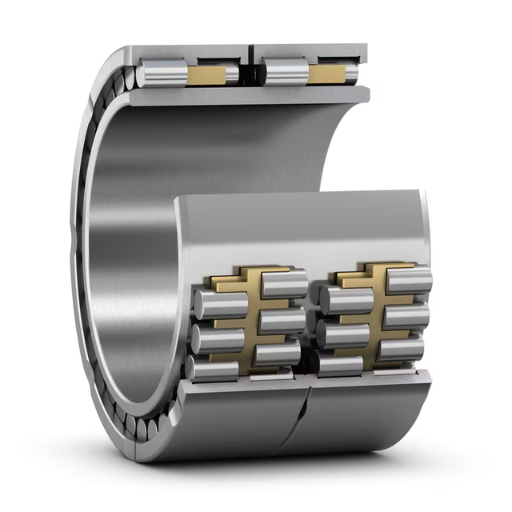

The Structure and the Composition of Double Row Bearings.
The two-row cylindrical roller bearing design includes two rolling components, improving the reduction of overall dimensions and enhancing properties such as load-bearing capacity and stability. The structural aspect typically comprises an inner and outer annular ring configuration with the rollers angularly staggered between the two therein rings. This structure enables the bearing to carry both radial and axial load types, which are relatively stiff. The rollers are often found to be cylindrical, allowing optimum loading of the bearing surface by preventing high bearing stresses and wearing of the surfaces due to long operational time. Many such double-row configurations are also provided with cages to maintain the spacing between the rollers and avoid contact friction to smooth their rotation. Instead of solely improving the efficiency of work of the mechanism equipped with this construction, it also enhances its strength.

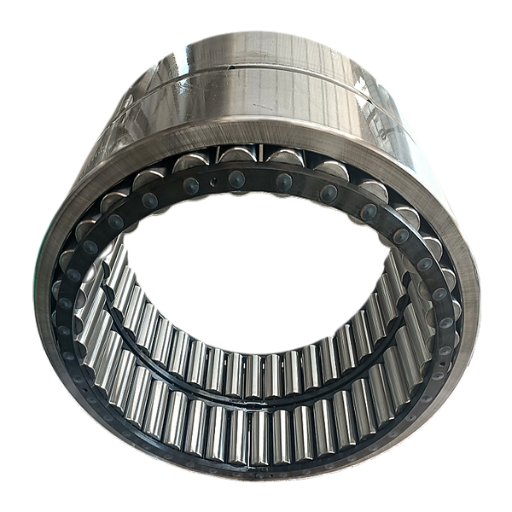

Key Distinctions Concerning Double Row Full Complement Bearings
Distinctions of double-row full complement bearings are explained in great detail, in addition to the standard description of double-row cylindrical roller bearings regarding several housed rollers. In other words, as with different technologies, such as wire ring technology, these bearings do not use cages to provide sufficient space between the rollers to fit more rollers into the assembly. Consequently, this leads to doubles of rolling member pairs being placed radially within the same astral plane. It shall increase the load-sharing capacity, making them appropriate in regions where high performance and reliability are needed.
Key Technical Parameters:
- Load Capacity: This type of bearing’s design allows it to carry more radial and axial loads with the help of a greater number of rollers. The radial internal load can often be assessed by comparing C and the basic dynamic load rating of full complement bearings, which is usually 10% -20% higher than that of caged versions.
- Speed Rating: Although the internal load is enhanced, the limit speed of full complement bearings is frequently lower than the corresponding value of cleavages due to surplus friction from the lack of a cage. For example, cages are designed sturdily enough to operate at thrust speeds of within and up to 3000 rotational speeds. Full complement implants may just withhold about 1500 locking heads, thus tending to be used for steadier operations.
- Wear Resistance: Also, for a fully complemented design, the absence of a cage implies a relatively high potential contact area; still, in excess loads, the roller may get deformed inside. Therefore, wear rates should be instituted, especially in a high-load-bearing containerized style.
In summary, double-row full complement bearing units are promising in terms of load-carrying capacity, but their operational speeds and working temperatures should be properly coupled with the application in which they are to be used.
Applications of Double Row Cylindrical Roller Bearings
Double-row cylindrical roller bearings are used in several strenuous applications because they can withstand very high loads and possess a relatively thick structure. I have encountered these in gearboxes, industrial machines, and high-end applications like construction equipment and printing machines. Furthermore, their advanced design allows them to be fitted into automotive parts such as wheel hubs and differentials, which must withstand high operating loads and have improved durability. These bearings are widely used in various industries to enhance operational reliability and efficiency.
How Do You Choose the Right Roller Bearing Design?
Considerations When Carrying Out a Bearing Design
In order to choose and foster the right roller bearing design, there are numerous factors that I consider specifically for optimal performance and durability. The first one is the load requirements, where I look into both static and dynamic loading conditions as this determines the bearing type and size to be used. Another critical factor is the operational speed; some designs, like double-row full complement bearings, have optimum RPM ranges within which they can function correctly. Other influencing factors include climate conditions like humidity contributions or contamination exposure since these matters or questions also affect the type of materials used for application and the kind of lubrication to be employed. Finally, I think about the necessary maintenance and the ease of access to the bearing without dismounting the assembly because if faults can easily be rectified, the reliability and life of the bearing will increase in the future.
The Significance of Load Ratings in Selection
As far as my experience goes, the load capacity is at the top of the list when it comes to the selection of roller bearings, as it determines the performance of the bearings and their lifespan. The bearing should be able to withstand the static and the moving loads it will be subjected to. Affiliate load capacity may also result in excessive bearing failure and loss of productive time for expensive repairs. I consider the manufacturer’s load ratings and especially look to oversize the bearings with the highest order load ratings respectful to application load demands. This approach as well serves to optimize the reliability of operation and the efficiency of the latter, which in turn implies savings in costs and improvements in the output of several machines and equipment.
Analysis of the Function of Lubrication
While working on roller bearings, it is clear to me that lubrication is of great importance for the functionality and durability of the bearings. Correct lubrication is significant as it lowers the possibility of friction and wear so that operations are pretty smooth and there is no heating up. I take into consideration the appropriate lubricant, such as oil or grease, its viscosity, and compatibility with the working components of the bearings. Regular checks on the lubrication and control of the lubrication schedules make it possible to increase the performance of the bearings and extend the period of usage of these devices. In addition, I am looking forward to choosing lubrication techniques to keep the bearings free from dust in the working conditions.
What are the Benefits of Full Complement Cylindrical Roller Bearings?
What is High Radial Load Capacity? Explainee Here
Regarding the cylindrical roller bearing, I have always believed that the high radial load capacity is primarily due to the construction that utilizes more rollers on the raceways. This enables them to carry loads more efficiently, thereby reducing the load on individual rollers and the abrasion of wear. For example, this site portal authoritatively contends that these bearings can have load ratings considerably better than ball bearings by as much as 20%-50% under the same working conditions.
As for the reason why I chose a full complement cylindrical roller bearing, I tried to examine some of the parameters, such as:
- Dynamic Load Rating (C): This corresponds to the maximum operating load that a bearing may tolerate while rotating with light scoring on one raceway; for some designs, such as full complement, this can range from 1200 to 2500 kN.
- Static Load Rating (C0): This rating considers only stationary bearings. It must be considered, especially for larger cylindrical roller bearings that can exceed 3000 kN.
- Limiting Speed: Sometimes, the high radial load capacity corresponds to the speed at which the structure is expected to operate. These normally vary between 500 and 1800 rpm, depending on the speed and the type of lubrication provided.
With careful consideration of the bearing composition parameters and the actual parameters of the application, I can ensure that the equipment works effectively under large and varying loads. This method of analysis is important in ensuring efficiency and durability even when the equipment is operated in stress-inducing conditions.
Full Complement Vs. Caged Designs Comparison
While considering the types of bearings encompassing full complement cylindrical roller and caged ones, I discovered several visible differences, particularly in the designs. Full complement designs hold a lot of merit because more rollers are used without a cage, meaning higher load capacity and stiffness with no loss in maximal operating efficiency. It helps to enhance the load area and sharing, which is an advantage on low and dynamic load applications, as I learned from top reputable sources in the industry. On the other hand, caged designs provide such rotation with higher lubrication and lower resistance due to the configuration and, therefore, are ideal in situations that have to do with high speeds. My final decision rests on the operational characteristics; for instance, where the requirement is mainly about the load capacity and the durability, I go for the full complement designs, of which, at the other extreme of movement speed, I am better off with caged varieties. That in-depth comprehension enables me to strategically and efficiently choose bearings with diverse performance specifications.
Common Uses for Full Complement Bearings
From my view, full complement bearings are ideally employed in applications that require high load capacity and efficient working durability. In this case, such bearings are widely utilized in heavy structures, including construction equipment, and are often subjected to high stress. In addition, I also recommend this type of bearing in the case of industrial gearboxes and wind turbine applications due to their efficient dynamic loading capacity. Their extensive structure also allows use in demanding conditions, including mining and material handling, which have high shock loads and vibrations. By looking at these applications, I balance the performance and reliability features of the machinery I work with.
How do you properly mount and dismount double-row bearings?
Step-by-Step Mounting Procedures
- Preparation: Before I can even contemplate mounting the rim, I make certain that the wrenches, hammers, and any required components are available.
- Clean the Components: I take some time to thoroughly clean the bearing housing and shaft to eliminate dust, grease, grime, etc. This is very important as any contaminant may cause troubles related to performance.
- Inspect the Bearing: Next, I check the double-row bearing for any visible deformation or faults. This step confirms that everything is right before proceeding to the bearing position.
- Lubrication: When necessary, I apply any suitable lubricant or any specified by the manufacturer to the bearing evenly.
- Positioning the Bearing: I bring the bearing in contact with the housing and make sure it is seated on the shaft; placement is done without any undue force to sit it.
- Mounting the Bearing: I press the bearing onto the shaft using a bearing press or some other dedicated tool so that it is met with even pressure and is not damaged. I make sure all the pressing is done correctly, ensuring it gets appropriately seated in the housing.
- Securing the Assembly: Moving to the next operation, I proceed to fit any retaining rings or retaining clips that are necessary to hold the bearing in place in a particular assembly.
- Final Checks: Last but not least, the bearing is rotated with moderate force to assess the operation and determine whether any rotatory deformities, such as undesired roughness, strange sounds, or shakes suggesting a problem with mounting, can be observed.
- Dismounting: If I have to dismount, I use a bearing puller to remove the bearing from its housing while ensuring that the housing and bearing parts are not damaged in the process.
Common Mistakes to Avoid When Dismounting
- Using Incorrect Tools: One of the most frequent mistakes I encounter is a tool mismatch that is not suitable for bearing dismount. I ensure that I always have a proper bearing puller to avoid damaging the bearing and its neighbors.
- Applying Uneven Force: I make it a point to apply uniform pressure while prying the bearing on the shaft. I make sure too much force is not applied to damage and cornering operations. Too much or too little force can mean quite a bit of squish and possibly induce tolerance and maybe damage, which can make resetting or reinstalling problematic, or chances are the bearing has failed early.
- Neglecting to Clean the Area: Last but not least, before I commence the dismounting procedure, I disinfect the entire area, which is invisible to dirt and, therefore, provides ventilated passages for contaminants to gain entry into the assembly. I understand that dust and debris may create more problems later, hence this step is of the utmost importance.
- Forgetting to Document Conditions: I tend not to forget the condition of the bearing and housing when dismounting them from the machine. This is important to ascertain any wear or damage and help devise an alternative plan for replacement or repair.
Tools Required for Bearing Installation
There is no special policy for fixing the new bearings if the relevant tools are available. Firstly, I use a bearing press to fix the components and ignore over-stressing or putting the parts at risk of damage. Secondly, I am specific that I have a mallet or soft-faced hammer for when I have to insert bearings without warping them. Also, a torque wrench is one of those essential tools I have to use since it helps me put in the correct tension while fastening the bearing. The most important tool I always carry is the cleaning kit to make the surfaces machine dry and free from dirt and grease, or lubricants relevant for that type of bearing for its ease of operation. Last but not least, a digital caliper is likely to be relatively close to checking for the tolerances to use a correct bearing in a designated housing.
What are the Load Ratings for Double Row Roller Bearings?
Apprehending Static Load Rating
From the practical aspect, double-row roller bearings’ static load rating refers to the magnitude of the load that the bearing can support when standing under rest without any permanent deformation. This rating is essential because it evaluates how much load bearing can be subjected to in practice. For the most part, I, on purpose, seek this rating in the instructions for the use provided by the manufacturers, as it mainly concerns not only the size and materials of the bearing but also the actual engineering solutions employed to improve the way forces are distributed. While rating load, I think about the device’s exact position and application, ensuring that the static load rating is above the estimated static loads and that its performance remains reliable and safe.
Professional Curve and Socket Dynamic Load Ratings
Dynamic load ratings of double-row roller bearings define the maximum load of a bearing under the condition of rotation, which is often sought after by design engineers. This rating is essential when the bearing is expected to sustain loads in the future for varying lengths of time. However, with dynamic load ratings, the values used in those calculations are based on the manufacturer’s specifications. However, these ratings differ considerably from the shaft bearing parameters since they are calculated considering bearing design, materials, and operational conditions. An ordinary practice for professionals involves using a bearing with a dynamic load rating that is equal to or less than the ones anticipated to ensure the durability of the equipment. However, it is critical for me to choose a bearing with a dynamic load rating higher than that that can be reasonably anticipated in use even when the conditions are ideal.
Load Capacity Evaluation on Particular Cases
In evaluating load capacity for particular applications, I start with fundamental technical parameters, which I acquire from appropriate sources, such as manufacturer specifications or regulatory and industry documents. Critical parameters include the bearing’s dynamic and static load ratings and the environment in which the application is to be used. For example, if working with a heavy machinery application, I check for the maximum radial and axial loads the bearing can offer, as these significant sources provide. Also, the speed factors related to thrust and radial loads may heat certain parts and change other performance aspects.
To support this, I point out that the dynamic load rating would be higher than the maximum applied during use, even when considering impacts or changing loads. In addition, I analyze the lubrication issues under loading as there can be enough load ratings to measure a bearing satisfactorily, but it would still fail under those ratings. Applying these principles will make it easier for me to choose the right bearings for the application at hand, thereby enhancing the reliability and safety measures throughout the entire operational period.
What Maintenance Practices are Essential for Roller Bearings?
Importance of Regular Lubrication
Usually, roller bearings work well and are long-lasting if adequate lubrication is done occasionally. In literature and practice, it is known that internal friction and wear caused by relative motion between the bearing components can be reduced by adopting an appropriate lubrication technique. All this contributes to the improvement of the productivity of the equipment and avoids situations when the sail bearings would need to be replaced earlier than planned. For this reason, I ensure that both the time and the type of lubricant to be employed are within the acceptable limits offered by the manufacturer. I am also cautious regarding the degree of contamination of the lubrication system, as such contaminants could impair the performance of the bearing. Through these measures focusing on the timely completion of lubrication, I enhance the reliability of the equipment containing these bearings and its overall efficiency.
Indicators of Deterioration of Roller Bearings Over Time
Based on my practical knowledge, I believe it is essential to learn how to notice the signs of wear on roller bearings, which will assist in maximizing the radial. One of them is the noise or vibration during operation, which may suggest that something is not right and that the view is not functioning well. In addition, I also check the temperature; if the bearings are hotter than usual, it can indicate more than usual loads or that there’s low lubrication. Inspections are performed, and even in this situation, I look for signs of wear in the bearing’s inner or outer wall, such as discoloration, pitting, and spalling, because these defects are a sign of wear and tear. Also, I assess the condition of the bearing assembly for any movement that may be excessive, as this may impair functionality and damage the structure. In doing so, I can nip issues in the bud and prevent the roller bearings from breaking down and becoming unserviceable for my applications.
Best Practices for Prolongation of Bearing Life
I adhere to various proven best practices to enhance the life of roller bearings. I will begin by ensuring the correct assembly and installation. To achieve this, I follow the instructions in the manual closely, especially on alignment and fitment. Correcting bearings often when they should be lubricated is another best practice since it reduces erosion. I also work hard to keep the workplace free of contamination by using physical barriers such as Y filters and seals. Limiting structural parameters such as speed and load also prevents the failure of bearings via overload. More so, I have periodic and routine inspections of the equipment in case of the possibility of reasonable or excessive wear-out, which assures that structural failures of larger magnitude do not occur from minor functional deficiencies. Following these best practices allows me to significantly improve the stability and durability of the bearings installed in the more complex equipment.
Reference sources
Frequently Asked Questions (FAQs)
Q: What are the design features of double-row cylindrical roller bearings?
A: Double-row cylindrical roller bearings are characterized by their two rows of rollers, which provide a greater axial load-carrying capacity and are suitable for heavy radial loads. They are designed to handle edge stresses effectively and can accommodate shaft misalignments.
Q: How does dimensioning impact the performance of double-row cylindrical roller bearings?
A: Proper dimensioning is crucial for double-row cylindrical roller bearings, as it affects the load distribution across the bearing rings and the overall bearing performance. Bearings must be dimensioned accurately to ensure optimal contact surfaces and prevent edge stresses during operation.
Q: Are double-row cylindrical roller bearings separable?
A: Double-row cylindrical roller bearings are separable, allowing easy installation and maintenance. This feature enables the inner and outer rings to be mounted independently, simplifying the assembly process.
Q: What types of loads can double-row cylindrical roller bearings accommodate?
A: Double-row cylindrical roller bearings are designed to accommodate radial and axial loads. They are particularly suitable for applications involving heavy loads and can handle axial displacement in one direction when used correctly.
Q: What is the significance of the roller end in double-row cylindrical roller bearings?
A: The roller end plays a crucial role in forming the lubricant film and reducing friction during operation. This feature allows for low friction and high speeds, making double-row cylindrical roller bearings ideal for dynamic applications.
Q: Can double-row cylindrical roller bearings be used in high-speed applications?
A: Yes, cylindrical roller bearings are suitable for high-speed applications due to their design, which minimizes friction and supports lubricant film formation. However, the specific application must be evaluated to ensure compatibility with speed requirements.
Q: How do double-row cylindrical roller bearings differ from ball bearings?
A: Unlike ball bearings, which use balls to separate the bearing rings, double-row cylindrical roller bearings utilize cylindrical rollers. This design enhances load-carrying capacity and is more effective for heavy radial loads.
Q: What is a full complement cylindrical roller bearing?
A: A full-complement cylindrical roller bearing contains the maximum number of rollers that can fit between the inner and outer rings without a cage. This design allows for increased load capacity, making it suitable for heavy applications.
Q: What is the role of flanges in double-row cylindrical roller bearings?
A: Flanges provide axial guidance and prevent axial displacement of the rollers. They help maintain the rollers’ alignment within the bearing, which is essential for ensuring optimal performance under load.
