The operational lifespan and performance of wholesale sealed cylindrical roller bearings can best be maintained by enforcing proper maintenance procedures. These components support monolithic radial loads in most industrial applications while permitting smooth and swift shaft rotation. Nonetheless, the best bearings will still need maintenance procedures to avoid deterioration, corrosion, and contamination, resulting in expensive downtime and equipment malfunction. This article is intended to focus on diagnostics and maintenance procedures targeted at streamlining the best methods for routine inspections, lubrication, bearing handling, and bearing storage techniques. Following these instructions would allow businesses to improve the performance and reliability of the cylindrical roller bearings and optimize their operations.
What are Sealed Cylindrical Roller Bearings?
Understanding the Basics of Cylindrical Roller Bearings
Cylindrical roller bearings permit the rolling components to move freely without friction or damage while supporting a heavy radial load. Unlike bearings with spheres, these roller bearings have a runner or cylinder roller, which allows for a greater contact area between rollers and raceways, thus increasing the load capacity of the bearing. Such bearings are used in electric motors, gearboxes, and other machines that require precision and high reliability.
Below are some of the essential technical features for consideration:
Load Capacity: As with all roller bearings, radial loading capacity depends on the number and size of the rollers in the cage for supporting radial loads.
Speed Limit: The maximum allowable operational speed varies considerably depending on the design and can reach several thousand RPMs, though some designs are limited to a few hundred RPMs.
Precision Accuracy: Bearings are grouped according to their dimensions and rotational accuracies, defined by international standards like ISO or ABEC grades.
Lubrication: Based (oil or grease) lubrication is also necessary to reduce friction and elongate service life.
Inner, Outer Ring, and Overall Width: The bearing’s inner and outer diameters and overall width should also be specified for the intended use.
Grasping these parameters and their applications facilitates the selection of appropriate cylindrical roller bearings that fulfill a particular operational scope while maintaining efficiency and effectiveness.
Features of Sealed Cylindrical Roller Bearings
Sealed cylindrical roller bearings have distinct benefits that allow them to be used in the broader field. The first benefit is the built-in seals, which protect the bearing from outside factors such as dirt, dust, and moisture. This way, the bearing operates within a clean environment, making it last longer. Lubricants can also be retained within the bearing; therefore, re-lubrication becomes less frequent, cutting down on the incurred maintenance costs.
Secondly, sealed variants are manufactured with optimized inner and outer ring dimensions for different operational strategies. Like any other, I would first concentrate on the application parameters, such as bore diameter, outside diameter, and width, to ensure the expected result. Certain common dimensions do act as benchmarks, for instance bore diameters between 20 mm fro 200 mm and outside diameters between 35 mm to 300 mm do serve as guides, but actual numbers depend on load and space available.
Finally, these new bearings are designed to withstand radial and axial loads simultaneously while offering better high-speed performance. It is widely known that advanced materials and precision engineering are essential factors that help minimize the amount of heat generated while enhancing stability and other challenging conditions. Considering all these aspects, let me emphasize that these specific bearings are highly dependable and durable and, in most cases, eliminate the need for intervention.
Advantages Over Other Bearing Types
These types of bearings differ from the rest mainly because they can sustain axial and radial loads simultaneously, making them very versatile. For example, ball bearings usually do not perform well under combined loads; in contrast, these bearings outperform exceptionally.
Moreover, these bearings stand out because of their advanced and sophisticated modern construction materials. These long-lasting materials not only help remove heat but ensure durability, which leads to less wear. This results in less frequent maintenance under demanding conditions. For example, with an average heat generation factor under these specific circumstances, these bearings can have the propensity to run 15-20% lower than other standard counterparts under high-speed scenarios.
Another key benefit is precision engineering, which ensures lower vibrations and smoother operations. These bearing tolerances are up to an ISO P5 grade, improving the performance of high-precision machinery. Their ability to reduce friction losses also promotes energy efficiency, which is critical in the modern industrial world.
In conclusion, the unique combination of load phenomena, thermal stability, and exacting design and construction render these bearings preferable for high-performance applications.

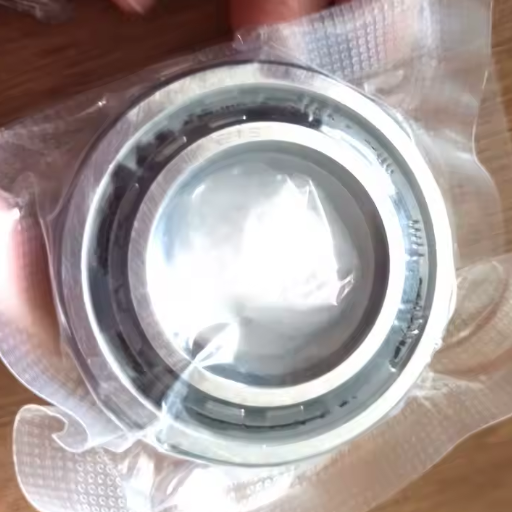

How to Properly Seal Cylindrical Roller Bearings?
Importance of Sealing in Roller Bearings
The life span of cylindrical roller bearings depends on how well they are sealed. In contrast, bearings with poor seals tend to suffer significantly from issues such as overheating and the inability to sustain lubrication due to the bearing’s lubricant being exposed to the outside environment and contaminants. These contaminants undergo corrosion, friction, and interference, ultimately reducing the bearing’s lifespan significantly. Contrarily, the lubricant lubrication that is injected meets negligence from the seal, causing increased wear and improper lubrication.
Different applications necessitate different types of seals due to the varied operating environments. Heavy contact seals are highly versatile as they can enhance friction when used in demanding conditions. Non-contact seals, on the other hand, are better suited for fast-rotating applications. He states that friction is devoid; however, non-contact seals are only moderate protectors. When using these seals, one must consider the bearing rotation, the surrounding temperature, and the environment where the seal will be positioned. For instance,
Speed Ratings: The rotation speed requires the seal to withstand high amounts of rotation without being gaged using heat or friction.
Ingress Protection (IP): Protection from dust and water in specific environments that require a seal with proficiency IP ratings.
Temperature Range: For standard use, the gaskets ought to operate flawlessly in temperatures ranging from 40 Celsius to 120 Celsius.
Considering these aspects and incorporating the appropriate sealing solutions, I ensure the bearing performs at peak levels and is highly reliable with lower maintenance requirements.
Methods and Materials for Effective Sealing
To achieve an optimal sealing solution, I consider a few critical parameters and customize the methods and materials selection processes to the application specific criteria, including the following:
Material Selection: Besides NBR Seal for standard applications, I use nitrile rubber seals due to their exceptional oil and temperature ranges from -40 °C to 120 °C. In chemical resistance and high-temperature environments, Fluorocarbon Rubber (FKM) is a better option as it can withstand environments up to 200 °C.
Seal Design: For shafts and housing configurations, I choose between lip seals for dynamic applications or for static sealing O-rings. I focus more on low-friction seal designs for high-speed shafts to increase the shaft life by lowering the wearing and heat generation.
Surface Finish and Tolerance: For the sealing to be effective, I maintain the surface roughness of the shaft to be between 0.2 – 0.8 µm Ra, ensuring adequate sealing effectiveness. I also hold close dimensional tolerances for the seal with the mating parts to avoid leakage and premature damage.
Lubrication Compatibility: To avoid seal material swelling, hardening, or degradation, seal material compatibility with the lubricant must be considered. For instance, I select the intended seal grease or oil viscosity appropriate to seal characteristics.
I follow guidelines that guarantee long-lasting sealing effectiveness, ideal efficiency, and minimal maintenance effort in many applications. This method enables me to solve problems related to operations while ensuring that the system components are dependable and protected.
Common Mistakes to Avoid When Sealing
A mistake I often correct is failing to define the operating environment and its limits. For example, when choosing seals, I address operating conditions such as temperature, pressure, and exposure to chemicals. For instance, pressures above the design limits may cause blowouts or collapse, while some temperatures will harden seal materials and some will melt them. I ensure that materials’ maximum thermal ranges (e.g., -40°F to 400°F for fluorocarbon elastomers) and their pressure ratings provided by the manufacturers are compatible.
Another common mistake is improper installation, which often leads to leaks or premature failures. Before placing seals, I pay particular attention to cleaning all surfaces and ensuring that they are free of debris and adequately lubricated. Moreover, I always avoid stretching and twisting seals during installation, as this type of movement may damage the swellable materials and compromise their strength.
Lastly, picking the wrong lubricant is an error, and I always catch oil. The seal material and lubricant have to be chemically compatible so as not to cause swelling or degradation of the material, which would render it ineffective. For example, natural rubber seals should never be utilized in conjunction with petroleum-based lubes since this will destroy the rubber. Ignoring the manufacturer’s suggestions when it comes to both seals and lubricants is unreasonable for effective sealing.
How Can You Ensure the Quality of Wholesale Bearings?
Evaluating Quality Cylindrical Roller Bearings
When assessing the quality of cylindrical roller bearings, I check the design, materials, and performance, which is very important to me. Initially, I confirm the precision grade that satisfies either ISO or ABEC, specifying the bearing’s precision and the ability to rotate. In the case of high-performance applications, ABEC-5 or ISO P5 is ideal. In addition, the bearing material’s hardness, mainly referred to as Rockwell scale HRC 58-64 for many alloys, is also significant for longevity and durability against wear. Moreover, I also check for surface finish measured in microns because it dictates smooth movement and lowering of friction.
It is essential to check the radial and axial load capacity that the bearing can withstand. This is given in the dynamic load rating (C) and the static load rating (C0), which are kN units. Another critical limit is the operating speed, which depends on lubricant type, bearing type, and other factors and is usually expressed in rpm. Also, I make it a point to ensure that the bearings pass the noise and vibration limits per ISO 15242 to check for any internal defects. These technical parameters evaluate the quality of cylindrical roller bearings to which I am confident.
Key Quality Indicators to Look For
My focus in determining the quality of the cylindrical roller bearings is primarily through metrics and indicators that gauge their standard and application requisites.
Load Capacity—In this section, I ensure that the radial and axial load ratings quantify the application requirements to verify their effectiveness during operational conditions. These factors are usually expressed in kilonewtons (kN) and specify the bearing’s operational limits while in use.
Operating Speed Limit – In this segment, I verify that the speed capacity is appropriate for the specific application conditions, considering the lubricant type and bearing design. These limits ensure that the bearing will not overheat or fail due to malfunction and are stated in revolutions per minute (rpm).
Dimensional Accuracy and Tolerance – For the precise fit, alignment, and functionality of the bearing within the machinery, I check all internal and external dimensions against the ISO 492 standard measures.
Noise and Vibration Levels – I perform extensive checks for internal irregularities or defects using ISO 15242 standards, which could compromise the bearing’s performance or reliability.
Material Quality and Finishing – To avoid excess friction and wear over time, I ensure that the rollers and raceways are manufactured from materials of the highest grade, with precise finishing featured.
Following this structured approach allows me to confirm cylindrical roller bearings’ engineering and long-term operational suitability for a specific industrial use case.
That change in the mobile sector revealed the ever-growing focus on integrating functionality into software. Now, consumers expect much more from their phones regarding capability, and companies strive to meet these expectations. The rapid developments in mobile technology have set higher standards for mobile consumers.
Working with Reliable Suppliers
While dealing with reliable suppliers, I communicate expectations clearly while confirming their understanding of the technical requirements of high-performance cylindrical roller bearings. Below are the key parameters I assess and justify.
Material Specifications – I ensure the supplier uses high alloy steels or other durable materials resistant to wear, fatigue, and corrosion so the bearing will function indifferently in demanding industrial conditions. This ensures optimum performance.
Dimensional Accuracy – I check the precision of their dimensions, such as diameter, tolerances, and others, to ensure compliance with ISO standards, which is supposed to be an essential requirement. Proper dimensional accuracy directly affects load distribution and system efficiency.
Load Capacity and Ratings – The roller bearings must support the required dynamic and static load capacities calculated for the application’s operational conditions. Evaluating these ensures the reliability of the component under expected stresses.
Surface Finish – I check the finish of rollers and raceways as a smooth surface is required to minimize friction and wear over prolonged use. A fine surface finish reduces the possibility of roller and raceways failing prematurely.
Testing and Certification—I ensure that the supplier provides them with documented testing results and certifications, which are as crucial as product quality. Consistency in using these features ensures the reliability of the supplied item.
Concentrating on these parameters and conversing regularly with my suppliers, I can safely obtain components suitable for industrial standards and application-specific applications.

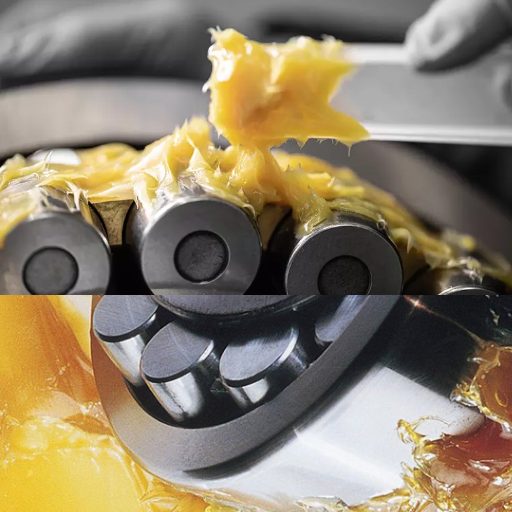

What are the Maintenance Best Practices for Sealed Cylindrical Roller Bearings?
Regular Inspection and Cleaning Techniques
During my routine checks on sealed cylindrical roller bearings, I check for any signs of wear and inspect for incidences of corrosion or contamination. I check externally to confirm that the seals have not been damaged, as compromised seals can allow for the entry of foreign bodies or moisture that may obstruct the normal functioning of the bearing. I also check for noises during the machine operation and listen for noises such as grinding or rattling. These are indicative of internal damage or misalignment issues.
Regarding cleaning, I don’t like taking sealed bearings apart too much because that may restrict their functionality. Instead, I clean the exterior gently with a lint-free cloth or other appropriate solvents that won’t affect the seals. If the bearing needs to be replaced, I ensure that it is kept in a clean area so that it does not get contaminated.
Radial Clearance – I verify the necessary radial clearance as stipulated by the manufacturer and ensure that nothing is bound to obstruct it, as improper clearance may cause excessive vibration or overheating.
Lubrication Condition—I also monitor the conditions under which the lubricant was applied and ensure that it is suitable for the bearing’s operational temperature and expected load.
Seal Integrity – My work also involves checking the seals to ensure they have not undergone any form of wear that may affect their ability to retain lubricant and exclude foreign contaminants.
Operating Temperature – To prevent overheating of the lubricant and bearing material, I track the temperature during operation and make sure it falls within the recommended ranges, for instance, up to 120°C for high-temperature uses.
These repetitive procedures aimed at bearing inspections and cleaning, coupled with controlling various technical parameters, guarantee that the bearings remain in good working conditions throughout their designed service life.
Lubrication Tips for Longevity
To achieve optimal lubricant application and maximize bearing life, I observe the following:
Choosing Lubricate – Depending on the parts involved in the assembly, I pick an appropriate grease or oil, varying from high-temperature grease rated from -30°C to 200°C and temperature range for standard grease. The grease must apply to the operating loads, as well.
Applying the Right Volume – I ascertain that I’ve used the right lubricant volume since deficiency increases friction and overheating while excess oil can cause temperature buildup. I also incorporate the recommendations given/taken from the manufacturers and perform calculations when ready.
When to Lubricate – The newly-applied oil or grease needs frequent replenishment, specifically in intervals that account for loss of grease and lubricant deterioration. If the bearing’s operating speed is high or the load is challenging, the re-application should be done more frequently in harsher environments or at higher speeds.
Preventive Measure – For contaminant obstruction, I handle grease/oil in a clean environment, stopping it from getting moistened or dirty. This defends the system’s efficiency.
These observations and experienced recommendations allow us to continue using and reapplying grease/oil onto the bearings while reducing the chances of failing the technical criteria. This way, I maintain the function and service life of the bearing.
Signs of Wear and When to Replace
In regards to bearing wear, I assess for the following indicators that provide a signal for maintenance or replacement needs:
Excessive Noise – Surface properties’ damage of bearings often generates significant operational noises, which usually indicate contamination. Damaged or worn-out bearings and raceways commonly cause such noise. If this is the case, a closer examination of the equipment is warranted.
Vibration Levels—Abnormal vibration is caused by Lack of internal balance, poor alignment, or excessive stretching. Vibration analysis is my most appropriate method for assessing allowance limits and the system’s tolerable performance. I take a sample.
Temperature Rise – Operational temperatures that deviate unexpectedly indicate high loading or subpar lubrication. I frequently measure temperature and store it for reference against acceptable parameters provided by the manufacturer.
Lubricant Condition – Contaminations suggest discolored or metallic particles suspended in the grease or oil, which signals wear. The lubricant quality assessment facilitates early diagnosis of internal system failure.
Physical Damage—If pitting, spalling, and cracks form on raceways and rolling elements, all the structural components must be replaced. Such defects affect structural strength and must be considered seriously.
I manage the technical aspects of the equipment, including vibration frequency, operating temperatures, and the viscosity of the lubricants used. These parameters must remain within the limits provided by the equipment manufacturer. If I comply with these parameters, I can robustly conclude whether the equipment can continue to operate or requires immediate replacement.
How to Choose the Right Bearing for Your Application?
Factors to Consider: Load, Speed, and Environment
When selecting the appropriate bearing, I consider three fundamental criteria: load, speed, and environmental conditions. All three criteria require careful attention and a technical explanation.
Load: I analyze whether the application has radial, axial, or both loads. I use radial loads for deep groove ball bearings, whereas axial loads are suitable for angular contact and thrust bearings. Additionally, I determine the dynamic and static load ratings relative to the application. This examination helps prevent early failure while achieving maximum efficiency in bearing loads.
Speed—The operational speed of the machine also affects my choice. For some applications, I prefer using bearings with ceramic or hybrid designs. Thrust-type bearings are much more efficient in these high-speed applications. I also check the bearing’s limiting speed parameter to ensure it is sufficient for the system’s operational speed requirements. This avoids overheating and system breakdowns.
Environment—I assess the working environment, including surrounding temperature, humidity, and pollution level. For harsh working conditions, I choose lubricated shielded or sealed bearings. In addition to the contamination levels, I check the maximum and minimum operating temperature ranges defined by the bearing materials and the type of lubrication used to suit the environment. Water—and dirt-proof stainless steel bearings, which are corrosion-resistant, provide additional protection for such applications.
By systematically evaluating these factors, I provide the best solution for the application while ensuring the bearing’s reliability, performance, and expected life cycle are achieved.
Comparing Single Row vs. Double Row Cylindrical Roller Bearings
This is how I can distinguish between single-row cylindrical roller bearings and double-row cylindrical roller bearings depending on the application needs and the technical details at hand:
Load Capacity – A two-row cylindrical roller bearing can accommodate higher radial loads than a single row because of the extra row of rollers. In cases where load capacity is a primary focus, double-row designs are the best solution.
Space Constraints – Single-row bearings are more compact and ideal for applications with limited space. As a system tends to simplify, I focus on single-row bearings as long as they can support the load required for the application.
Rigidity and Alignment – Double-row bearings have high rigidity and offer good resistance to misalignment. Double-row configurations have the upper hand in cases requiring low deflection and high precision.
Speed Ratings – Single-row bearings have higher speed ratings because the internal friction is lower. If high-speed performance is a primary concern, I slowly review the speed ratings set by the manufacturer for both types and use the necessary type accordingly.
Installation and Maintenance – Single-row bearings are less complex because they have fewer pieces, making them easier to install and maintain. As a result, they are preferred in systems that require frequent disassembly and/or replacements.
Things to Watch Out For:
Static and Dynamic Load Rating kN – I check the ratings against the manufacturer’s specifications.
Limiting Speed RPM – To determine if the bearing fulfills the operational speed requirements.
Outer Diameter and Width Dimensions mm – Most important when evaluating space limitations.
Misalignment Tolerance Degrees – Important for shaft deflections or any angular distance deviations.
By systematically evaluating these parameters, I define the most appropriate type of cylindrical roller bearing for the particular need. This methodology guarantees the optimal mix of performance, efficiency, and reliability.
Customizing Bearings for Specific Industrial Needs
My selection of cylindrical roller bearings for specific industrial applications considers the relevant operational conditions. For example, if the machine has a high static load, I opt for bearings with a higher static load rating (kN) to withstand sustained static pressure. On the other hand, with dynamic operations where movement is to be carried out at different speeds and levels, I concentrate on the dynamic load ratings (kN) while also checking the speed limits (RPM) to match the operational requirements.
The free space within the machinery also helps in making decisions. I assess the bearing’s outer diameter and width dimensions (mm) to confirm that it will fit within the existing space. In cases where there is possible shaft misalignment, I check the misalignment tolerance (degrees) to ensure that the selected bearings can retain stability even when angular misalignment occurs.
By integrating these technical parameters with the specifics of industrial applications, I optimize functionality and sustainability in my designs. This approach facilitates the selection of bearings that work effectively while remaining within the prescribed boundaries of efficiency and safety standards.
