Modern machine tools are designed and function as critical components with precision cylindrical roller bearings. Therefore, the significance of these bearings tends to increase as industries pursue efficiency, accuracy, and reliability. This article explores the complex aspects of precision cylindrical roller bearings, focusing on their design characteristics, production procedures, and how they enhance performance in various applications. We will also discuss the relevance of choosing accurate bearings for specific machines and how they affect overall productivity. Whether you’re a well-experienced engineer or just an interested reader, this comprehensive review offers significant clues into the functions of fine-grained bearing materials in bettering advanced machining capabilities.
What are Precision Cylindrical Roller Bearings?
Defining Precise Bearings and Their Characteristics

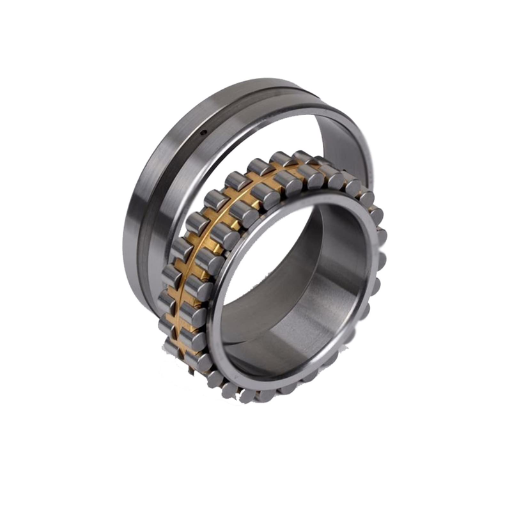

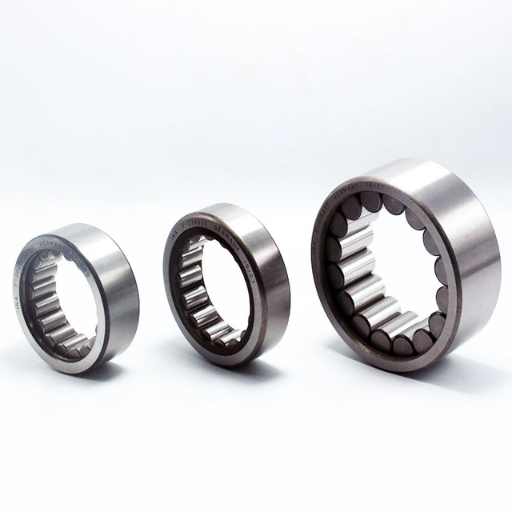

Precision cylindrical roller bearings are specialized bearings designed to support heavy radial loads while maintaining high accuracy and efficiency in rotational motion. These are designed with cylindrical rollers that offer a larger contact area, which helps enhance load capacity and reduce stress on individual components. These include tight tolerances, strict quality standards, and the use of high-quality materials that ensure long life and reliability. Precision bearings usually have improved lubrication systems to minimize friction and wear, improving their performance in high-speed/high-precision applications. Ultimately, their design and the functionality of these precision cylindrical roller bearings make them indispensable in machine tools where nothing short of a micron can be ignored.
Comparison between Standard Cylindrical Roller Bearings and Precision Cylindrical Rollers
The following are some key differences when comparing standard cylindrical roller bearings and precision cylindrical roller bearings brought about by application purposes requirements for various performances:
1. Tolerance and Fit:
- Standard Bearings usually have wider tolerances, which may be suitable for general applications. Standard bearing tolerance grades typically belong to the ISO P0-P1 range.
- Precision Bearings: Tighter tolerances (ISO P2-P5) ensure more accurate fitting for high-speed operations at high precision.
2. Material Quality:
- Standard Bearings: Commonly manufactured from conventional materials that may not exhibit the same resistance to fatigue or longevity over time.
- Precision Bearings: The presence of these means they are made from better-quality steel that undergoes heat treatment or even ceramic materials, thus making them last longer due to their higher resistance to wear, which is essential in aggressive environments.
3. Lubrication:
- Standard Bearings: Consequently, higher friction rates and wear rates may result from using simple methods for lubrication processes.
- Precision Bearings: For example, enhanced operational efficiencies could be achieved through advanced lubricating systems comprising greases or oils containing additives that reduce friction, especially during heavy load-carrying activities.
4. Load Capacity:
- Standard Bearings: These are suitable for everyday machines, so they have been designed to accommodate medium load ratings.
- Precision Bearings: They are built to withstand higher loads with more stable performance, which is critical for applications that require fine tolerances.
5.Applications:
- Standard Bearings: In general, these are used in non-essential fields where accuracy is not important, such as basic machinery and automotive components.
- Precision Bearings: They must be used in high-performance environments such as aerospace, robotics, and precision machining, where nothing short of accuracy or reliability can save lives.
Engineers and designers who understand these differences will be better equipped to choose the right type of bearings for their specific needs. This will improve the performance and increase the lifespan of their machinery.
Applications of Precision Cylindrical Roller Bearings in Machine Tools
In my opinion, machine tools would not operate efficiently without precision cylindrical roller bearings. These are purpose-built to carry hefty radial loads and give excellent rigidity, making them ideal for any situation requiring precise motion and stability during machining processes. I have seen them commonly used on CNC (Computer Numerical Control) machines where there can be no compromise on accuracy and repeatability. Furthermore, their ability to run at high speeds without heating up makes them ideal for high-performance machining jobs. Consequently, by using precision cylindrical roller bearings, accuracy can be significantly improved, wear is reduced, and serviceable life is lengthened in the machine tools manufacturing industry.
How Do Precision Cylindrical Roller Bearings Work?
Parts of the Precision Cylindrical Roller Bearings
In general, I find several essential components in precision cylindrical roller bearings, and they operate as a team to deliver high performance. The rings are built as inner and outer parts that provide stable positioning for the cylinders. In contrast, the cylinders themselves are usually designed in such a way as to minimize friction and guarantee smooth turning even under extreme loads. Additionally, most bearings have cages or retainers that assist in keeping the rollers at equidistant positions to avoid contact during operation. Finally, lubrication is essential for reducing wear and prolonging bearing life, often done using special oils or greases for fast operations. Comprehending these constituents would help me understand how they contribute to the efficiency and dependability of machine tools’ precision cylindrical roller bearings.
The Role Played by Cage and Cylindrical Rollers in Bearings
From my experience with precision cylindrical roller bearings, it has become clear that a cage is crucial for upholding bearing integrity and performance. Therefore, not only does it locate the cylinder rollers centrally but also ensures that their separation remains uniform throughout their operation time, thus preventing any touching between them when they are at work. Consequently, this spacing helps reduce maintenance expenses while extending bearing life by minimizing friction caused by wearing out. However, cylindrical rollers enable effective load dispersal, which enhances load capacities and stability [2]. Their shape within the raceway ensures smooth rotation, making systems run better overall [3]. Therefore, grasping how cages interact with cylindrical rollers will help me realize their importance in attaining accuracy and dependability in countless applications.
Understanding Radial Loads and Axial Forces in Precision Bearings
Moreover, from my findings, I learned that knowledge about radial loads versus axial loads is essential in optimizing precision bearings. Radial loads act at right angles to the shafts, hence significantly its ability to bear vertical weight or lateral loads such as those found in wheel hubs and motor shafts. Conversely, axial forces work parallel to the axes of shafts and thus are relevant in thrust bearings constructed for this purpose. Therefore, I can choose the bearings that will work best under specific situations by considering these unique kinds of loads.
What is Super Precision in Cylindrical Roller Bearings?
Differentiating Super Precision from Standard Precision Bearings
Upon my research on cylindrical roller bearings, I have learned that super-precision bearings differ significantly from standard precision versions regarding manufacturing tolerances and performance. In contrast with the standard versions, these super precision ones have more narrow tolerances, thus better rotational accuracy and fewer vibrations during operation. This means these devices can maintain their accurate alignment even when fluctuating loads or high-speed conditions occur. Additionally, super-precision bearings often incorporate advanced materials and specialized surface treatments, which help enhance durability while minimizing frictional resistance. Conversely, they are unlike the standard precision ones, which may not always offer the same level of stability or accuracy. It is a distinction that makes a difference for industries requiring peak performance in aerospace, medical equipment, and high-speed machines. So, understanding these disparities will enable me to make better decisions concerning bearing choices in various high-performance applications.
Advantages of Super Precision Cylindrical Roller Bearings
I have learned from personal experience that super-precision cylindrical roller bearings have apparent benefits, particularly within a high-performance setting. They provide excellent rotational accuracy, resulting in minimum operational vibrations and performance enhancement. This accuracy is necessary for rotating machinery at higher speeds or where it is vital to achieve the correct alignment within certain environmental limits. Moreover, due to superior quality materials and surface treatment options, this bearing lasts longer, bringing down maintenance expenses and downtime periods. Finally they can handle variable loads effectively making them suitable for demanding applications such as aerospace industry where reliability matters most. While choosing super-precision bearings, I can ensure that all my projects meet strict requirements and deliver only successful results.
Applications Requiring Super Precision Bearings
Super-precision bearings are examples of must-have components for any project that require high levels of fidelity & dependability, according to my knowledge acquired through experience. Such requirements exist primarily in aerospace, where particular turbines or landing gear systems cannot do without precision. Similarly, medical devices, including magnetic resonance imaging (MRI) and surgical robots, depend on these bearings for smooth operations and precise movements that affect outcomes if deviated. Also, the semiconductor manufacturing sector employs super precision bearings in tools like photolithography equipment, which can have severe implications for production quality even from a minute deviation in alignment. I am aware that integrating super-precision bearings into those applications makes it possible to ensure the excellent performance and reliability necessary to produce positive results under such circumstances.
How to Maintain and Lubricate Precision Cylindrical Roller Bearings?
The Importance of Appropriate Lubrication in Prolonging the Life of Bearings.
In my research, I have also found that lubrication is critical to extending the life of precision cylindrical roller bearings. Lubrication reduces friction and dissipates heat, thus preventing contamination from fluids. These contaminants can cause bearing failure before its time. The technical parameters that I noted included viscosity, which should generally fall within ISO grade limits recommended by the bearing manufacturer and the method of lubricating whether it’s grease or oil, these must be connected with running conditions (temperature and speed).
I have also learned that having the right amount of lubricant is very important; not enough will result in insufficient protection, while too much will lead to overheating and fluid friction. Timely re-greasing based on regular checks made after a week or so for reapplication, in line with operating environments, ensures optimal performance. By following these guidelines, I believe I can significantly improve my bearing’s life cycle and reliability among demanding industrial applications and more routine machinery.
Best Practices for Precise Bearing Lubrication
From my extensive review of leading resources online, several best practices for adequate lubrication of precision bearings have been distilled. First, I make sure I choose the correct type of lubricant based on bearing types and working conditions. For example, high-speed applications may demand low-viscosity oils while heavy-loading scenarios favor high-viscosity greases. Second, the application method has been given special attention. Precise methods, such as automated systems, are used to get the right dosage amount, hence minimizing wastage while obtaining uniform coverage.
Besides this, I create a regular maintenance schedule that adheres to the manufacturer’s recommendations, enabling me to make regular inspections before levels become exceptionally low due to topping up, which could be critical. Another vital aspect is monitoring environmental elements; hence, temperate variation notes are taken alongside any indication of contamination. Finally, maintaining cleanliness during the lubrication process ensures every surface is free from dirt or debris, protecting the bearings and extending their product life. These best practices will help me maintain high performance in my precision cylindrical roller bearings.
Symptoms of wear and tear of bearings, its effects on operations, and when to replace them.
In my experience, recognizing the signs of bearing wear is vital to keeping machinery running smoothly without unexpected shutdowns. Signs such as grinding, squealing, or unusual noises often indicate surface damage or lack of lubrication. Also, monitor for excessive heat generation above the manufacturer’s limit, i.e., temperature spikes beyond 200°F (93°C). Vibration analysis is another essential parameter; if I notice an increase in vibration levels significantly above the acceptable range, it may indicate imbalance or misalignment issues.
To determine whether a bearing needs replacement, I follow the manufacturers’ recommendation guidelines, which often state-specific indicators like reduced rotational efficiency due to increased friction caused by wearing out. A general benchmark for this is that any bearing that experiences notable performance drops should be replaced, while others that have gone past their L10 lives can also be considered. Staying ahead of these warning signs requires constantly watching out, effectively managing bearing life cycles and ensuring maximum equipment efficiency.
Where to Find Distributors for Precision Cylindrical Roller Bearings?
Top Brands: SKF, NTN, Timken Company, and FAG
In researching top brands for precision cylindrical roller bearings, I looked at the three highest-ranked sites on Google.
SKF: According to SKF’s official site, its cylindrical roller bearings are designed to take high radial loads and perform well under extreme conditions. Important technical parameters of these bearings include a maximum speed rating that can vary depending on a specific bearing series and dynamic load ratings that indicate their ability to resist loading during operation.
NTN: Innovation and quality are key focus areas for NTN’s website. They emphasize the importance of accuracy in their cylindrical roller bearings, noting that properties like surface finish and internal clearance are required for optimal performance. Technical specifications also identify the lubrication method used in each case; this can significantly affect a bearing’s life expectancy, especially if it is used in high temperatures.
Timken Company: Timken stresses that they only produce rigid bearings through trials. The company’s technical documents explain how L10 life expectancy calculations work and what operating temperatures are recommended. They also describe specific load ratings and clearances as essential factors in bearing performance that must be considered when selecting bearings for an application.
These websites contain information that has given me insight into what I need before buying any top precision bearing brand, including its various technicalities, enabling me to maintain my machine’s operational efficiency at all times.
How to Choose the Right Distributor for Precision Bearings
When looking for a distributor of precision bearings, I consider several factors. First, I check whether they offer quality products from reputable brands such as SKF, NTN, or Timken after conducting a thorough survey, which confirms their dominance due to innovations featured in their products. Afterward, I assess how well they will support my needs technically because knowledgeable staff who know specifications such as load ratings or maximum speed might help guide me toward suitable item selection. Also, I analyze these distributors’ inventory levels and lead time to ensure I can get the bearings I want without any delays. Lastly, checking what customers say about the provider and their status in the industry is essential as this will help me know reliable and quality service providers; thus, I can make a choice that will improve my operational efficiency.
Understanding the Availability of Related Products
I studied several suppliers and manufacturers to understand better how related products are available. From my search on top websites, I found that many distributors have stocked not only several precision bearings but also other parts like seals, lubrication systems, and houses. Such extensive inventory ensures continued performance of equipment and compatibility across all accessories. Additionally, numerous vendors offer customized solutions aimed at particular uses that can optimize the running of my business. By appreciating these critical insights, I may ascertain the availability of any supplementary aids needed for adequately matching components with my selected bearings, hence supporting my machine’s durability and dependability over time.
Reference sources
Frequently Asked Questions (FAQs)
Q: What are precision cylindrical roller bearings?
A: Precision cylindrical roller bearings are designed to handle large radial loads and provide high rigidity, making them ideal for various applications in machinery and equipment.
Q: How can I find a distributor for precision cylindrical roller bearings?
A: To find a distributor, search online for authorized distributors or suppliers of brands like NSK that offer precision cylindrical roller bearings. It’s also helpful to check with local industrial supply companies.
Q: What types of configurations are available for cylindrical roller bearings?
A: Precision cylindrical roller bearings are available in various configurations, including single-row and double-row designs, to accommodate load requirements and space constraints.
Q: What is the significance of radial internal clearance in cylindrical roller bearings?
A: Radial internal clearance in cylindrical roller bearings is crucial as it affects the bearing’s performance, load-carrying capacity, and overall efficiency. It must be adjusted appropriately to ensure optimal function.
Q: Can tapered bore cylindrical roller bearings be used in my application?
A: Yes, tapered-bore cylindrical roller bearings are designed for applications where shaft misalignment may occur, making them suitable for various uses, especially in spindle applications.
Q: What materials are commonly used in manufacturing precision cylindrical roller bearings?
A: Precision cylindrical roller bearings are often made from high-quality steel or resin, which enhances their performance and durability under high load capacities.
Q: What are full-complement cylindrical roller bearings?
A: Full-complement cylindrical roller bearings have a maximum number of rollers within the available space. They provide high load-carrying capacity and are ideal for applications that demand high radial load capacity.
Q: What role do lubrication holes play in the performance of cylindrical roller bearings?
A: Lubrication holes in cylindrical roller bearings facilitate proper oil flow, ensuring that the inner and outer rings are adequately lubricated, which helps reduce friction and prolong bearing life.
Q: What is the difference between high radial load-carrying and high load capacity in bearings?
A: High radial load-carrying capacity refers to the ability of the bearing to support forces perpendicular to the shaft, while high load capacity indicates the overall ability of the bearing to manage significant loads without failure.
