In various mechanical systems, single-row rolling bearings play a crucial role since they boost efficiency and reliability, hence leading to improved performance. These types of bearings were made to carry heavy loads while spinning smoothly, thus being used in various industries like automobiles, machines, and many others. This blog post will look at the pros of single-row roller bearings, including their ruggedness, load capacity, and versatility. They will also get an idea of the advantages and uses of these kinds of bearings to enhance and optimize their systems’ efficiency. This article is for you whether you have been working with bearing for the longest time or just starting because it offers insight into why choosing the correct one to suit your requirements is essential.
What are single-row cylindrical Roller Bearings?
A roller bearing’s structure

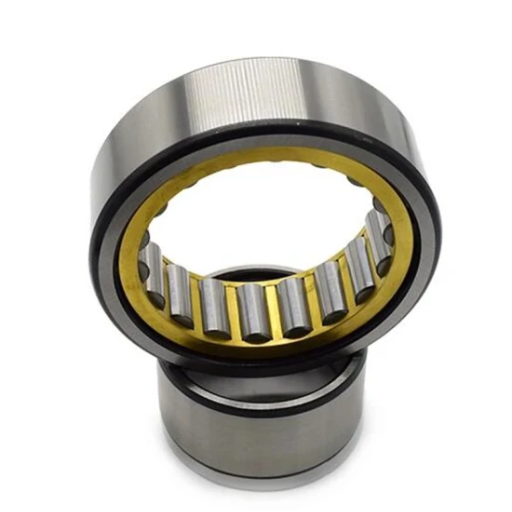

Single-cylinder roller bearings are made up of rolling elements, which include cylindrical rollers, an inner ring, and an outer ring, together with a cage that holds the rollers in position. The races for the rollers, which support radial and axial load, are provided by the inner and outer rings. The cylindrical shape of the rollers is designed to incorporate increased surface contact area, making it possible for such a bearing to carry high loads while minimizing friction during rotations. The role of steel or polymer-made cages is to hold every roller at a certain distance from others, avoiding their contact with each other, hence ensuring optimal performance under various operational conditions. Various applications find single-row roller bearings durable and efficient because of this simple yet effective construction.
How Does a Single Row Roller Bearing Work?
The single row cylindrical roller bearings work by using the cylindrical rollers within them to roll efficiently on the tracks created by the inner and outer rings. Once loads are applied, these distribute them over larger areas, minimizing stress on individual parts and wear rates accordingly. Their design enables the application of heavier radial loads, making them suitable for heavy-duty applications such as reducing gears in vehicles.
Key technical parameters that define the performance of single-row roller bearings:
- Dynamic Load Rating (C): This represents the highest load that can be exerted without breaking down during movement; in most cases, it varies depending on size and type within the range of a few thousand N to several hundred thousand N.
- Static Load Rating (C0): This parameter indicates the maximum loading capacity if the bearing does not move from its place; it has a special value, especially for sudden load generation or shock loading purposes.
- Limiting Speed (n): This term refers to the maximum safe operation speed; lubrication quality, design features, etc., play important roles here.
- Operating Temperature (T): Different kinds of bearings have specific temperature ranges they may operate in, usually from -30°C to +120°C, depending on the materials used.
This understanding helps engineers and equipment designers choose suitable bearings for their respective applications under varied operational environments while ensuring dependability and performance.
What Materials are Used in Single Row Cylindrical Roller Bearings?
Based on my findings during my research, I can say that single-row cylindrical roller bearings are usually made from superior materials to ensure long-term durability and performance. The most common material is high-carbon chromium steel because it has excellent strength and wear resistance. In some instances, stainless steel is used together with other materials, such as ceramics and polymers, to enhance corrosion resistance, especially in moisture. Additionally, I learned about new-age materials like ceramics and polymer composites that contribute to better performance and reduced weight at specific application points. This wide choice of materials supports different operating conditions and prolongs the service life of the components involved.
What Advantages Do Single Row Roller Bearings Offer?
High Load Capacity of Roller Bearings
I find that roller bearings have a great capacity to hold heavy loads. Designing the bearing with rollers instead of balls expands the contact surface on the raceway, making them able to withstand higher radial forces. This is why they are commonly used in applications involving heavy machinery and equipment supporting huge weights. Friction between moving parts is reduced because of the rolling motion of cylinders, which ensures high efficiency and performance. These benefits indicate that single-row roller bearings are highly prized in industries like construction, automotive, and manufacturing, where durability and high load-handling ability are non-negotiable.

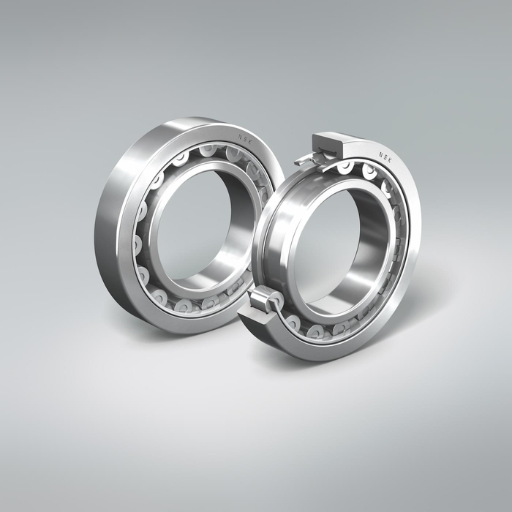

Benefits of Separable Design in Roller Bearings
Accordingly, roller bearings have many advantages due to their detachable design, which improves their use and maintenance. One advantage is the ease with which it can be assembled/disassembled, facilitating faster repair or replacement without special tools. This feature is essential in environments where maintenance must occur frequently to minimize downtime. Additionally, the detachable design simplifies inspection and cleaning while extending bearing life. Interchangeability among other parts was also observed; thus, one can obtain a part specially made for a particular use depending on operational requirements, according to my findings. These advantages go a long way toward increasing the efficiency and longevity of roller bearings across different uses.
Efficiency at High Speeds with Single Row Bearings
This research indicates that single-row bearings have an efficient design for high-speed applications. The streamlined shape reduces friction, while rolling elements ensure smoother operation even under breakneck rotation speeds. Advanced materials and precision engineering found in most good-quality single-row bearings enhance this effectiveness by reducing heat generation and minimizing wear. While consulting a few top resources about this topic, I discovered that such type is ideal when speed should be maximized, or reliability must be achieved; for example, electric motors or turbines would require such bearing technology highly recommended by some experts. In the end, reduced friction and improved robustness mean that single-row bearings are an excellent solution for high-speed applications.
How to Choose the Right Roller Bearing for Your Application?
Considerations: Dynamic Load Rating and Static Load Rating
For any given application, I’m usually mindful of both static and dynamic load ratings. C denotes the dynamic rating for the load, which is the maximum load a bearing can handle without failing in motion; this is important because it ensures that the bearing runs well under normal operating conditions. For example, I always refer to resources like SKF and NSK websites for detailed calculations and tables on various types of bearings.
On the other hand, static load ratings (C0) indicate how much weight or force a bearing can carry when it does not move. This is very important in applications where heavy loads may bear down upon a machine, but no movement occurs, such as when machines are idle. In many cases, these ratings can be hugely different depending on factors such as the size of bearings, among others that are often found in manufacturers’ documents. For instance, choosing materials like chrome steel or ceramics increases these ratings, improving performance under varying conditions.
With technical parameters, I look at:
- Dynamic Load Rating (C): It indicates the carrying capacity when there is rotational motion, usually expressed in newtons
- Static Load Rating (C0): Also measured in newtons this value represents highest amount of load while bearing remains stationary.
- Life Calculations: L10 life denotes hours during which 90% of bearings will not fail at certain loading levels.
In conclusion, after evaluating these parameters, my chosen roller bearings satisfy all requirements placed on them by operations; however, they also demonstrate improved reliability and efficiency.

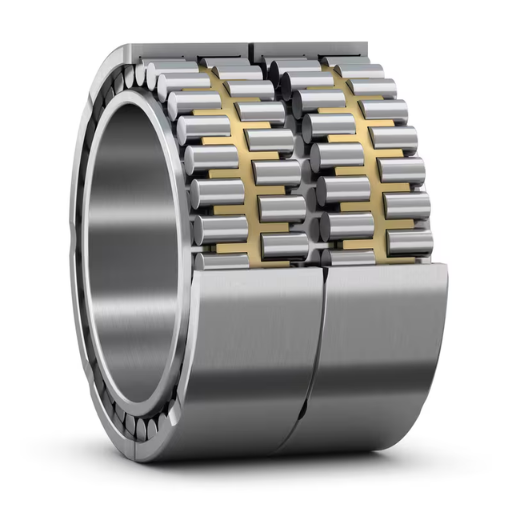

Choosing Between Single Row vs. Double Row Cylindrical Roller Bearings
While selecting between single-row or double-row cylindrical roller bearings, I closely consider specific application requirements and loading states. Typically, single-row bearings are more compact and suitable for areas with limited space because their frictional forces are lower, leading to higher speed capabilities than those related to double-row counterparts. Nevertheless, double-row options are better regarding heavy radial loads and increased stability. This is because the former bears much higher loads with improved rigidity, which are necessary for large machinery or equipment that may have significant forces acting on it. Therefore, my choice is based on an appropriate balance of space availability, load conditions, and performance expectations aimed at ensuring maximum reliability as well as efficiency during the bearing selection process.
How to Efficiently Use Bearing Catalogues?
To use bearing catalogs efficiently, I first identify the requirements of my application, such as load capacity, speed, and environmental conditions. After that, I would compare the specifications provided in the catalog with those mentioned in a specific type of bearing, i.e., cylindrical roller bearings that suit me best. Also, I need to confirm whether dynamic and static load ratings match my operational demands plus L10 life calculations before finalizing the same. On top of this, I take advantage of search features available in catalogs, like selecting size or refining by load type, to simplify my selection task. Moreover, where possible, manufacturers would offer technical support services provided by manufacturers to clarify any confusion and ensure the suitability of these products for given applications. Doing so time and again allows me to select bearings more quickly while also adding value through longer-life references resulting from improved decision-making processes.
What Are the Common Applications of Single Row Cylindrical Roller Bearings?
Single-Row Bearings Used in Machine Tools
Based on my experience, single-row cylindrical roller bearings are popularly used in machine tools because of their high efficiency in supporting radial loads and low friction nature. They are most suitable when the demand is for precision and reliability in high-speed rotating machinery such as lathes and milling machines. Their design enables them to handle higher radial load carrying capacity with greater stiffness, this makes them ideal for maintaining close tolerances and uniform performance under a wide range of operating conditions. Thus, by choosing an appropriate single-row bearing type, I can optimize its overall functionality, thereby increasing the lifespan of machine tools.
Applications Involving Radial And Axial Loading
From my experience, Single row cylindrical roller bearings are excellent where axial and axial loading exist on the same bearing. These bearings also accommodate significant radial forces while having some degree of ability to bear thrust-loaded situations. For example, these types may be used in conveyors or automotive transmissions where they need to cope with tremendous radials alongside slight axial motions; thus, combined loading capabilities enable me to withstand even harsh environmental conditions without any system failure compromising my operation’s effectiveness. I can upgrade my mechanical systems’ ability by choosing an appropriate size and type of single-rowed cylindrical roller bearings.
Why Choose Roller Bearings for High Radial Loads?
I must consider roller bearings for hoisting heavy radial loads if I want optimal performance from my machines. Moreover, these kinds have rugged construction that transmits loads over a larger contact area, reducing stress on particular components, unlike traditional ball bearings and require little rolling resistance, making it possible for me to enjoy smooth functioning, including high-efficiency applications available today than one would face no problem with applying lubricants frequently due to reduced friction hence lesser heat provision promoting longer service life, especially within harsh environments. Finally, the higher load-holding capacity and stiffer nature of rolling bearings make them a superior choice even during the most demanding working conditions regarding maintaining precision and reliability in my machinery.
What Maintenance Practices Are Recommended for Roller Bearings?
How to Inspect Bearing for Wear?
To properly inspect roller bearings, I start by visually checking for cracks, rust, and discoloration on the outer and inner races. Afterward, I will rotate the bearing by hand to listen for any unusual sounds or feel any rough spots indicative of internal damage. Also important is the use of a feeler gauge in measuring clearance, which should fall within the tolerances specified by the manufacturer. In addition, I also employ a micrometer to measure the dimensions of rollers and raceways to identify wear signs. I must consistently monitor lubricant conditions and temperatures that may reveal potential issues early enough to maintain my machinery at its peak performance easily.
Best Practices for Lubricating Roller Bearings
In terms of lubricating roller bearings, it is crucially important that I choose the right type and amount of lubricant recommended by manufacturers. Based on suggestions from top industry sources, I abide by these best practices:
- Choosing the Right Lubricants: When using these products for my machine operations, I am always careful to ensure their compatibility with the prevailing operating conditions, such as load capacity and temperature range; this means going with low-viscosity oils more suitable for high-speed applications or adhering instead to thicker greases when dealing with heavy loads scenarios.
- Maintaining the Correct Quantity of Lubricants: To achieve this goal, regular checks must be carried out, and appropriate adjustments must be made using the manufacturer’s guidelines until the correct quantity is reached. Normally, this implies ensuring even distribution around raceways and rolling elements without building up too much, which could result in overheating.
- Following Lubrication Intervals: Consistency in recommending various durations after which oiling should be done depending on size and application types are key factors why we usually go through the provided instructions just like every 500 hours or after certain cycles, thus preventing the wearing-off process.
- Keep an Eye on Operating Temperature: Any temperature rise could easily indicate under lubrication or anything else unwanted. The recommended operating temperature range is between 70°C and 120°C; thus, I have to monitor it constantly.
- Avoiding Contamination: It is my responsibility to ensure that there are no foreign materials in the lubricant. This includes using shields or seals and keeping the surroundings clean during maintenance to prevent dirt from getting into bearings.
Following these guidelines makes roller bearings last longer and work more reliably in my machinery.
What Are the Innovations in Roller Bearing Technology?
Advances in Materials for Greater Durability
While investigating roller bearing advancements, it has been observed that applying advanced materials dramatically improves durability. For example, lighter materials such as high-performance ceramics and hybrid bearings made from steel and ceramics are now available with improved wear resistance and better temperature performance. Moreover, modern applications necessitate the use of nano-coatings to reduce surface friction against moving components and protect them from corrosion. Consequently, I can choose bearings that meet and surpass today’s demanding requirements, thus ensuring longer service life and reduced maintenance costs.
The Significance of CNC Machining on Bearing Precision
While researching how CNC machining affects bearing precision, I discovered that CNC technology is vital to the production of high-quality roller bearings. With the CNC manufacturing process in place, various complex shapes and dimensions can be produced with great precision, as close as ±0.001 mm. The raceways must have this precision so that rolling elements can fit snugly, minimizing friction and maximizing efficiency.
For example, it was found that best practice suggests running out less than 0.05mm to allow the smooth functioning of these ball bearings under dynamic loads. Additionally, complex geometries associated with optimized load distribution become possible when using CNC machining technology. In summary, when combined with the above-mentioned advanced materials and surface treatments, CNC machined bearings offer superior performance capabilities and a lifespan over time that is higher than those alternatives available within these challenging industries, hence enhancing machine performance by far depending on the choice of makes regarding their technologies embraced leading to increased lifespan.
Reference sources
Frequently Asked Questions (FAQs)
Q: What are single-row cylindrical roller bearings?
A: Single-row cylindrical roller bearings are designed to support radial loads and can accommodate limited axial displacement in one direction. They feature cylindrical rollers that allow for high radial load capacity.
Q: How do nu and nj bearings differ?
A: NU bearings have no ribs on the outer or inner ring, allowing axial displacement. NJ bearings have ribs on the outer ring designed only to accommodate axial loads from one direction.
Q: What is the advantage of full complement cylindrical roller bearings?
A: Full-complement cylindrical roller bearings have the maximum number of rollers that can fit within the bearing space, offering higher load capacity and improved performance, particularly in limited-space applications.
Q: Can single-row cylindrical roller bearings be used for axial loads?
A: Single-row cylindrical roller bearings are primarily designed for radial loads. However, certain types, like NJ, can handle axial loads from one direction, while others, like NU, are better for applications with no axial load requirements.
Q: What materials are commonly used in single-row cylindrical roller bearings?
A: Common materials include pressed steel for the outer and inner rings and machined brass for cages. These materials provide strength and durability, which are critical for high-performance applications.
Q: What is the significance of the snap ring in roller bearing assemblies?
A: The snap ring secures the bearings within the housing, preventing axial movement. This is important for maintaining alignment and ensuring the assembly’s stability during operation.
Q: How do locating bearings differ from free-end bearings?
A: Locating bearings, such as the NJ series, are designed to support axial loads from one direction and restrict movement, whereas free-end bearings, like NU, allow for axial displacement in one direction.
Q: What are the features of double-row cylindrical roller bearings?
A: Due to their larger roller count, double-row cylindrical roller bearings can support higher radial loads than single-row types. They are commonly used in applications requiring robust performance and stability.
Q: What is the benefit of using brass cages in cylindrical roller bearings?
A: Brass cages offer better strength and wear resistance than plastic cages. They can handle higher temperatures and are suitable for heavy-duty applications, enhancing the bearing’s lifespan.
