They are essential parts of machinery and applications, with a higher capacity for bearing load and durability. However, the bearings must be appropriately installed to enable them to function at their best and for an increased lifespan; any wrong method can lead to premature failures, causing more maintenance costs. This article will help you install single-row cylindrical roller bearings correctly. This will include covering essential tools, steps during preparation, methods of installation, and some common mistakes that should be avoided, thus equipping you with what is needed for a successful installation. Whether you are a professional or just like doing things by yourself, this manual will make the process seem easy, and whatever technical jargon is used will make sense then.
What are single-row cylindrical Roller Bearings?

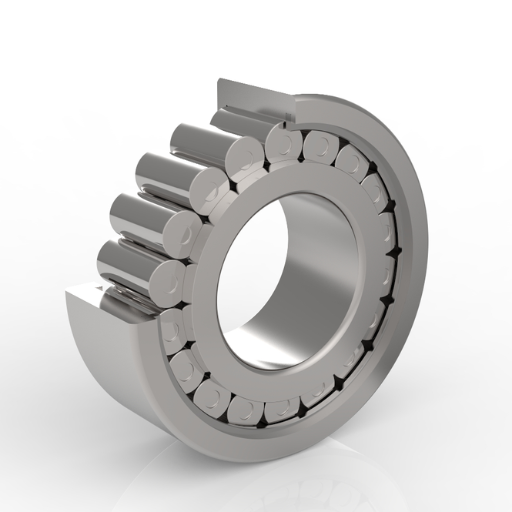

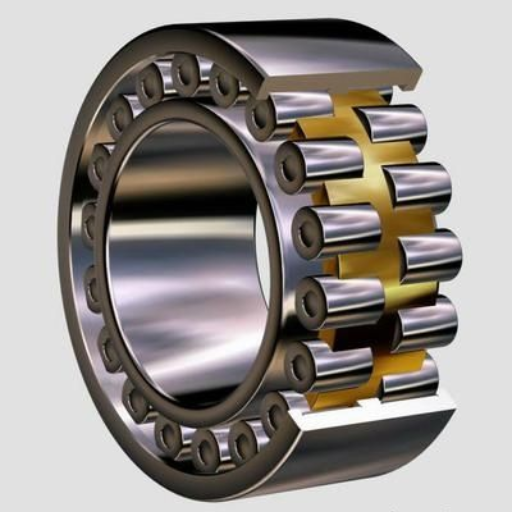

Comprehending the Construction of a Single Row Cylindrical Roller Bearing.
Several essential components constitute a single-row cylindrical roller bearing, which operates harmoniously to enable easy rotary motion. A stable raceway for various cylindrical rollers is created by an outer ring and an inner ring to distribute loads equally. Compared to traditional ball bearings, this design provides a larger contact area, improving their load-carrying capacity. Besides, the bearing has a cage that keeps the rollers aligned and reduces friction, thus ensuring operational efficiency. These bearings are designed for high radial loads and moderate axial loads; as such, they are applicable in various fields ranging from industrial machinery to the automobile industry.
Noteworthy Aspects of Single Row Cylindrical Roller Bearings
- Large Carrying Capacity: The existence of multiple contacts between balls and raceways means that radial load-carrying capacities for single-row cylindrical roller bearings are much higher than those for ball bearings. This makes them best suited for applications requiring substantial loading support.
- Low Friction: When rotating, cylindrical-shaped rollers and the cage minimize friction levels, which translates into increased efficiency and lower operating temperatures, hence a prolonged bearing lifetime.
- Versatility: The potential to handle radial and axial loads makes these bearings suitable for diverse industries, including machine tools, conveyor systems, and automotive components.
- Ease of Installation: The single-row cylindrical roller bearing design allows for easy installation without needing special tools in many cases. This is beneficial in maintenance and replacement, enhancing operational efficiency.
- Technical Parameters:
- Dynamic Load Rating (C): This parameter shows the bearing’s load capacity under dynamic conditions and is typically expressed in kilonewtons (kN). For instance, a bearing rating of 50 kN can carry loads effectively within this range.
- Static Load Rating (C0): This rating represents the maximum load that a bearing can support without causing permanent deformation. Understanding this rating is essential because it enables one to understand the limits of a given bearing under static conditions.
- Speed Rating (nG): It specifies the highest speed at which a bearing can work safely and effectively, and it is usually expressed in revolutions per minute (RPM).
In conclusion, single-row cylindrical roller bearings are highly preferred in various engineering fields due to their load-carrying capacity, low frictional forces, adaptability, and ease of mounting. The provided technical parameters also highlighted their suitability for different working environments.
Applying Single Row Cylindrical Roller Bearings
Single-row cylindrical roller bearings are extensively used for many applications because of their robust design and adaptability. For instance, these bearings are essential in gearboxes and differentials in the automotive industry, and they can handle both radial and axial loads effectively. Similarly, they are also used in machine tools to support high-speed spindles that allow for precision operations during manufacturing processes. Furthermore, I can find these bearings in conveyor systems, guarantee smooth movement and stand the test of time even if continuously operated upon. Allowing machinery not to oscillate under heavy pressure and bearing this weight makes them essential across a range of sectors, improving the performance and dependability of equipment.
What is the Correct Procedure for Installation?
Preparing the Seat of Bearing for Installation
For successful single-row cylindrical roller bearings installation, the first step is to clean the bearing’s seat thoroughly to remove any debris, rust, or old lubricant. The surface needs to be smooth and without imperfections, as this will make the bearing seat fit properly and reduce premature wearing. I then examine the alignment and dimensions of the bearing seat to ensure that they align with those required by a specific type of bearing being installed. This process can also involve applying a light layer of lubricating oil to allow easy bearing insertion into place and minimize frictional forces during rotating operations. Lastly, keeping bearings at an appropriate temperature is essential because too much heat or extreme coldness can interfere with their fitting and performance. When I expressly set up my seat for such bearings, I can ensure they work for longer before replacement.
Approach for Mounting Single Row Cylindrical Roller Bearings
- Choosing Appropriate Tools: The initial level involves collecting all necessary tools, such as press machines built explicitly for this task. Additionally, one should have sealants suitable for said purpose and instruments for measurements that guarantee accurate installation.
- Get Ready for the Working Area: Ensure you clean your working area of dirt so nothing will stop your bearings from mounting when you start working with them.
- Inspect the Bearing: I always scrutinize cylindrical roller bearings before installing them. I check whether they contain any damages and correct any manufacturing mistakes so that they comply with the requirements.
- Heat the Bearing (if applicable): I can immerse the bearing ring in an oil bath or use a bearing heater to warm it. This is how metal expands, helping me load it easily on a shaft.
- Align the Bearing: To fix it, I usually have to align a bearing along its housing or shaft and slip it down, avoiding hitting anything that may cause damage.
- Use a Bearing Press: Sometimes, to ensure proper bearing installation (such as keeping everything aligned), one may be forced to employ a bearing press, which will also help achieve an even force application.
- Secure the Assembly: Finally, when mounting is done, I secure it properly using retaining rings or other fasteners specified by the manufacturer’s instructions for maintaining stability during operation.
- Check for Free Movement: Once installed, the bearing rotates, enabling me to confirm if there is free movement without undue resistance, which would imply incorrect placement and misalignments.
I strictly adhere to these procedures so as not to create any errors during mountings of single-row cylindrical roller bearings, maximizing their lengths of service and utility.
Items Needed for Installation
To ensure that the installation process is successful for single-row cylindrical roller bearings, I need to come up with several necessary tools. Some of them are a bearing press, which helps to apply equal force during installation without causing any damage, and specialized heating equipment, such as a bearing heater or oil bath, that ensures it gets a perfect fit. I also use precision measuring tools to confirm the alignment and dimensions of the bearing and housing. In addition, rubber mallets can help make minor adjustments while retaining ring pliers come in handy when tying together all the pieces. These materials enable me to do the installation confidently and accurately.
How to Ensure Proper Clearance and Tolerance?
Significance of Clearance in Bearing Installation
It is important to note that accurate clearance must be maintained during bearing installation for them to perform optimally and have a long life. It is good to have some space so that the bearings can expand with heat, oil can pass through them, and there will be no noise when they are working; this way, we will reduce cases of wear out and sudden failure. I take note of radial and axial clearances as indicated by the manufacturer since these allowances directly impact bearing efficiency. In addition, maintaining proper clearance also prevents overheating or vibration problems that could jeopardize the entire system. I ensure that my bearing setup has an appropriate space between its rings, guaranteeing reliability throughout operation under different load conditions.
Tolerances and how to understand them in cylindrical roller bearings
Comprehending tolerances is essential for proper fitting and performance in cylindrical roller bearings. In the engineering dimension, tolerance relates to that permissible limit of variation, which is critical in manufacturing and installation. I am focused on specific tolerances established by the manufacturer of these bearing guides. Typically, such measurements give a clue on bearing sizes that are appropriate for particular applications since they help me establish variations regarding inner and outer rings. By doing so, I can ascertain the correct size and fit of the bearing for its original purpose, thus achieving optimal load distribution and minimum friction. Observing such limits would be helpful as it avoids excessive wear or earlier damages, making the assembly more reliable.
Test and adjust clearance after installation
The test ensures that the clearance is within acceptable limits after installing cylindrical roller bearings. A typical starting point for me is to check by hand, spinning it, listening for unusual noises, or feeling resistance, which could indicate incorrect clearance. Then, I would use precision tools such as feeler gauges to directly measure the clearance and ascertain whether it falls within the manufacturer’s specifications. If adjustments are needed, I achieve the best clearance through incremental steps by adjusting shims or altering mounting conditions. Additionally, there should be regular monitoring and maintenance procedures; all these tests and adjustments should be documented to maintain a consistent bearing assembly record, hence guaranteeing this device’s long-term reliability and performance.
What Factors Affect Load Ratings?
Dynamic Load Rating for Single Row Cylindrical Roller Bearings
A dynamic load rating is a parameter that determines the capacity of a bearing to support loads while it is in motion. I base my calculations on the design and material quality of the bearing, as well as specific operating conditions like speed and temperature. It indicates the load (maximum) that can be supported by the bearing when it operates under one million revolutions with some standard life expectancy. For this reason, I make sure that I consider factors such as application specifications so that it can function well at all times, even when exposed to different types of loads. Besides, proper lubrication and alignment also help maintain maximum carrying capacity, thus determining its service life in general.
Explaining Static Load Ratings
The static load rating reveals the pressure that can be placed on a stationary bearing without any signs of deformation. In my field, this is critical in understanding how bearings behave at a standstill or under static conditions, especially during unexpected plant shutdowns. The static load rating is commonly expressed as a maximum load (usually in kilonewtons). I typically determine it by looking at the geometry, materials used, and contact conditions between rolling elements and raceways. Note that exceeding this rating will result in permanent damage or failure and, ultimately, costly downtime. As such, I always consider static loading ratings when selecting the appropriate bearing for an application.
Radial Loading Impact on Bearing Performance
Bearing performance and durability are significantly influenced by the radial load. My bearing experience has shown me that when a bearing is subjected to a radial load, it creates stress in its rolling elements and raceways that could result in increased wear or failure if not properly controlled. When selecting and applying bearings, I consider the magnitude and direction of the radial loading to correspond to the bearing’s specifications. High radial loads can cause problems like overheating and distortions, eventually shortening a bearing’s life span. Hence, maintaining appropriate balance in radial loads is critical for ensuring that the bearing operates efficiently and reliably within its design limits.
How to Lubricate Single Row Cylindrical Roller Bearings?
Types of Lubricants for Roller Bearings
In my experience, proper selection of lubricant for single-row cylindrical roller bearings is vital to their good functioning and durability. I mostly like using quality mineral or synthetic oils as they have excellent lubrication properties and thermal stability. Also, greases, including lithium and calcium, are suitable since they stick on surfaces, leading to lesser wear and friction under different operating circumstances. Furthermore, the operating temperature and tendency toward contamination also play a role; therefore, I often choose greases with additives that increase resistance to oxidation and corrosion. In conclusion, ensuring that these are compatible with the bearing material and application considerations is vital to keep the system running smoothly.
Lubrication Interval and Amount Recommendations
After conducting research and gaining insights from leading industry sources, I determined the frequency at which single-row cylindrical roller bearings should be lubricated, using factors such as operating conditions, loadings, environmental conditions, etc. Generally speaking, I would advise lubricating your bearings every 500-1000 hours if you use them for standard applications. However, this frequency will sometimes increase to 250 hours under heavy loads or in heavily contaminated environments.
How important is lubrication in expanding the operating life of bearings?
I have come to understand that proper use of lubricants ensures the long life of bearings by reducing friction and corrosion that may result in premature failure. Some websites claim that proper lubrication can reduce operational heat and protect against contaminants leading to corrosion and damage. In addition, it is also necessary to maintain adequate amounts of oil or grease in order for bearings to run smoothly under different loads which correspondingly affects their durability. Quality assurance on bearing operation and performance can be attained when an effective lubrication scheme based on site conditions such as temperature, load, and speed coupled with the requirement for special additives is incorporated.
What Common Issues Can Occur During Installation?
Misalignment During Installation
In my own experience, the problem of alignment during installation is crucial to guarantee the best performance and durability of bearings. Because I have learned always to verify that shafts are aligned with each other using dial indicators or laser alignment systems, this gives me an insight into any discrepancies. Once I detect misalignment, I adjust my shims and relocate these bearings and machine parts to align their axes correctly. This method helps me visually inspect the installation while having straight edges for assistance. After that, if everything has been corrected in case of misalignments, it is time to do a thorough recheck because all components must be within allowable tolerances, reducing the risk of rapid wear and tear resulting in inevitable machine breakdowns. It contributes significantly to ensuring more reliability for the whole machine.
Recognizing and Resolving Friction Problems
I think friction problems can considerably dampen bearings’ performance and efficiency. To identify friction issues effectively, I start by monitoring the temperatures and noise levels of the machinery during operations. An unexpected temperature hike or strange sounds typically infer over much fiction. When such indications occur, I thoroughly examine the lubrication system to ensure that it is functioning correctly and that the correct type of lubricating oil has been used. If inadequate lubrication is not the problem, other factors that could compromise bearing surfaces include contaminants or wear. These may involve cleaning the system, replacing damaged parts, or adjusting the load to reduce friction. This proactive measure helps solve immediate problems and improves the longevity and reliability of an entire assembly.
Consideration of the Effects of Poor Installation
Inaccurate installation of bearings can lead to many problems, significantly affecting machinery performance and its service life. In my review conducted using the topmost references available, it is evident that uneven wear, increased friction, and high heat produced, thus leading to premature failure, can be caused by misalignment. I concentrate on these essential technical parameters:
- Radial and Axial Runout assesses the variance from the true circle or alignment. Too much runout may induce vibration and wear, and the maximum allowable limit is usually 0.10mm for most applications.
- Clearance: Appropriate bearing clearance is extremely important; too little causes overheating, while too much leads to instability. Generally, a clearance range between 0.025 mm and 0.075 mm is considered optimal for standard applications.
- Load Ratings: Bearing dynamic and static loads should be observed to avoid exposing them to fatigue failure risks. I certify that the applied loads fall within the bearing’s indicated maximum capacity, which must be reflected in the manufacturer’s data sheets.
By considering such aspects during installation, I can greatly improve reliability and operability while preventing costly stoppages due to bearing failures.
Reference sources
Frequently Asked Questions (FAQs)
Q: What is the role of the cage in single-row cylindrical roller bearings?
A: The cage in single-row cylindrical roller bearings helps to separate the rollers, ensuring even load distribution and minimizing friction. It also prevents contact between the rollers, which extends the bearing’s service life.
Q: How do I properly install a seal on a cylindrical roller bearing?
A: To properly install a seal, ensure it is aligned correctly with the bearing housing and the inner ring. The seal should fit snugly to prevent contamination while allowing for the necessary radial clearance.
Q: What should I consider when creating bearing arrangements with cylindrical roller bearings?
A: When creating bearing arrangements, consider the load types (radial and axial), the speed of operation, the expected service life, and the bearing compatibility with the housing and seals. Ensuring the correct selection of bearings is crucial for optimal performance.
Q: Can single-row cylindrical roller bearings handle angular loads?
A: Single-row cylindrical roller bearings are primarily designed for radial loads. However, they can accommodate some angular loads if the axial direction is within permissible limits. For higher angular loads, consider using spherical roller bearings instead.
Q: What factors should I consider when selecting bearings for my application?
A: Key factors in the selection of bearings include the type of load (radial or axial), speed, operating conditions (temperature and lubrication), the dimensions of the bearing housing, and the intended service life. Additionally, consult with a reliable supplier for recommendations.
Q: What is a complete complement design in cylindrical roller bearings?
A: A complete complement design features maximum rollers that can fit in the bearing without a cage. This design increases axial load-carrying capacity and is beneficial in applications with high load capacity, but it may limit speed due to higher friction.
Q: How do the inner ring and outer ring diameter affect bearing installation?
A: The inner ring and outer ring diameter play a critical role in ensuring the correct fit of the bearing in the housing. An interference fit is typically used for the inner ring, while a transition fit is often used for the outer ring to secure the bearing in place and ensure proper alignment.
Q: What is the importance of the rib in cylindrical roller bearings?
A: The rib in cylindrical roller bearings helps to guide the rollers and maintain their position. It also limits axial movement, ensuring stability and efficiency in rolling bearings.
Q: What maintenance practices can extend the service life of cylindrical roller bearings?
A: Regular maintenance practices include ensuring proper lubrication with suitable viscosity oil, checking for signs of wear or contamination, and monitoring operational temperatures. Maintaining the right clearance and avoiding overloads can also improve the bearing’s service life.
Q: What are the advantages of using split bearings in specific applications?
A: Split bearings are easier to install and replace because they can be separated into two halves. This design minimizes the need for disassembly of surrounding components and is ideal in situations where space is limited or when bearings are replaced frequently.
