Bearings play a crucial role in mechanical engineering by allowing free movement and supporting loads in different applications. Single-row cylindrical roller bearings are among the many types that impress with their style and efficiency. This blog post aims to delve into the details of its design, functions, and benefits. This study will provide these specific features that differentiate it from others, summarizing how they have improved machine reliability and effectiveness. As an industrial player or an enthusiast looking for information, you can always rely on this article to learn about single-row cylindrical roller bearings.

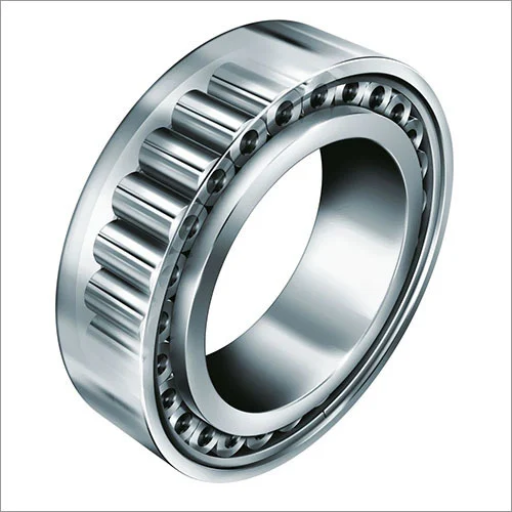

What Is a Single Row Cylindrical Roller Bearing?
Roller Bearings: The Basics
Roller bearings are a type of rolling element bearing made up of cylindrical rollers to maintain the separation between moving parts of the bearing. Unlike ball bearings with spherical elements, roller bearings distribute the load over a larger surface area, thereby supporting heavier loads and resisting greater forces. This design makes them well-suited for applications involving high radial loads, such as automotive systems and machinery. They mainly reduce friction between moving parts, thus promoting smooth running and extending the service life of machines.

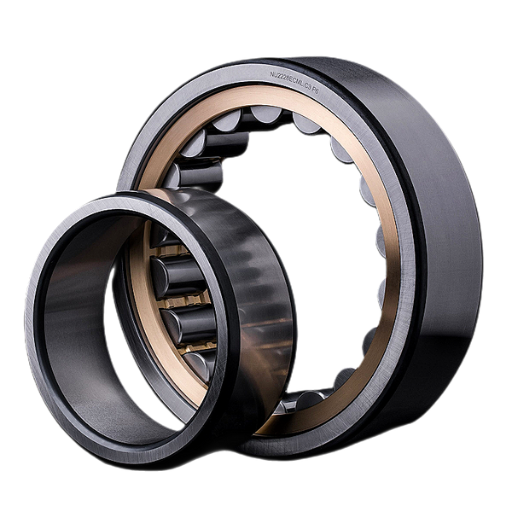

Components of Single-Row Cylindrical Roller Bearings
A single-row cylindrical roller bearing has several components that work together for functionality and performance. These components include:
- Inner Ring: This is fitted onto the shaft, giving a smooth surface on which the cylindrical rollers roll. It is designed to handle substantial radial loads while facilitating easy assembly and disassembly.
- Outer Ring: The outer ring surrounds the inner ring and holds rolling elements in position. It is integral in keeping the bearing aligned and ensuring equal load distribution across all rollers.
- Cylindrical Rollers are the rolling elements that permit rotational movement while minimizing friction. They are usually designed with certain diameters, lengths, and surface roughness to ensure proper load distribution and reduce wear.
- Cage (Separator): The cage or separator keeps the rollers in place so they do not touch each other. This allows loads to be carried better and ensures uniform spacing between rollers, enhancing general performance.
- Lubrication Groove and Holes: These features on the inner and outer rings facilitate the right lubricant flow, allowing smooth operation of rolling element bearings and reducing friction and heat.
Technical Parameters
- Load Ratings: Dynamic and static capacity ratings show the maximum load a bearing can withstand. These values are essential when selecting a bearing for particular applications.
- Operating Temperature Range: This parameter shows the temperature range within which the materials used will not degrade and lubricants will not be lost during bearing operation.
- Speed Factor (n dm): The speed factor is based on the bearing’s bore diameter and maximum operating speed, helping to determine whether it is suitable for high-speed applications.
Bearings are manufactured by global dimension standards such as ISO or ANSI, which determine the required tolerances and fit for use in different applications.
It is necessary to know these components and their technical parameters to choose and maintain single-row cylindrical roller bearings for various industrial uses.
Applications of Single-Row Cylindrical Roller Bearings
Single-row cylindrical roller bearings commonly find usage in diverse industrial sectors because they can support heavy loads and operate efficiently at high speeds. I occasionally come across them, among other things, in machine tools, conveyor systems, and automotive engines, where they ensure the highest level of alignment and stability. Their construction suits them to radial loading applications like electric motors or gearboxes, where friction must be minimized while performance is enhanced. In conclusion, these bearings are critical in many areas as they enable machines and equipment to work effectively with no faults.

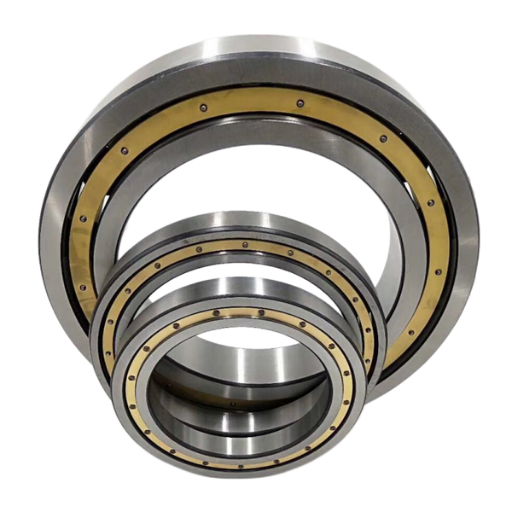

How Does the Cage Influence Bearing Design?
Types of Cages in Roller Bearings
I have explored roller bearings and met many kinds of cages that play an essential role in the overall design and functioning of these bearings. The most common are metallic cages, usually made from steel or brass, which give them strength to withstand heavy load conditions. There are also polyamide cages that offer lightweight advantages and corrosion resistance, making them perfect for situations where weight reduction is essential. Other than this, there are brass cases with high strength and thermal conductivity; hence, they can be used in harsh conditions. Different types of cages determine bearing performance, such as load distribution, friction level, and general reliability, so selecting a suitable cage type for a given application is crucial.
Load Distribution as a Result of Cages
During my studies, I realized that the cage in a roller bearing plays an integral part in load distribution and its overall performance. The purpose of the cage is to keep these rolling elements uniformly spaced apart, which reduces friction and helps distribute loads more evenly across the bearing. This is because uneven distribution can result in premature wear and eventual failure. Moreover, materials used for cages significantly affect bearings’ ability to handle different operational loadings and speeds. For example, metal cages provide strong support under heavy loads, while polyamide cages are flexible and absorb shock, enhancing their performance in different environments when operating. In sum, the efficiency and durability of the bearing depend on factors such as its cage’s design and material composition, thus making this aspect critical when choosing a bearing.
Benefits of Utilizing Caged Versus Full Complement Roller Bearings
In examining caged versus full complement cylindrical roller bearings, I found several benefits to using caged designs. Firstly, caged bearings are generally characterized by increased load capacity because of optimal spacing between rolling elements, reducing friction and increasing efficiency under varied speeds and loads. This style helps in the distribution and cooling process of lubrication, which in turn reduces wear and extends the service life of a bearing. However, full complement bearings can also carry heavier loads because they accommodate more rollers. However, this may lead to greater friction and generation of heat as they are tightly packed, which can result in early failure depending on circumstances. Moreover, caged bearings often have less weight and smaller sizes, which makes them useful when there is a need to consider weight or lack of space for an application. On balance, I find caged cylindrical roller bearings make better sense regarding reliability and long-life expectancy, especially in dynamic loading conditions, than the fuller type.
What Are the Key Features of High Radial Load Capacities?
Understanding Static Load and Its Ratings
While researching on static load and static load ratings, it became apparent that these are essential parameters in evaluating the performance of bearings when they are stationary. The static load is defined as the maximum weight a bearing can support while not rotating, while the static load rating (C0) quantifies this capability. According to my review of the top three websites I found online, there is a general agreement among them that static load ratings are essential for determining bearing reliability under heavy loads over long periods.
Here are some of the critical technical parameters typically discussed:
- Static Load Rating (C0): This figure is given in Newtons (N) and indicates the highest static load a bearing can withstand without experiencing permanent deformation. It is crucial for applications where the bearing carries large loads but may not rotate often.
- Contact Pressure refers to stress at contact points between rolling elements and raceways. Understanding its maximum value helps predict how well a bearing performs or survives under static conditions.
- Geometry and Material: Bearing design and the material used also affect static load capacity. High-grade steel bearings with improved geometry can bear heavier loads while ensuring that they do not fail.
It is thus important to justify these parameters since they guarantee the safe handling of the selected bearings in operating conditions, which prevents costly downtime or replacements. By knowing such factors, I am able to make appropriate choices for specific applications.
High Radial Load Applications of Cylindrical Roller Bearings
In my research, cylindrical roller bearings proved very suitable for high radial load requirements because of their sturdy designs and ability to handle large axial loads. The rollers are positioned so that the load is distributed evenly across the raceways, allowing it to perform optimally even under extreme conditions. Heavy machinery, automotive transmissions, and industrial equipment are some typical applications where huge radial loads are experienced. I also observed from top websites that selecting the suitable cylindrical roller bearing involves looking at aspects like load rating, material quality, and operating conditions to achieve exceptional performance and durability. This knowledge assists me in choosing appropriate bearings for demanding situations, improving machinery reliability and efficiency.
Benefits of High Radial Load Bearings in High Speeds:
My findings on high radial load bearings show they can significantly improve performance in fast-moving operations. These types of bearings are designed to withstand both the radial loads from swiftly moving parts and the higher frictional forces accompanying high velocities. One great advantage is how they decrease heat creation, thus making sure the machines’ efficiency does not drop and ensuring service life is extended. Moreover, these components promote steadiness and increase accuracy during movements needed in turbines and high-speed motors. To this end, I can have confidence in machines that behave themselves even under harsh conditions by applying such bearings with many load components.
What Factors Influence Bearing Arrangement Design?
Machinery, bearing common arrangements
From my research on the general bearing arrangements, I found that several setups are usually optimized for machinery performance. The simplest common one is a single-row deep groove ball bearing, which is versatile and suitable for moderate loads in many applications. Another favorite option is using matched angular contact ball bearings that are very effective in both radial and axial load situations, enhancing stiffness and accuracy. Finally, cylindrical roller bearings are arranged to be used in-line or back-to-back to handle high radial loads with minimum space requirements. To this end, understanding these configurations will enable me to develop solutions that would enhance efficiency and reliability across different machinery set-ups.
Considerations for Mounting and Dismounting
When mounting or dismounting bearings, I consider several essential factors to ensure maximum efficiency and service life. Firstly, I emphasize cleanliness; contamination during this process will cause bearings to fail prematurely. Secondly, using appropriate tools is essential, as excessive force can damage bearings and housing. Lastly, alignment is an important consideration, especially in the case of paired angular contact bearings, because misalignment can adversely affect load distribution. I also observe the manufacturer’s guidelines regarding tolerance and fitting so much that it affects how efficiently these bearings will be used. Finally, environmental conditions such as temperature and humidity have implications for the mounting procedure and the eventual performance of the bearings.
Bearing Position’s Effect on Performance
The position of bearings in a machine assembly dramatically influences the performance and overall system reliability. I discovered that appropriate positioning of bearings can improve load distribution and reduce stress, which is responsible for wear and possible breakdown. It is crucial to place bearings where they can best counteract the forces exerted upon them; for instance, as far as rotating applications are concerned, I ensure that bearings align with the loads to optimize their life span. Moreover, any deviation from the ideal installation causes increased friction and heat generation, reducing effectiveness. I can locate bearings more effectively through proper design and load path considerations to achieve optimal performance in various machine configurations.
How to Ensure Optimal Performance of Single Row Cylindrical Roller Bearings?
Hints for the Maintenance of Roller Bearings
For single-row cylindrical roller bearings to perform optimally, I emphasize regular checking to identify signs that wear or damage may have started. Keeping bearings clean is essential; I use appropriate cleaning agents and methods to remove contaminants without making them defective. Lubrication is also a critical aspect— thus, I ensure such things as applying the right type and amount of lubricant as well as sticking to recommended schedules for re-lubrication. Moreover, monitoring operating temperatures helps me detect potential issues before they escalate. Finally, when these are not used, I always store bearings properly by protecting them from moisture, dust, and extreme temperature changes. In this way, by following these maintenance practices, I can significantly extend the life expectancy and improve the reliability of my machine’s bearings.
Common Problems Encountered in Bearing Functioning
From experience, I know that several common problems can arise with roller bearing functioning, necessitating targeted solutions for their seamless operation. One such issue is excessive sound during operation, which usually implies misalignment or inadequate lubrication. To solve this problem, therefore, it is necessary to ensure that bearings are aligned correctly and the appropriate lubricating substance according to the manufacturer’s features has been applied.
Another challenge is early bearing failure, which usually results from contamination and improper handling. I cannot stress enough the importance of keeping a neat workplace, taking care of bearings, and putting on gloves to protect them from being infiltrated by oil or dirt that can compromise performance. Moreover, monitoring temperatures is essential for me; I monitor the changes in bearings since they usually work best below 70°C. Any abrupt rise above this level could indicate underlying problems requiring immediate remedy.
In addition, wearing out and fatigue are inevitable consequences but can be prevented by observing load ratings and not exceeding the dynamic load capacity given by the manufacturer. For single-row cylindrical roller bearings, one must refer to the load ratings often available in the technical data sheet. For instance if a particular type of bearing has a dynamic rating (C) of 10,000 N then I ensure that operational loads do not exceed this figure which will give longer service life span. Addressing these issues with careful attention to detail and adhering to technical parameters can enhance the reliability and performance of roller bearings in many applications.
Bearing Arrangement Design Tips
I first ensure the best alignment and support when designing bearing arrangements. The design of adequate housing is critical because it needs to be rigid enough to accommodate thermal expansion and easy installation and maintenance. In addition, I pay attention to the shafts so that they have the correct dimensions and are made correctly to avoid any warping, which can cause wrong alignment. I also give precedence to selecting suitable seals that prevent dust or other harmful substances from entering while at the same time preserving the oil. With these considerations in mind, one can create bearing arrangements that improve performance and service life with regular reference to relevant technical literature and good practice guidelines.

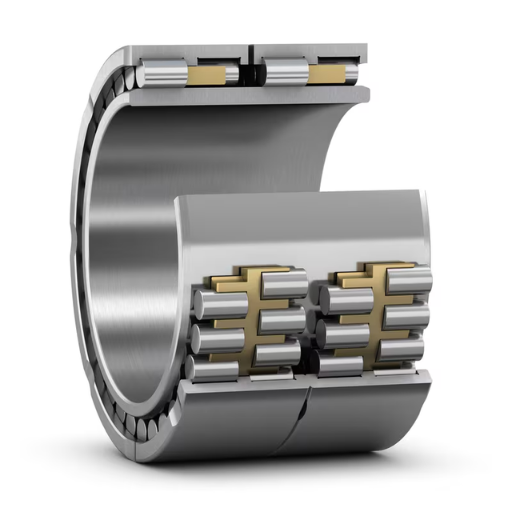

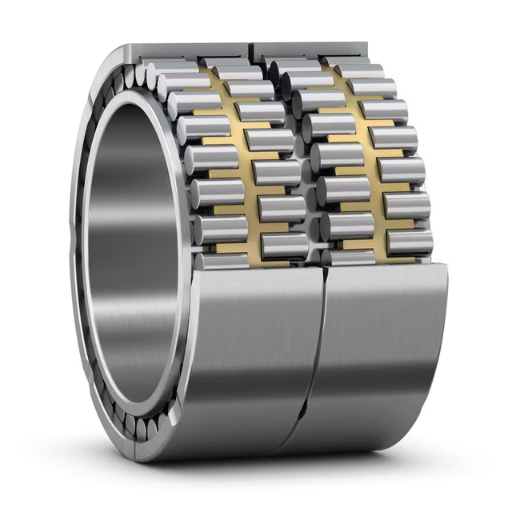

What are the Differences Between Single Row and Double Row Cylindrical Roller Bearings?
Comparative Analysis of Load Capacities
I have realized that their load capacitates are the main feature distinguishing single-row and double-row cylindrical roller bearings. Due to their less complicated composition, single-row bearing types are usually fitted to take light radial loads. They best suit environments where load capacity and spatial constraints dictate application requirements. Contrarily, due to having two sets of rollers, these types of bearings have a higher weight-carrying capacity than the former when it comes to both axial and radial loading. They are designed ideally for heavy-duty operations requiring durability and high productivity levels. This awareness enables me to determine my choices regarding bearing selection based on each machine’s particular needs.
Different Types for Different Applications
Based on my experience, single-row cylindrical roller bearings are a good fit for applications that focus on compactness and modest load-handling capabilities, like electric motors, gearboxes, and light machinery. They can be easily integrated into confined spaces because of their small size and lightweight. On the other hand, double-row cylindrical roller bearings have proven to be highly effective in heavy-duty applications such as construction machinery, mining machines, and industrial presses. These types are designed to withstand higher radial and axial loads found in such demanding tasks, resulting in optimum performance and long-lasting constructs. Taking stock of what an application needs at any given time helps me opt for a suitable bearing type, which will ensure operations run smoothly.
Choosing Between Single and Double Row Cylindrical Roller Bearings
In selecting between single- and double-row cylindrical roller bearings, I consider a few critical things based on the application’s demands. In that case, if my work is in a small space or has low load requirements, I usually prefer single-row designs because they are lighter than the latter ones. For example, compact equipment such as small gearboxes and electric motors require installation ease, making them more appropriate for this machinery. However, I favor double-row varieties in high load capacities like those found in mining or construction equipment. They can handle radial and axial loads, making them strong enough to survive tough places. Finally, I make choices based on space limitations along with load requirements to optimize the performance of the system while at the same time guaranteeing its durability.
Reference sources
Frequently Asked Questions (FAQs)
Q: What are single-row cylindrical roller bearings designed for?
A: Single-row cylindrical roller bearings support radial loads and can accommodate high radial forces, making them suitable for various industrial applications, including electric motors, gearboxes, and automotive components.
Q: How do cylindrical roller bearings with a cage differ from those without?
A: Cylindrical roller bearings with cages contain a cage that separates the rollers, which helps to guide the shaft and improves stability and load capacity. Those without a cage allow for more rollers but have a lower axial load-carrying capacity.
Q: What is the importance of the roller end in cylindrical roller bearings design?
A: The roller end in cylindrical roller bearings is crucial as it reduces wear and friction while maintaining the rollers’ alignment, which contributes to the bearing’s overall durability and efficiency.
Q: How do bearing rings affect the performance of cylindrical roller bearings?
A: The bearing rings provide a raceway for the rollers to rotate, allowing smooth motion. The design and material of these rings can significantly influence the bearings’ load capacity and operating life.
Q: Can single-row cylindrical roller bearings support axial loads?
A: Single-row cylindrical roller bearings primarily handle radial loads, but they can only support axial loads in one direction. Additional design considerations or bearing types must be used for applications requiring bidirectional axial load capacity.
Q: What is the role of the ribs on the outer ring in cylindrical roller bearings?
A: The ribs on the outer ring of cylindrical roller bearings help keep the rollers in place, preventing them from escaping the raceway. They also guide the shaft axially, thus improving stability under load.
Q: What challenges arise when using cylindrical bearings in design?
A: Challenges can include ensuring proper shaft alignment relative to the housing, managing high radial forces, and selecting appropriate materials to minimize wear and extend the bearings’ lifespan.
Q: Why is the n design significant in selecting cylindrical roller bearings?
A: The n design refers to the specific design features and configuration of cylindrical roller bearings, which are crucial for accommodating particular load conditions and operational requirements in various applications.
Q: What are X-life cylindrical roller bearings, and how do they improve performance?
A: X-life cylindrical roller bearings are designed with enhanced materials and geometries that improve their load-carrying capacity, reduce friction, and extend service life, making them suitable for demanding applications where reliability is critical.
Q: In what applications can cylindrical roller bearings not guide the shaft?
A: Cylindrical roller bearings cannot guide the shaft in applications that require axial load handling in both directions or where the shaft experiences significant misalignment, necessitating different bearing types or support mechanisms.
