One approach to achieving an effective and long-lasting single-row cylindrical roller bearing is choosing the appropriate material. This piece will look at suitable materials for making single-row cylindrical roller bearings, considering strength, longevity, wear resistance, and environmental friendliness. Knowing what different stuff can do may help select the right one for a given application that would improve performance and reliability. By doing this, readers can choose the best components to enhance their applications’ performance and durability.
What is a Cage in Cylindrical Roller Bearings?
Different Kinds of Cages Used in Roller Bearings
In a cylindrical roller bearing, cages separate rollers, ensure proper alignment, maintain their spacing, and prevent them from touching each other. This helps in minimizing friction and wear. The following are some types of cages commonly used in roller bearings:
- Steel Cages: These cages are solid and durable because they are stamped steel. They also have high load-carrying capacities but may rust if not adequately protected.
- Polyamide Cages: Their lightness and corrosion resistance make polyamide or other plastic material-based cages suitable for use with lower operating temperature limits and weight restrictions.
- Brass Cages offer good dimensional stability and wear resistance, and they are widely used, especially in high-load applications, although they can be heavier than plastics.
- Machined Cages: Machined cages are usually custom-made to meet particular tolerances, which can vary depending on the application’s requirements; hence, various materials can be used, making them highly versatile.
Correct selection of cage type is critical to achieving optimum performance and longevity in cylinder roller bearings when designed according to application needs.
The Importance of Cage Design in Maintaining Stability
Cage design is critical for the durability and operational efficiency of cylindrical roller bearings. Properly designed cages ensure that the rollers are evenly spaced, thereby ensuring that there is no contact between the rollers to facilitate load sharing. This can help reduce friction and wear and subsequently extend life expectancy.
Some key technical parameters include:
- Material Strength: The type of cage material (steel, polyamide, brass, or machined) has a direct impact on its load-carrying capacity; for example, steel cages generally carry higher loads because they are stronger than polyamide cages.
- Weight: In high-speed operations, the cage’s weight greatly affects overall bearing dynamics. Polyamide materials used in manufacturing have low inertia, promoting quicker accelerations and decelerations and, hence, faster-bearing movements.
- Temperature Resistance: The temperature resistance capability dictates how long a particular material will last, especially during operation stages. At 120°C below applications, polyamides are most appropriate, whereas brass ones do well with the highest heat ranges.
- Clearance and Tolerance: Roller alignment within the cage depends on precise dimensions. Smaller tolerances may help reduce misalignments, which might produce premature failures.
If engineers pay close attention to these parameters, they could make cages that significantly improve the stability and performance of cylindrical roller bearings in several applications.
Materials commonly used for Cages.
While designing cages for cylindrical roller bearings, I always come across different materials with their pros. The most common materials include：
- Steel is known for its incredible strength and load-bearing properties, which make it ideal for high-load applications. Furthermore, it is durable and works well in environments where substantial support is needed.
- Polyamide: Polyamide cages are my favorite choice since they are lightweight and, therefore, suitable for applications requiring such materials. They exhibit low inertia, resulting in higher accelerations, making them ideal under dynamic conditions.
- Brass: Brass cages are necessary when temperature resistance becomes essential. Their ability to withstand high temperatures has made me prefer them over polyamide, thus ensuring durability under harsh thermal conditions.
By considering these attributes and selecting the appropriate material, I can enhance the function and robustness of the bearing systems I am dealing with.
How to Select the Right Bearing Design?
Factors Influencing the Selection of Bearings
From my experience, I have established that several crucial factors influence the selection of bearings for specific applications. First, there are load requirements. Depending on whether one requires a static or dynamic load, a different bearing type is needed. This is necessary to ensure that optimal performance and longevity are achieved. Then, we consider operating conditions, including temperature, moisture exposure, and the presence of contaminants; these factors significantly affect material choices and design specifications. The other factors I consider are speed and acceleration, which vary when optimizing different types of bearings according to rotational speeds and load conditions. Finally, space available for installation and orientation also influences the kind of bearing one can use because the available space may limit it. By considering these factors carefully, I will be able to make decisions based on sound judgment in order to come up with efficient and dependable bearing solutions.
Comparing Various Designs Static Load Ratings
When comparing static load ratings for different types of bearings, I consider several factors as key pointers in determining the most applicable design for my purpose. For instance, Static load rating, usually denoted as C0, is the maximum loading that can be applied to a bearing without causing any permanent damage, which means it’s the maximum amount of weight a bearing will bear without collapsing. I discovered through my research that roller bearings generally have higher static load ratings than ball bearings, which makes them suitable for applications with heavy loads. Moreover, attention has also been paid to elements such as the material of the bearing and its geometrical outline, which impact its ability to bear weight. This way, I cannot only meet the loading requirements but also improve the endurance and trustworthiness of all systems I deal with by analyzing these aspects of many other designs.
Effects of Different Bearing Arrangements on Performance
When I think about how bearing arrangements affect performance, I am concentrating on how various arrangements influence load distribution and operation efficiency. On prominent industry websites, there is a lot of information regarding the proper alignment of bearings within a system; minor misalignments can lead to uneven wear and increased friction, which will ultimately decrease bearing life. Furthermore, it may change how loads are distributed among the bearings and the type of arrangement used (single or paired). For example, if bearings were arranged in tandem formation, their capacity to hold huge loads would increase, while some staggered ones could enhance stability and minimize vibration. By carefully choosing where to put them, we can optimize their performance to work best as part of larger mechanical systems.
What Are the Best Materials for Roller Bearings?
Materials Evaluation for High Load Applications
Typically, I zone in on critical options like steel, ceramics, and composites when considering materials for roller bearings used in high-load applications. Steel, especially high-carbon or alloy steels, is favored due to its robustness and tenacity, making it suitable for heavy-duty operations. In addition, ceramic materials have the advantage of low friction values and are corrosion-resistant, increasing the bearing life under severe operating conditions. Composite materials, although less utilized, are being noticed as they are lightweight and can withstand icy environments.
By evaluating these materials according to certain operational requirements and environmental influences that may be present, I can decide which one is most suitable so that the bearings perform best even under high loads for a long period of time.

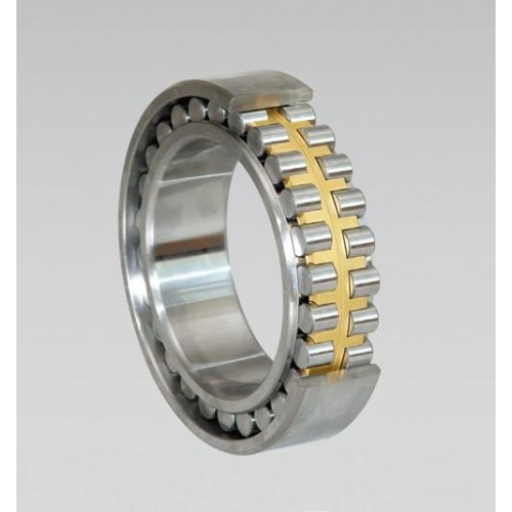

Using Brass Cages as Roller Bearing
Firstly, the significant benefits of using roller bearings with brass cages benefit me in different areas. The first thing is that brassy cages have higher strength and durability than their plastic counterparts; hence, they can carry heavier loads without deformation at high pressures. Another reason why brass cages are suitable is because they are inherently resistant to wear and corrosion, making them ideal for places that may come into contact with moisture or chemicals, thus increasing their life span. I also find it essential that they make heat dissipation efficient when used as a cage material. As a result, one can increase the reliability of roller bearings in extreme conditions by using brassey cages.
Considerations for Full Complement Cylindrical Roller Bearings in terms of the Materials
When selecting materials for full complement cylindrical roller bearings, I focus on several key factors and criteria to ensure maximum effect. Steel remains the primary material because of its immense strength and fatigue resistance, which makes it suitable for applications laden with heavy loads. Nonetheless, other alternative materials, such as stainless steel, are also considered because they have higher corrosion resistance in aggressive environments. Moreover, ceramic rolling elements can be advantageous for their lightweight characteristics and ability to operate at elevated temperatures. Furthermore, I cannot make any decision without examining operating conditions, including load, speed, and temperature, since these significantly affect my choice of bearing material. In conclusion, by considering these characteristics and application requirements, I can achieve efficient and reliable performance from full complement cylindrical roller bearings across different industry sectors.
How do you properly mount and dismount roller bearings?
Mounting and Dismounting Tools
To facilitate the installation and removal of roller bearings without causing any harm to them, I make sure that I have with me the following tools:
- Pullers： A bearing puller is vital to remove shaft bearings safely.
- Bearing heaters expand the bearing as it is mounted to minimize damage to the inner ring.
- Hammer and soft drift： If hammer force is applied, the bearing surface can be damaged, but by using plastic or brass drift, I can apply the necessary force without causing any damage.
- Torque wrench： This is required to apply the correct torque during mounting.
- Clean rags and solvents： For the best performance and durability, it is important that components are not contaminated or dirty.
With these tools, one can confidently install or remove roller bearings for different needs while ensuring their safety.
Step-by-Step Guide on Installation of Bearings
- Preparation: Before starting the installation process, I always make sure I clean both the bearing and its housing thoroughly using clean rags and solvents. This eliminates dirt and debris, ensuring proper fit and preventing premature failure.
- Check the Fit: I ascertain that the bearing’s internal diameter is a good match for the shaft and that its outer diameter also fits well into the housing. This is an important step to avoid any rough operations after fitting.
- Heat the Bearing: I warm it gently with a bearing heater to expand it slightly. This reduces the chances of damaging the inner ring during installation; however, one must be careful not to overheat it.
- Position the Bearing: After ensuring it is properly oriented based on its design, I precisely align it with my shaft and housing. Then, without applying excessive force, I slide my bearing onto my shaft.
- Apply Torque: Immediately after placing this bearing at its position, I use a torque wrench to fasten any other loose fasteners as specified by their producers. This will enable accurate positioning and alignment within an assembly.
- Final Inspection: Finally, before installing them on your engine or machine, turn on your shafts to check for misalignments or abnormal clearances. This will ensure the smooth operation of bearings and increase their service life.
Thus, these steps make implantation possible for safe performance standards of quality bearings that meet safety requirements.
Frequent Errors When Mounting Bearings
I have found that several common errors during the installation of bearings may cause specific issues. One recurring mistake is that there is insufficient cleaning done on the bearing and housing. In this regard, I make it a point to thoroughly check any dirt and other materials as they may end up causing misalignment and premature wearing out. Failure to test fit before placing into position can be a big error, so I always ensure that inside and outside diameters are correctly measured. The next thing is overheating of the material during heating; hence, I am careful about this aspect in order not to spoil anything during the process or avoid material damage. Lastly, inadequate care after installation is another issue that requires attention; therefore, post-installation shaft rotation ensures smooth operation and proper alignment. My focus here allows me to avoid these pitfalls, resulting in high-bearing performance for extended periods.
What is the Role of Static Load Rating?
Understanding Static Load vs. Dynamic Load
The static load rating is the maximum load capacity of a bearing that can bear without any permanent deformation while being stationary, based on my experience. This is particularly important where the bearing may be loaded without rotation. On the other hand, dynamic load rating is the maximum weight a bearing can bear for its life, as expressed in millions of revolutions. Bearing selection should be based on both ratings to ensure reliability and durability for my projects’ applications under their particular operational conditions. By understanding these concepts, I am able to select a suitable bearing for its intended application effectively.
Impact of Static Load Ratings on Bearing Selection
The static load rating always becomes a determining factor when choosing bearings for my projects, as this ensures that the bearing can withstand the maximum load while at rest. For instance, if we consider applications with constant loads, a bearing with a high static rating will not deform in such conditions. I have also learned to match the static load rating to expected loads for specific applications to avoid early failures or too much wear. In addition, by comparing static load ratings across top manufacturers, I can be able to make informed choices that enhance operating performance and overall reliability of equipment. This compatibility guarantees that a product’s life is long-term, plus efficient operations within it.
Calculating Static Load Capacity for Your Application
When calculating the static load capacity of my application, I start by identifying the maximum load that will be put on the bearing while it is at rest. This includes considering the static load rating of the bearings I am looking at and my project’s specific requirements. After finding out what load you expect, a review of the manufacturer’s guidelines usually gives charts or formulas for calculating static load capacity based on the type, size, and material of bearings. By ensuring that the selected bearing’s static load rating exceeds this calculated maximum value, I can confidently say it will perform well under my application conditions. It is, therefore, essential to consider factors such as temperature and environment since they may affect bearing performance with time.
What Are the Key Design Considerations for Bearing Arrangements?
Radial and Axial Load Optimal Arrangement
The choice of the right kind of bearing for my particular application has taught me to make the optimal design of a bearing arrangement that can effectively handle both radial and axial loads. For instance, when dealing with radial loads, I often prefer deep groove ball bearings or cylindrical roller bearings as they can handle a lot of radial loads. Similarly, in some cases, when faced with axial loads, I always consider thrust bearings or angular contact ball bearings that are designed to manage one-way axial load.
Also, making pairs of them could help improve load distributions and stability. Additionally, reducing shaft misalignments and having appropriate lubrication contribute meaningfully to enhancing the general dependability of the bearing configuration. I desire to carefully think about these aspects to end up with an even distribution that provides maximum efficiency while guarding against premature failure in the life span of my applications’ bearings.
Raceways for Roller Bearings that are Effectively Designed
I have learned this from my experiences about designing raceways for roller bearings. Key considerations reported by top sources include:
- Surface Roughness: Maintaining a smooth surface finish (generally around Ra 0.4 to 0.8 µm) can reduce resistance to friction and wear. This, in turn, leads to longer bearing life and better-rolling contact, which increases durability and reduces maintenance costs.
- Geometric Accuracy: The raceway’s dimensions should be guaranteed. Tolerances should be limited (usually within ISO grades) to avoid deformities that could result in uneven load distribution and early breakdown.
- Heat Treatment: The raceway’s hardness determines its load-carrying capacity. Thermic treatment techniques may attain a hardness of HRC 60 or higher, thereby strengthening the raceway and increasing its resistance to fatigue under cyclic loading situations.
- Lubrication Groove Design: Lubrication grooves, when designed properly, can greatly impact lubricant effectiveness. Well-defined groove patterns will help oil flow better, reducing frictional forces and wear and resulting in overall improved reliability.
My aim is to design raceways by focusing on these specifications that comply with the technical demands of high-performance conditions and enhance roller bearing wear life and reliability in different operating environments.
Effects of Inner and Outer Rings on Load Distribution
The loading pattern of a bearing depends on how its inner and outer races interact. Information from various reliable sources informs us that being directly attached to the shaft, the inner ring strains much more than the outer one that supports loads from the housing. This load-sharing mechanism helps prevent exaggerated burdening of either ring, ensuring no untimely failure. The rings should be fitted appropriately and aligned during installation to achieve an even distribution of loads. Besides, it is important to consider material choice and design to maximize ring load capability and improve the overall performance of the bearing system.
Reference sources
Frequently Asked Questions (FAQs)
Q: What materials are commonly used to design bearing arrangements for single row cylindrical roller bearings?
A: The most common materials used in the design of bearing arrangements for single-row cylindrical roller bearings include high-quality steel for the bearing rings and rollers and special coating materials to enhance corrosion resistance and wear properties.
Q: How does the material impact the axial load-carrying capacity of cylindrical roller bearings?
A: The choice of material significantly impacts the axial load-carrying capacity of cylindrical roller bearings, as stronger materials can withstand higher loads and prolong the bearings’ service life.
Q: What advantages do x-life cylindrical roller bearings offer regarding materials used?
A: X-life cylindrical roller bearings feature improved materials and heat treatment processes, which enhance their load-carrying capacity, reduce friction, and increase overall durability compared to standard bearings.
Q: Why are cylindrical roller bearings with cages preferred in specific applications?
A: Cylindrical roller bearings with cages are preferred because the cage helps to guide the rollers, maintain spacing, and reduce friction, which is beneficial for high radial loads and improved performance in bearing arrangement design.
Q: What is the significance of roller end design in cylindrical roller bearings?
A: The roller end design in cylindrical roller bearings is significant as it influences the load distribution and reduces edge stresses, thereby enhancing the overall durability and performance of the bearing under radial loads.
Q: Can you explain how the design of cylindrical bearing seats affects bearing performance?
A: The design of cylindrical bearing seats is crucial as it impacts the alignment and fit, ultimately affecting their performance, load distribution, and lifespan in the overall design of bearing arrangements.
Q: How do cylindrical roller bearings correspond to the needs of radial and axial loads?
A: Cylindrical roller bearings are designed primarily to support radial loads, but specific designs can also accommodate axial loads in one direction, making them versatile for various applications in bearing arrangements.
Q: What role do Schaeffler media play in selecting materials for roller bearings?
A: Schaeffler Media provides extensive technical data and material specifications that assist engineers in selecting the appropriate materials for roller bearings based on specific application requirements and performance expectations.
Q: In the case of cylindrical roller bearings, how does the material choice affect their application in high radial load conditions?
A: In high radial load conditions, the material choice for cylindrical roller bearings must withstand significant stress without deforming, so high-strength steel is often preferred for its enhanced load-carrying capacity and durability.
