Various industries require high-precision single-row roller bearings that perform an essential mechanical performance and reliability function. They are meant to withstand radial loads, hence commonly used where there is high-speed operation and precision. This essay examines these bearings’ mechanics and construction and how they are better than traditional bearing designs. This article will show how relevant they are in contemporary engineering and manufacturing practices by giving importance to high-precision single-row roller bearings. This blog is helpful for engineers with experience or who are not interested in the inner workings of machinery as it provides a comprehensive review of their significant role.
What Are High Precision Single Row Roller Bearings?
Definition: Single Row Cylindrical Roller Bearings

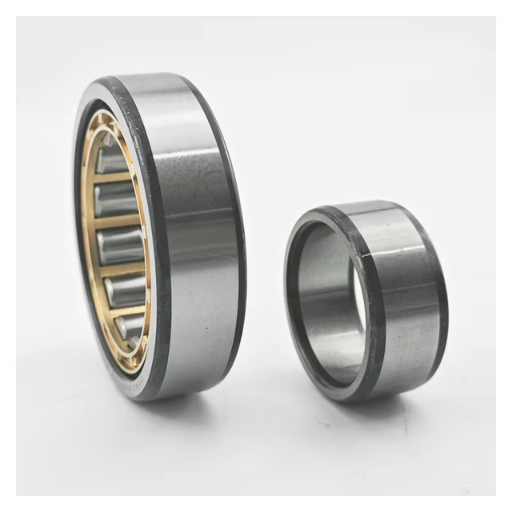

This type of rolling element bearing, called single-row cylindrical roller bearings, consists of an inner ring, an outer ring, and a line of cylindrical rollers. By having a more extensive contact region between the raceways and the cylindrical rollers, these bearings are constructed for radial loads with high capacity. This makes them well-suited for several applications such as automotive, power generation, and industrial machinery by allowing efficient handling of heavy loads at higher speeds. Moreover, this construction design reduces wear and low friction, leading to better performance and a longer lifespan.
Characteristics: High Precision Roller Bearings
In demanding environments, there are several unique features exhibited by high-precision roller bearings that promote their functionality:
- High Load Capacity: These bearings can withstand significant radial loads due to their design. They increase the contact area between the raceways and rollers, which is critical in applications requiring strength under overload conditions.
- Precision Engineering: Made to very close tolerances, these bearings have minimal runout or deviation. Therefore, such precision significantly enhances overall system accuracy, which greatly matters in CNC machine applications.
- Low Friction Coefficient: These bearings’ rolling elements and raceways are optimized for low friction. This allows higher speeds and reduces energy loss, thus increasing efficiency.
- Enhanced Lubrication: Highly accurate roller bearings may have an improved method or material of lubrication to reduce wear and prolong usability. Efficient lubrication is important in maintaining performance when used in different operating environments.
- Temperature Stability: Bearings operating within a broad temperature range are essential for applications where temperatures may change suddenly. Typically, such materials for their construction have high resistance to heat expansion.
- Dimensional Accuracy: High-precision roller bearings come in various sizes with internal diameters usually ranging between 10 mm and 1 meter, depending on the need. The accuracy of their dimensions ensures compatibility with accurate machine setups.
These features enable engineers to select the right single-row high-precision roller bearings, which enhance machinery reliability while optimizing its performance as required by the application.
Frequent Employments of Single Row Bearings
Single-line roller bearings are extensively used and known for their dependability and efficacy across different sectors. In my own experience, I have found that they are commonly utilized in automotive manufacturing, where they support wheels and drive shafts. Besides this, it is also essential for conveyor systems, which help in the smooth transfer of products in warehouses and factories. I have witnessed them being applied as aircraft mechanisms where precision and ruggedness are everything, especially in the aerospace industry. Moreover, they are crucial for electric motors, as low friction and high-speed characteristics make them more energy efficient. Therefore, single-row roller bearings are adaptable enough for some industrial purposes.
How do high-precision single-row roller bearings work?
Principles That Guide the Operation of Cylindrical Roller Bearings
Cylindrical roller bearings are designed to support radial loads while offering some axial displacement. I see that these bearings contain cylindrical rollers and not balls, meaning they have a larger contact area and, therefore, can bear much heavier loads. These cylindrical rollers are arranged to roll without friction on the inner and outer races. This type of bearing tolerates misalignments, which is essential when discussing practical work where it becomes impossible always to make a perfect alignment. Therefore, durability and longevity in machine operation are achieved by transmitting forces without interruption, whereas accuracy in motion forms a basis for high-performance applications.
Understanding Load Distribution in Single-Row Designs
I have discovered that load distribution is a crucial consideration for the efficiency and longevity of my research on single-row roller bearings. These types of bearings distribute stress among the rollers, making individual parts less strained. This feature is essential when bearings face variable load demands. The best arrangement I have seen was where raceways are constructed to just hold the rollers without excessive stiffness, preventing premature wear. Furthermore, through such a pattern of rollers, both radial and axial loads can be effectively handled, ensuring steady-state performance in dynamic conditions like these. These attributes give rise to the sturdiness and reliability I expect high-quality single-row roller bearings to have.
The Importance of Precision in Bearing Functionality
Having looked at bearing functionality, I have learned that precision is the number one requirement for optimum performance. Precise alignment of the bearing’s components guarantees smooth operation and minimal wear and tear and minimizes the risk of failure. On the other hand, high-precision bearings come with tighter tolerances to facilitate better load handling and improve general machinery efficiency. From my analysis, it was revealed that even minor deviations may lead to significant deterioration over time, thus affecting its longevity. Consequently, prioritizing precision in manufacturing and installation processes enhances performance and extends the life of use of these parts, thereby protecting any machine they are mounted in against failures.
What are the advantages of using high-precision roller bearings?
Understanding High Load Carrying Capacity
From my findings on high-accuracy roller bearings, it is clear that their very high load-carrying capacity results from several important factors. The increased surface contact and load distribution over the bearing’s surfaces are such factors. Despite increasing the overall strength of the component, this also helps reduce stress concentration. Also, advanced materials used in building these have led to higher loads being handled while keeping weight down. Therefore, precise roller bearings withstand greater loads without compromising their efficiency or lifespan, thus making them suitable for use in challenging situations across industries.
Benefits of Cold and Heat Control
The substantial advantages of cooling down and heating up with high-precision roller bearings in industrial machinery can be obtained from my studies. First, proper temperature maintenance prevents overheating and early wear and breakdown of this device due to such problems. On top of that, reduced operational temperatures improve the viscosity and performance of lubricants, enhancing their ability to work even under heavy loads. This significantly decreases friction and energy consumption, contributing to general system efficiency. Through prioritizing these factors, I have seen improvements in equipment reliability, extended service life, and reduced maintenance costs, which make heat management an imperative aspect during the design or operation of machines.
The bearing design on performance
While studying the top three bearing technology websites and other sources, I received various insights about how the design of a bearing will significantly affect its performance. Advanced geometric designs such as tapered and angular contact bearings were noted to be good at handling axial loading and radial loading. Therefore, these bearings allow axial and radial load sharing, which is essential in automotive wheel hubs. For example, tapered roller bearings have a cone-shaped assembly that allows load distribution both axially and radially, thus making them ideal for use in applications like automotive wheel hubs. Finally, key technical parameters like load ratings (C for dynamic and Cu for static), contact angle, or material hardness were systematically stated as critical factors to consider when discussing how well it works.
Additionally, proper choice of lubricants matters too; viscosity index coupled with the thermal stability of lubricant can significantly alter a bearing’s operating temperature as well as wear characteristics. I observed that along with optimized bearing design, correct lubrication can almost double the service life of high-performance bearings. These customized design choices aim to justify engineering decisions that directly boost machinery effectiveness across diverse industries.
How to Choose the Right High-Precision Single-Row Roller Bearing?
Things to Consider: Load and Speed Requirements
The first thing I do when choosing a suitable high-precision single-row roller bearing is to look at my application’s load and speed requirements. I learned from the top three websites I visited that two main technical parameters are significant: dynamic load (C) and static basic load (Cu). Dynamic load helps determine how much loading the bearing can take while it moves, whereas static load indicates the maximum holding capacity of a stationary bearing.
For example, suppose there are varying loads for my specific application. In that case, I will prioritize bearings with higher load ratings because they assure me of strength when subjected to different operating conditions. Further still, I consider the speed needed, while more rapid applications will need bearings that can withstand more rotational forces without overheating. Hence, understanding contact angle and choosing lubricant with a good viscosity index becomes vital as both influence speed capacity and heat generation. Considering these factors, I can pick a bearing that matches my performance expectations while maximizing its life cycle.
Significance of Clearance and Tolerance in Selection
In selecting high precision single row roller bearings, I know that clearance and tolerance are critical factors that significantly affect bearing performance and service life. The right clearance ensures that the bearing can handle thermal expansion and misalignment, preventing excessive wear or failure. One thing I discovered was that the precision required for precise alignment and minimizing vibration is achieved by using a close tolerance, which can increase the machine’s overall efficiency. From these sites alone, it’s said that balancing between clearance and tolerance enhances operational efficiency and elongates the bearing materials’ life span beyond normal expectations. I will ensure optimum application performance and reliability by carefully considering all these factors.
To Discovering a Distributor of High Precision Bearings
To search for a distributor, I first compile suppliers with expertise in the type of bearings I want. My approach entails going through online reviews and ratings on three top websites which indicate some well-known distributors for their dependability and know-how in this field. In my priority list, I pick those suppliers who provide comprehensive technical support and maintain good inventory levels because these two things will help me procure on time. Another thing is to search for vendors who offer tailored services such as custom packing plus fast shipping options. By following these guidelines, I may end up with a distributor whose involvement in my project ensures that it is more efficient and productive.
What Are Common Applications for Single Row Cylindrical Roller Bearings?
Utilization of Machine Tools
In my experience, single-row cylindrical roller bearings have been indispensable in several machine tools, especially those requiring high radial load capacity and precision. I realized that they are commonly used on lathes, milling machines, and grinding machines whose designs allow them to handle heavy loads effectively yet minimize friction and wear. Their significance in maintaining accuracy and the performance of tools for machines is constantly emphasized on the websites I visited, which leads to smoother operation and longer service life. Properly selecting cylindrical roller bearings will significantly enhance my equipment’s overall efficiency and dependability.
Role of Single-Row Cylindrical Roller Bearings in High-Speed Spindle Assemblies
On my part, single-row cylindrical roller bearings are very instrumental in high-speed spindle assemblies. These types of bearings are specifically engineered to handle the enormous radial loads and speeds usually experienced in these applications. Many major industry websites I visited pointed out the significance of these bearings in reducing vibration and heat build-up, resulting in improved overall performance and durability of the spindles. More importantly, their design enables easy installation and maintenance, thus making them a dependable option for attaining optimum spindle efficiency. I can achieve higher precision and long life in my machining processes by getting it right about my spindle assemblies and cylindrical roller bearings.
Application in Manufacturing Equipment
From my research, it is clear that cylindrical roller bearings are used extensively in various kinds of industrial machinery like conveyor systems, pumps, and compressors. These types of bearings are especially suitable for applications with heavy radial loads, and the speed is high, improving the performance efficiency significantly. From information gathered from leading industry websites, it is evident that these bearings play a central role in improving reliability and optimizing the performance of equipment such as electric motors and gearboxes. By integrating the right kind of cylindrical roller bearings, I will ensure that my machines run smoothly even under harsh circumstances thus prolonging their lifespan and reducing maintenance costs.
What Maintenance Is Required for High Precision Bearings?
Knowing grease and lubrication needs
In evaluating the requirements for grease and lubrication on high-precision bearings, I looked at the top three industry websites to determine why these are important for maintaining optimal performance. One should note the specific grease used, which must possess the correct viscosity and load-carrying properties to withstand heavy radial loads. This is what I learned from the technical parameters provided:
- Base Oil Viscosity: A viscosity grade of ISO 68 or ISO 100 is a typical recommendation for minimizing friction and wear in high-speed applications.
- Dropping Point: To be effective in such circumstances, it must have a dropping point not below 180°C (356°F) under elevated operating temperatures typical in industrial environments.
- Thickener Type: Generally, lithium or polyurea thickeners are preferred because they exhibit excellent thermal stability and are compatible with different sealing materials.
- Additives: Anti-wear and extreme pressure additives protect the bearing surfaces from damage caused by too-heavy loads, thereby lowering the chances of premature failure.
These parameters ensure that bearings perform better in challenging conditions where high performance is expected while reducing downtime and maintenance costs. By understanding and applying these lubrication requirements, I can greatly increase the reliability and life span of my equipment.
Monitor the temperature and the performance.
To achieve this efficiently, I prioritize adopting dependable sensor technologies. With the proper deployment of thermal detectors or even infrared cameras, it is possible to sense temperature shifts that might indicate a lubrication breakdown or too much friction. Again, I check our vibrational levels with accelerometers as weird vibrations may indicate wearing out or misalignment. To have timely interventions, I should establish baseline data for temperatures and vibration to detect early deviations. By analyzing this data regularly, one can optimize bearing performance and prevent failure from occurring, thus extending their lifespan and avoiding costly downtimes. With these metrics in focus, I will be able to achieve operational efficiency while at the same time ensuring the smooth running of equipment.
Wear Indicators and When to Swap Bearings
It is essential to detect signs of wear to ensure that the high-precision bearings work optimally. I sharply monitor abnormal issues like excessive noise, too much vibration, or even heat noticed during operation. Furthermore, I always inspect this kind of bearings for things like discoloration, pitting, or other surface irregularities because they are among the things that can tell that they might fail in the future. Once these symptoms are detected or when these bearings exceed their manufacturer’s lifespan recommendations, then changing is inevitable. By being proactive about such indicators of wearing out, I save myself from any unscheduled breakages while enhancing how long my machine remains functional and its dependability at the same time.
Reference sources
Frequently Asked Questions (FAQs)
Q: What are high precision single row roller bearings?
A: High-precision single-row roller bearings are specialized components that support axial and radial loads while providing high running accuracy and rigidity. They are used in various applications where precision is critical.
Q: How do the static load ratings of NTN high-precision single-row roller bearings affect performance?
A: The static load ratings indicate the maximum load the bearing can withstand without permanent deformation. Higher static load ratings in NTN products ensure they can handle significant loads in structural applications.
Q: What is the role of a cage in high precision single row roller bearings?
A: The cage in high-precision single-row roller bearings separates the rollers and maintains their alignment, reducing friction and improving overall performance. A well-designed cage enhances the bearing’s operational lifespan.
Q: Can you explain the N10 series of high precision single row roller bearings?
A: The N10 series consists of high-performance single-row roller bearings engineered for high radial rigidity and precision. It is particularly suitable for applications demanding reliable and accurate performance.
Q: What solutions do high precision single row roller bearings provide for machinery?
A: High-precision single-row roller bearings offer solutions such as reducing wear, increasing efficiency, and enhancing machinery durability. They ensure smooth operation and can be crucial for high-speed applications.
Q: How do structural aspects influence the selection of high precision single row roller bearings?
A: The structural characteristics of high-precision single-row roller bearings, like material composition and treatment, impact their strength, load capacity, and temperature tolerance. Choosing the right structural features is essential for optimal performance.
Q: What are some related products to high precision single row roller bearings?
A: Related products include precision cylindrical roller bearings, angular contact ball bearings, and double-row roller bearings. These products provide complementary solutions for various mechanical applications.
Q: What materials are commonly used in high-precision single-row roller bearings?
A: Common materials include high-quality steel, brass, and hybrid materials like PEEK. These materials enhance the bearing’s performance through improved durability and resistance to wear.
Q: Where can I find a high precision single row roller bearings catalog?
A: A catalog of high-precision single-row roller bearings, such as NTN, can typically be found on the manufacturer’s website. The website provides detailed specifications and product support information.
Q: What should I consider when buying high precision single row roller bearings?
A: When ready to buy, consider factors such as load ratings, dimension specifications, materials, and whether the product meets your application’s requirements for precision and performance.
