Various mechanical applications require the right size of single-row roller bearings for maximum performance. These parts significantly boost machinery efficiency and durability as they support axial and radial loads. This article will explore what to consider when choosing a suitable roller bearing with the correct size, such as load capacity, operational atmosphere, and whether it fits well within the current system. This will enable readers to make better decisions based on their requirements through awareness of these aspects, leading to higher operational dependability and decreased maintenance expenditure.
What Are Single Row Cylindrical Roller Bearings?
Understanding the Design of Single Row Full Complement Cylindrical Roller Bearings.
Single-row full-complement cylindrical roller bearings have more rollers than standard designs, maximizing the load capacity of the bearing. The cage-less design helps pack the rollers closely together, increasing the bearing capacity by having a larger contact area.
Key Technical Parameters:
1. Load Capacity:
- Radial Load Capacity (Cr): This is determined by the maximum radial load that can be supported by a given bearing, which varies with its diameter and number of rollers.
- Axial Load Capacity (Ca) refers to how well a bearing can withstand forces applied parallel to its axis.
2. Roller Diameter and Length:
- These parameters affect not only load-carrying capacity but also operational efficiency and life expectancy. Usually, increasing roller diameter results in higher load-carrying capacity.
3. Contact Angle:
- This refers to the angle between the roller and the raceway. A more excellent contact angle generally means increased axial load capacity but may reduce radial load capacity.
4. Inner and Outer Ring Dimensions:
- Inner and outer ring dimensions must be taken into account to secure proper fitment into assembly and performance.
5. Material Type:
- These bearings are made of high-grade steel or ceramic materials that impact their wear resistance and lifespan.
By carefully examining these parameters, engineers can select the right full complement cylindrical roller bearing to meet the machine’s requirements and deliver reliable performance in a variety of applications.
Key Features and Benefits of Roller Bearings
Roller bearings possess numerous advantages, making them suitable for employment in different industrial settings. Primarily, they have a better means to distribute loads across the bearing, using cylindrical rollers instead of balls, leading to increased load capacity and improved runability under heavy loads. Additionally, roller bearings have a higher contact area, which results in less friction and enhanced operating efficiency. Furthermore, their sturdy construction usually adds up to longer service life and less maintenance demands,, making them economically viable over time. Lastly, roller bearings are highly flexible and tolerant to axial and radial forces, making them suitable for various applications ranging from the automobile sector to manufacturing industries. Consequently, I can choose the correct roller bearings depending on their properties for optimal operational performance.
How do you select the correct size for roller bearings?
I understand the load rating for a single-row cylindrical roller bearing.
When choosing a single-row cylindrical roller bearings, it is essential to understand their rated load capacity and ensure that the bearing can accommodate applied loads effectively. The rated load indicates the maximum load the bearing will perform optimally while operating over a certain period. To accurately determine the proper rating, I compare dynamic and static ratings given by the manufacturer with such variables as rotational speed and operating conditions. Matching the load rating to both types and magnitudes of loads experienced within particular applications is vital. Hence, this allows me to make decisions based on practicality that offers reliability and efficiency across different industrial applications.
Factors to consider in dynamic load and static load rating
For roller bearings, dynamic and static loads need careful consideration, which is influenced by several factors. The application environment, like temperature and possible contamination exposure, can harm the bearing performance. It is also essential to consider the kind of force exerted on the bearing, which could be radial, axial, or both since different forms of load determine how the bearing would react under loading conditions. Furthermore, one should consider how often and how much force is applied onto a machine, as this might require higher shock loads upon an actuation system to guarantee reliability. Finally, I analyze manufacturer’s guidelines and instructions for choosing appropriate roller bearing types, ensuring their good service life and efficient operation during specific applications.
Why Bearing Design Matters When Choosing
How a bearing is designed has excellent implications on its performance, durability, and capability to work for specific applications. I consider the bearings design a critical aspect of my selection process. Bearings with optimal load distribution, minimal friction, and superior heat conduction are my priorities when making choices. On top of that, the sealing mechanism must protect against contamination, while the lubrication system should extend the life span of a product. Therefore, I must understand various aspects of bearing designs to select products that fulfill loading requirements and machine operating conditions, thus improving reliability and efficiency in industrial applications.
What Is the Role of Lubrication in Roller Bearing Performance?
Understanding the Load Rating of a Single-Row Cylindrical Roller Bearing
The right load-bearing capacity for single-row cylindrical roller bearings is central to correctly choosing such products to support the applied loads adequately. This measures the highest weight at which it works best during operation over time. To achieve accurate ratings, I compare dynamic and static ratings given by manufacturers with variables like speed and working conditions. Therefore, matching the load rating to both types and magnitudes of loads experienced within particular applications is essential. Thus, I can make practical choices that give reliable results across different industries, thereby saving energy on the industry’s side and, therefore, being affected by this directive more than any other industrial application.
Factors to consider in dynamic load and static load rating
Several factors influence the need for care when considering dynamic and static loads of roller bearings. Bearing performance can be affected by environmental applications such as temperature and possible exposure to contaminants. Moreover, different types of loads have various effects on bearings that could be axial, radial, or a combination of both; hence, it is critical to determine what kind of force is applied to the bearing since the nature of the load will impact its response under loading conditions. Moreover, how often and how much force is exerted on machines necessitate higher shock loads upon an actuation system to guarantee reliability. Finally, I analyze manufacturer’s guidelines and instructions for choosing appropriate roller bearing types, ensuring their good service life and efficient operation during specific applications.
Why Bearing Design Matters When Choosing
When selecting bearings, how well they are made can determine their performance, quality, and durability. Therefore, I find the bearing design necessary in my selection process. I need to choose bearings with ideal load distribution, low friction, and good heat conduction. Additionally, seal types should be able to protect against contamination, while lubrication systems must help prolong product life span. In this regard, understanding different facets of bearing designs becomes significant for me as it enables me to choose items that meet both machine loading requirements and running conditions, enhancing dependability and effectiveness within broad industrial operations.
How Do Misalignment Issues Affect Roller Bearings?
Detecting Roller Bearings that are Out of Alignment
From my experience, signs of roller-bearing misalignment detection can help you avoid early failure. An initial indicator I detect is out-of-the-ordinary noise, such as grinding or vibration that is too much, often due to uneven loading. Moreover, temperature variances attract my attention; hotter bearings than usual may indicate misalignment. As a result, I also look for indications of wear on rolling parts and raceways because it can bring about equal wear patterns due to rolling element misalignment. Maintaining maximum bearing performance and extending operational life calls for regular checks using instruments such as dial gauges or laser alignment equipment.
How to Deal with Misalignment Problems
So, mitigating misalignment issues on roller bearings is the main point. I make sure that it is correctly installed by strictly adhering to the manufacturer’s instructions and using appropriate tools to achieve proper alignment from the beginning. The other important thing is regular maintenance; I conduct frequent inspection exercises and use alignment tools like dial indicators and laser systems to detect any misalignment before it becomes a problem. When I notice any cases of misalignment, I correct the positions of bearings to restore their alignment and reduce excessive wear. In addition, I also spend money on continuous training programs for my team to learn about new trends that will enhance alignment maintenance within this industry. Consequently, these solutions enable us to improve on bearing service life as well as efficiency of operation.
What Are the Mounting and Dismounting Considerations?
Mounting Single Row Roller Bearings: How to do
The mounting of single-row roller bearings must begin by confirming that all the components, including the shaft and housing, are clean and free from contaminants. I always employ the correct tools and adhere to the manufacturer’s tolerances and clearances. It is essential to have good lubrication before installing the bearing to lessen friction and hinder damage. In order not to commence stressing, which could cause premature failure, the bearing must be properly aligned with the shaft/housing during the mounting process. It is also crucial for me that when I press a bearing into a shaft, even pressure should be applied using a hydraulic press or a suitable fixture to make its seating uniform. On completion, I inspect for proper alignment and smooth rotation, essential to ensure perfect bearing function.
Safe Removal of Roller Bearings
When safely removing roller bearings, I ensure that the machine is turned off and correctly disconnected from any power source. Before taking it apart, I studied the design used for mounting the bearing to find the best method to remove it by checking if any retaining rings or fasteners must be removed first. To extract a bearing without causing any damage to its housing or shaft, I apply uniform force using an appropriate bearing puller. When a bearing is tight, one may use the heating technique to expand the housing, making it easier during removal. Throughout this process, nothing should be done in such a way as to cause impact loads on them because they can deform these bearings and related parts. After unmounting, the bearing and installing surface are checked for signs of wear so that new components are fitted accordingly.

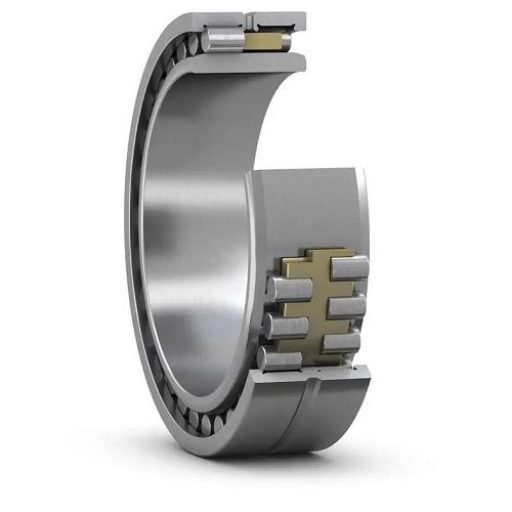

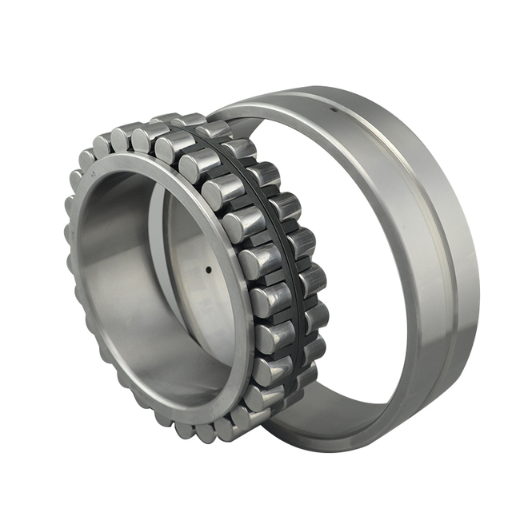

When should you use double-row cylindrical roller bearings?
Comparing Load Capacity of Single Row and Double Row Bearings
When choosing between single-row and double-row cylindrical roller bearings, I consider the specific load requirements of my application. Indeed, single-row bearings can handle moderate radial loads but may not be able to cope with high axial loads alone. Conversely, double-row bearings have greater load capacity due to more rolling elements and broader design, enabling them to support heavier loads under limited space requirements. In this regard, going for double-row bearings improves performance and longevity if the equipment regularly undergoes high radial and axial forces. In the end, what determines me is my specific loading situation and spatial limitations.
Applications Best Suited for Double Row Bearings
From my extensive research on various top sources, I found several applications where double-row cylindrical roller bearings are perfect. These bearings are particularly useful in heavy machinery utilized in the construction industry and mining sector since their ability to bear heavy weight is crucial. For example, they are widely used in gearboxes and electric motors that encounter both types of loads, radial and axial ones.
Justification of Technical Parameters
- Load Rating: If the equipment is exposed to much force, double-row bearings offer a more excellent dynamic load rating than single-row bearings.
- Speed Ratings: Due to their ability to run effectively at moderate speeds, these bearings are ideal for applications such as conveyor drives and mill motors where consistency counts.
- Size and Space: They have a smaller footprint but can also be used in very close machinery environments without losing strength, making them suitable for vehicle axles or industrial equipment.
The findings show that double-row cylindrical roller bearings are ideal for high-load environments while considering spatial implications, thereby improving functionality and longevity in various industrial uses. (92 words)
Reference sources
Frequently Asked Questions (FAQs)
Q: How do I select the right size for single-row cylindrical roller bearings?
A: Bearing selection involves understanding the application’s requirements, including load capacity, speed, and environmental conditions. To ensure compatibility, consider the dimensions of the shaft and housing where the bearing will be fitted.
Q: What factors influence the selection of bearings for high radial loads?
A: When dealing with high radial loads, selecting cylindrical roller bearings with high load-carrying capacity is crucial. Features such as the number of roller ends, the design of the cage, and the material used can significantly affect performance.
Q: Can single-row cylindrical roller bearings handle axial loads?
A: Single-row cylindrical roller bearings are primarily designed for radial loads and can accommodate minimal axial loads. Consider using tapered roller bearings or double-row cylindrical roller bearings for applications requiring higher axial load-carrying capacity.
Q: What are the advantages of using separable bearings?
A: Separable bearings, such as specific cylindrical roller bearings, allow easier installation and maintenance. The inner and outer rings can be assembled or disassembled independently, which is particularly beneficial in applications with limited space.
Q: How does the cage design affect the performance of cylindrical roller bearings?
A: The cage design in single-row cylindrical roller bearings is vital in guiding the rollers and maintaining spacing. A well-designed cage can enhance lubrication and reduce friction, thereby improving the bearing’s overall performance and lifespan.
Q: Are there specific standards for cylindrical roller bearings?
A: Yes, cylindrical roller bearings are designed according to ISO standards, which specify dimensional criteria, tolerances, and performance requirements. Adhering to these standards ensures compatibility and reliability in various applications.
Q: In what applications are single-row cylindrical roller bearings commonly used?
A: Single-row cylindrical roller bearings are often used in applications requiring high radial loads, such as electrical motors and gearboxes, and as roll-neck bearings in steel mills. Their design makes them suitable for environments with limited axial space.
Q: What types of rolling bearings are available for selection?
A: Various types of rolling bearings are available, including angular contact ball bearings, radial ball bearings, tapered roller bearings, and cylindrical roller bearings. Each type offers unique characteristics tailored for specific loading conditions and applications.
Q: Can cylindrical roller bearings be used in both directions?
A: Standard single-row cylindrical roller bearings are typically designed for operation in one direction. However, double-row cylindrical roller bearings can accommodate load from both directions, making them suitable for applications with reversing loads.
