Many engineering applications rely on single-row roller bearings as pivotal parts that enhance their load-carrying capacity and operational efficiency. This article explores different applications of such bearings in advanced industrial settings ranging from automotive and aerospace to heavy machinery. The blog will, therefore, delve into these advantages, including reduced friction, improved performance under extreme conditions, and an increased equipment life cycle. This piece discusses how single-row roller bearings enhance productivity and reliability in demanding environments by analyzing particular instances and technology developments.
What are the Benefits of Using Single Row Roller Bearings?
How Do Single Row Roller Bearings Handle Radial and Axial Loads?
Radial loads act perpendicular to the shaft, and single-row roller bearings can efficiently handle such loads with their cylindrical roller design, which provides an even distribution of load across the bearing surface, hence minimizing contact stress and enhancing load capacity. Nevertheless, these types of bearings have been designed with other related features to accommodate axial loads conducted parallel to its axis, as manifested in a ribbed design on one or both sides of the bearing. This feature enhances stability and maintains alignment even in high axial forces, making them versatile. They can be used in any application requiring either radial or axial loading.
What is the Unique about Single Row Deep Groove Ball Bearings?

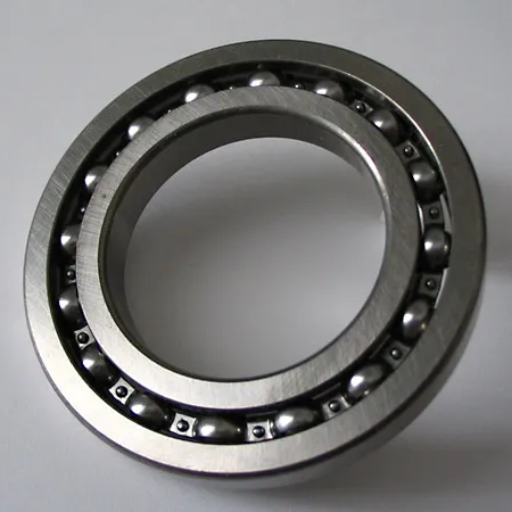

Single-row deep groove ball bearings are set apart by their simplicity yet effectiveness in design, which allows them to support both radial and axial loads compactly. They have a deep raceway that permits increased load-carrying capacity and the ability to tolerate specific misalignments. The contact angle is one of the significant technical parameters; generally, they have an angular contact angle of up to 45°, bringing about high efficiency under varying loading conditions. Moreover, an essential internal clearance is usually set as C0–C3, depending on operational requirements for optimal performance.
Furthermore, the material selection is essential because most deep groove ball bearings use high-carbon chrome steel (e.g., AISI 52100) due to its improved strength and reduced wear-outs. Also, lubrication types are vital because grease or oil can be used depending on the application requirements, affecting these bearings’ life span and maintenance. In simple terms, this combination has made single-row deep groove ball bearings versatile; hence, they find applications in different areas, including but not limited to the automotive industry and industrial machinery.
Which Bearing Performance is Affected by Lubrication Techniques?
In my experience, lubrication techniques significantly affect the performance of bearings and their lifespan. Proper lubrication makes the bearing less resistant and causes less friction, enhancing smooth running and avoiding overheating. For example, an adequate selection of lubricant types, such as oil or grease, helps form a protective shield that prevents dirty bearing surfaces. Moreover, having the right time for greasing is important since over-greasing leads to high operating temperature, and under-greasing may increase wear, failing at an early stage. In conclusion, selecting the correct viscosity of the lubricant, how it is applied, and its maintenance can significantly influence how well a bearing performs and lasts.
What are the Different Types of Ball Bearings Used in Industrial Applications?
Deep Groove Ball Bearings vs. Angular Contact Ball Bearings: What’s the Difference?
According to my understanding, what distinguishes deep groove ball bearings from angular ones is their design and the kind of loads they are meant for. In terms of performance, deep-grooved ball bearings can accommodate axial and radial loads in both directions, making them more versatile than any other type of bearing today. Conversely, angular contact ball bearings are designed to handle heavier axial loads and, therefore, find applications where precision and speed are necessary, such as machine tool spindles. Moreover, compared to deep-grooved ball bearings, these types can be installed only in precise alignment with the raceway at a specific angle. That is why it has to be done with care to make maximum efficiency out of them.
When Should You Use Taper Roller Bearings vs. Cylindrical Roller Bearings?
While deciding between taper and cylindrical roller bearings, I realized that the choice largely depends on the nature of the loads and applications involved. The taper roller bearings’ design enables their rollers to contact the raceway at an angle, making them ideal for applications requiring both radial and axial load bearing capacity. This allows the distribution of load over a larger area through this angle; hence, in such cases, taper roller bearings are most appropriate, like car wheel hubs or gearboxes, where combined loading is joint.

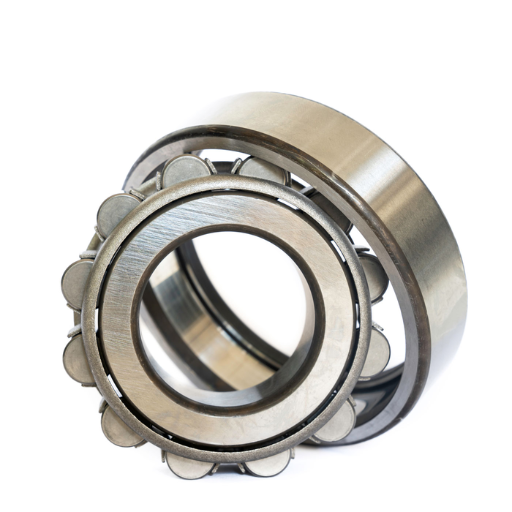

Conversely, cylindrical roller bearings excel in applications that demand high radial load capacity and speed but minimal axial loads. These bearings are particularly effective in applications like electric motors and general machinery due to their more straightforward design, which features rollers that make line contact with the raceway, allowing for more excellent resistance to deformation under heavy radial loads.
Technical Parameters:
- Taper Roller Bearings:
- Load Capacity: High combined radial and axial loads.
- Design: Rollers positioned at an angle.
- Applications: Automotive wheel hubs, gearboxes.
- Cylindrical Roller Bearings:
- Load Capacity: High radial loads, low axial loads.
- Design: Rollers arranged to provide line contact
- Applicants: electric engines, usual machines.
In the end, the choice may be influenced by factors such as specific load conditions, operational speed, and alignment prerequisites that ensure performance and durability in a particular application.
Features of Needle Roller Bearings
Needle roller bearings are characterized by long, thin cylindrical rollers that enable compact bearing configuration. This design allows them to have high load-carrying capacity for their size, making them suitable for applications where space is limited. They also provide low friction, enabling them to work even well in high-speed operation conditions. Moreover, radial and axial loads can be accommodated, though they tend to perform better when dealing with radial loads. Their versatility and effectiveness make them appropriate for use in the automobile industry, industrial devices, and other mechanical systems.
How to Choose the Right Bearing for Your Application?
What Factors Affect the Carrying Capacity of the Bearings?
When I think about bearings’ carrying capacity, I consider several issues. First and foremost, the grade of the material used is vital to achieving this performance; bearings produced from high-quality steel or advanced composites are more resistant to loads and last longer. Second, it is essential to note that bearing design and geometry are key; tapered bearings are better suited for handling mixed loads due to their contact angle than ball bearings. Thirdly, operating conditions such as temperature, lubricant quality, and the presence of contaminants are also critical. Optimal lubrication reduces friction to a great extent but also increases its load-carrying ability. Lastly, proper installation and alignment are crucial since misalignment results in uneven load distribution and premature wear out. Balancing these factors is essential in ensuring that the target selection of bearings can guarantee the utmost efficiency and dependability within specified applications.
Which Type of Bearing is Appropriate for a Specific Machinery?
When determining which type of bearing will be appropriate for specific machinery, I begin by considering the load requirements such as whether the application will mainly face radial or axial loads. After this, I also consider other factors, which include extreme temperatures, moisture exposure, and the existence of contaminants. Furthermore, fast operating speeds are considered since high-speed applications may require special bearings like deep groove ball bearings or angular contact bearings that can work efficiently under such conditions. Furthermore, I believe space available and dimensional restrictions that can limit my options. Lastly, endurance and maintenance cost takes precedence where such components are selected for durability with low upkeep requirements. This way through collecting this information together in my mind; it brings me to the most suitable bearing that meets performance criteria of machinery asked.
What Role Does Misalignment Play in Bearing Selection?
Misalignment is a paramount issue that I should consider before selecting bearings because it can considerably affect their performance and durability. The bearing surfaces have irregular load distribution when the shaft and housing are out of line. From this, friction may arise, heat may be generated, and eventually, the bearing could fail. I often analyze this machinery’s layout and working conditions to assess its potential for misalignment. I mitigate the adverse effects of poor alignment by picking bearings that can accommodate some misalignment, like self-aligning ball bearings. As such, effective operation, as well as prolongation of the useful life of the system, necessitates comprehending specific applications and their tolerance to imperfections in bearing assembly.
What are the Common Issues Faced with Single Row Roller Bearings?
How Can Friction Impact the Operating Life of the Bearings?
Wear, and heat generation in the bearing assembly are significantly influenced by friction. Once it increases, temperatures rise, leading to degradation of lubricants and early wearing out of bearing surfaces. In my experience, the correct selection of lubricant type and proper lubrication technique can reduce friction considerably and improve bearing life. I also consider material composition and design for specific bearings because some materials can endure better at high friction levels than others. Additionally, monitoring operating conditions and implementing preventive maintenance procedures can help to minimize the effects of friction, thus increasing reliability as well as durability of bearings in general.
What are the Indications of Bearing Wear or Failure?
In my experience, some critical signs indicate bearings are wearing out or are at risk of failing. One such sign is an increase in noise during operation, for example, from grinding or humming, which may imply problems with rolling elements or loss of lubricant. I also watch out for the vibration levels; high vibrations can mean imbalances occur due to bearing deterioration and consequent misalignment. Furthermore, I consider physical signs like discoloration, pitting, or abnormal motion in the bearing assembly as all these shows wear off. For this reason, I need to undertake regular inspections and monitoring through vibration analysis and thermal imaging to notice failures early enough before they cause extensive machine downtime.
Proper Lubrication of Single Row Roller Bearings
For proper lubrication of single-row roller bearings, I use the appropriate lubricant specified for the particular bearing application since it can significantly impact performance. To accomplish this, I must clean the roller thoroughly without damaging the rolling elements, such as the metal balls. After this, I put a uniform amount of lubricant on the roller and ensure it goes between the roller and race without overfeeding, which causes overheating. The frequency for oiling should be based on temperature and pressure adjustments, where, upon checking, I can do away with frequent changes. In addition, checking contamination signs or low levels is essential while using a lubricating system during offload because they contribute greatly to maintaining optimal conditions of bearing, thus prolonging their service life.
What Innovations Are Shaping the Future of Roller Bearings?
What are the New Materials Used for Bearing Manufacturing?
In my investigation of cutting-edge bearing elements, I have found that several advanced composites and alloys are increasingly being used apart from conventional steel. Some significant developments have included the application of ceramics like silicon nitride that offer better hardness, low weight, and wear resistance properties. For example, these ceramic bearings can operate at higher temperatures and with less lubrication due to their low friction characteristics.
Moreover, polymer materials such as PEEK (polyether ether ketone) are attracting attention due to their corrosion resistance and lightweight nature. These PEEK bearings exhibit excellent mechanical characteristics and chemical resistance, making them suitable for severe environments.
Technical parameters supporting these choices include:
- Fatigue Strength: Ceramic materials typically possess a fatigue strength of greater than 1,000 MPa, enabling them to last long in demanding applications.
- Operating Temperature: While traditional steel bearings effectively work up to 350 °C, silicon nitride bearings can withstand temperatures up to 1 000 °C.
- Density: PEEK’s density is approximately 1.3 g/cm³, compared with steel’s, which is around 7.85 g/cm³. Thus, a remarkable weight reduction can increase overall system efficiency.
Incorporating smarter materials in such designs improves performance and ensures the sustainability of bearing technology by minimizing the need for regular replacements and downtime.
Can you tell me about how technology is improving industrial bearings?
While investigating how technology makes industrial bearings perform better, I noticed that design innovation and material science have vital roles. This includes employing computer modeling and simulation to optimize a specific application about load distribution and minimize stress concentration. This eases predictive maintenance through real-time monitoring of the operation and wears through installed smart sensors, which then maximize the life cycle while minimizing downtime. Moreover, upgraded lubrication systems and surface treatments like coatings reduce friction as well as erosion and thus prolong the lifespan of bearings. As a result, these technical milestones are benchmarking greater effectiveness and dependability concerning the industry.
Trends in Bearing Design for Optimal Efficiency?
Current trends in bearing design for maximum efficiency have shown me several essential developments. This enables maintenance, reduces downtime,, and allows easier assembly and disassembly through a modular design approach. Another latest trend is using hybrid materials that combine metals with advanced polymers to enhance durability while reducing weight. In addition, energy-efficient bearings with advanced lubrication systems that reduce friction are becoming increasingly common as they lower operational costs and energy consumption drastically. Furthermore, with the advent of IoT technology, predictive analytics is making real-time monitoring possible and optimizing bearing performance. These trends lead to reliability improvement and enhanced business process efficiency across industries.
Reference sources
Frequently Asked Questions (FAQs)
Q: What are the advantages of using advanced applications of single-row roller bearings?
A: Advanced applications of single-row roller bearings offer high load capacity, reduced friction, and the ability to handle high speeds, making them suitable for various industrial equipment.
Q: How does a cage in single-row roller bearings function?
A: The cage in single-row roller bearings keeps the rolling elements evenly spaced, reducing friction and preventing contact between the rolling elements, which enhances overall performance and longevity.
Q: What bearing types are commonly associated with high-speed applications?
A: For high-speed applications, bearings with brass cages and spherical roller bearings are often preferred due to their ability to reduce heat generation and maintain optimal performance.
Q: Can single-row roller bearings support loads in both directions?
A: No, single-row roller bearings are designed primarily for radial loads in one direction. For applications requiring support in both directions, double-row bearings or spherical roller bearings are more suitable.
Q: What are the differences between single-row and double-row bearings?
A: Single-row bearings typically consist of one row of rolling elements, while double-row bearings have two rows, which allows them to carry higher loads and provide greater stability and stiffness in applications.
Q: In what applications are spherical roller bearings most effectively used?
A: Spherical roller bearings are commonly used in applications where misalignment occurs, as their design allows for self-alignment and accommodates both radial and axial loads.
Q: Are there different types of bearings suitable for specific industrial equipment?
A: Yes, various bearing types are available, such as radial bearings, ball bearings, and cylindrical bearings, each designed to meet the specific requirements of industrial equipment.
Q: What materials are single-row roller bearings typically made from?
A: Single-row roller bearings are typically made from high-quality steel or ceramic materials, which enhance their durability and performance under various operating conditions.
Q: How do the inner and outer ring designs affect the performance of roller bearings?
A: The design and quality of the inner and outer rings directly influence the load capacity, friction levels, and overall performance of roller bearings, ensuring they operate effectively under specific conditions.
Q: Why are open bearings preferred in some applications?
A: Open bearings are preferred in applications where lubrication is easily accessible or where the operating environment does not expose the bearings to contaminants, allowing for effective maintenance and performance.
